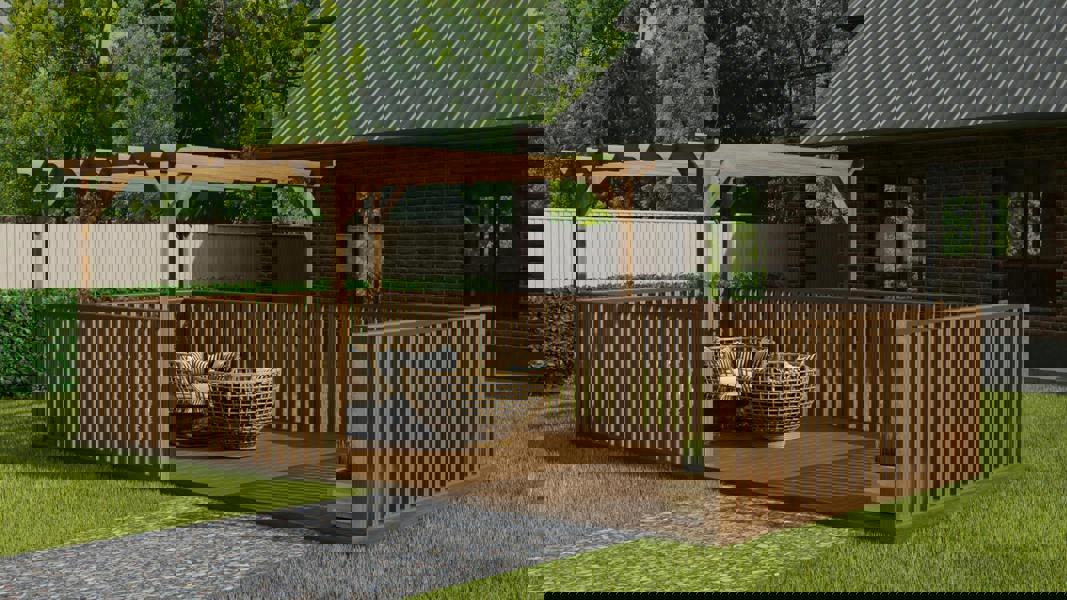

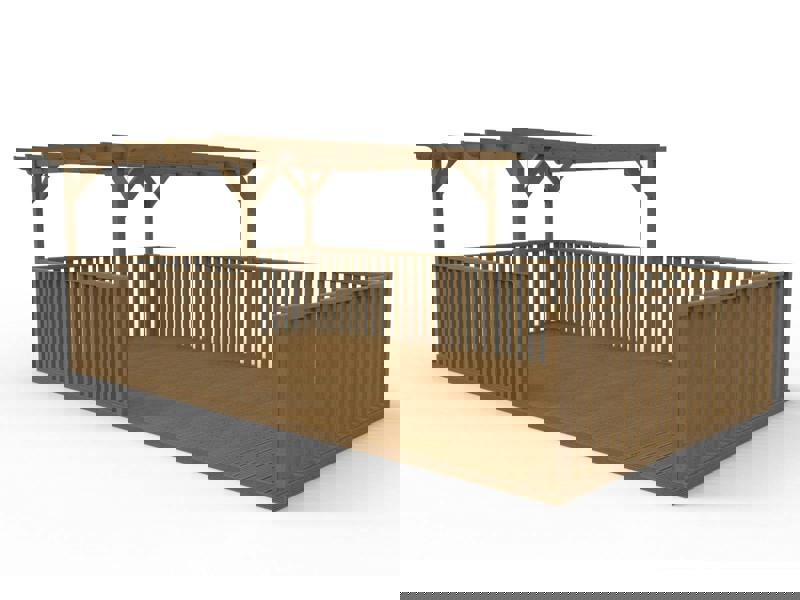

Arbor Garden Solutions Rectangular Pergola and Decking Kit With Balustrades V.10

Create a defined outdoor area with the Arbor Garden Solutions Rectangular Pergola and Decking Kit With Balustrades V.10, combining a pergola structure with a decking/base area and balustrades. Supplied with pre-cut components and step-by-step instructions, it is designed for a straightforward build, helping you form a level platform that links spaces in the garden or patio.

Posts are supplied at 2.7m and can be trimmed if required for a free-standing structure. The listed rectangular size reflects the total decking/base area rather than the pergola frame; the pergola is designed to span the full width and half the depth of the base, with a standard 45cm overhang on all sides. When planning layout and furniture placement, refer to these internal dimensions.

Key features

• Rectangular pergola and decking kit with balustrades
• Pre-cut components with step-by-step instructions provided
• Posts supplied at 2.7m and can be trimmed if required
• Decking boards: 32mm x 125mm grooved, green treated, FSC
• Rafters: CLS C16 Scandinavian Pine 2x6 (38mm x 138mm)
• Braces: CLS C16 Scandinavian Pine 2x4 (38mm x 89mm)
• Engineered uprights: 94x94 redwood ‘A’ quality, kiln dried 12/14%, laminated PAR, UC4, 70% PEFC certified
• All necessary hardware for assembly included

Dimensions

• Posts supplied: 2.7m
• Rafters: 38mm x 138mm
• Braces: 38mm x 89mm
• Engineered uprights: 94x94
• Decking boards: 32mm x 125mm
• Standard overhang: 45cm on all sides

What's included

• All necessary hardware for assembly

How to assemble

• Prepare the area by ensuring a flat, level surface
• Assemble the decking frame by securing the joists, beams, and decking planks, using the provided spacer block for spacing
• Install the pergola structure by positioning the upright posts, attaching runners and rafters, and securing via pre-drilled holes using the included fixings
• Attach the pre-assembled balustrades, ensuring they are aligned and securely fixed
• Tools required: electric screwdriver, drill, socket wrench, spirit level, ladder
• Assembly requires a 10mm socket and screwdriver; a battery-operated model is recommended

Treatment & maintenance

Please note that due to the inherent characteristics of natural timber, product colours may vary from those depicted.

• Sweep regularly to remove leaves, dirt, and debris
• Every few months, wash using mild soap and water with a soft-bristle brush
• Avoid using pressure washers at high settings
• Inspect at least once a year for loose screws, nails, or cracked boards; tighten fasteners and replace damaged boards as needed
• Apply a wood sealant or stain every 1-3 years; if water sprinkled on the boards absorbs quickly, apply a new coat of sealant
• Use rubber or felt pads under furniture legs to help prevent scratches
• Keep planters elevated with stands to allow air circulation and help prevent trapped moisture
• Choose breathable outdoor rugs that do not retain moisture
• In winter, clear snow with a plastic shovel and avoid harsh de-icing salts
• During summer, consider using a shade cover or pergola over the deck to reduce sun exposure

Support & warranty

Lifetime warranty covers manufacturing faults.

Please note

The item will not be pre-painted or treated unless this is explicitly stated in the description or selected options.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Natural timber products may vary in colour and grain from images shown.
