Arbor Garden Solutions Rectangular Pergola And Decking Kit With Balustrade V.7

Create a defined outdoor area with the Arbor Garden Solutions Rectangular Pergola and Decking Kit with Balustrade V.7. Designed as a coordinated pergola and decking solution, it’s supplied with pre-cut components and step-by-step instructions to support a straightforward set-up. The kit is intended to provide a level walking surface and a structured layout for outdoor use.

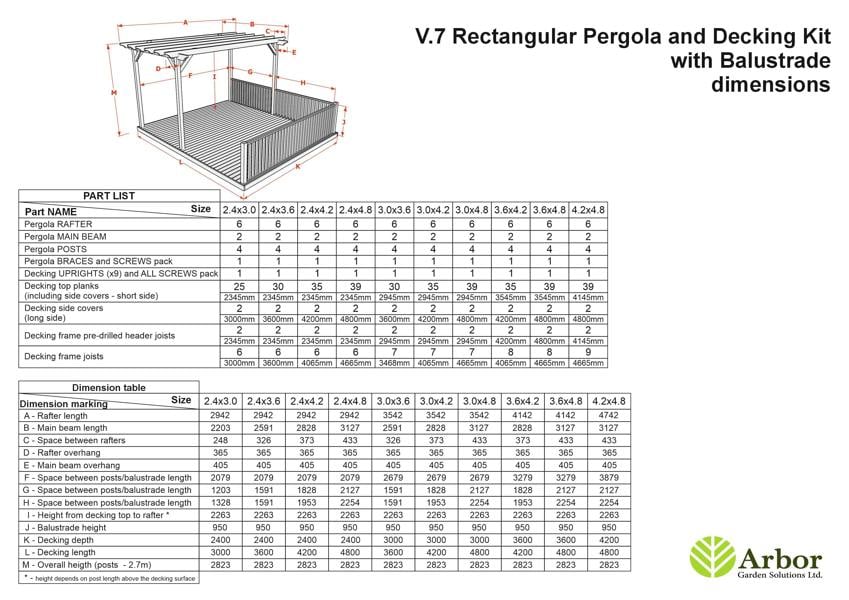

Rectangular sizing is based on the total decking/base area rather than the pergola frame. The pergola is designed to span the full width and half the depth of the base, with a standard 45cm overhang on all sides (front/back and sides). For a listed size example of 2.4m x 3.0m, the structural post footprint would be approximately 2.4m x 1.5m.

Key features

• Pre-cut components with step-by-step instructions
• Posts supplied at 2.7m and can be trimmed for a free-standing structure
• Decking boards: 32mm x 125mm grooved, green treated, FSC
• Rafters in CLS C16 Scandinavian Pine 2x6 (38mm x 138mm)
• Braces in CLS C16 Scandinavian Pine 2x4 (38mm x 89mm)
• Engineered uprights in 94 x 94 redwood ‘A’ quality, kiln dried 12/14%, laminated PAR, UC4, 70% PEFC certified
• Hardware required for assembly included

How to assemble

• Prepare the area by ensuring a flat, level surface
• Assemble the decking frame by securing joists, beams and decking planks, using the provided spacer block for spacing
• Install the pergola structure by positioning upright posts, attaching runners and rafters, and securing via pre-drilled holes using the included fixings
• Attach the pre-assembled balustrades, aligning and fixing securely
• Tools required: electric screwdriver, drill, socket wrench, spirit level and ladder
• Assembly requires a 10mm socket and screwdriver; a battery-operated model is recommended

Treatment & maintenance

Please note that due to the inherent characteristics of natural timber, product colours may vary from those depicted.

• Sweep regularly to remove leaves, dirt and debris
• Every few months, wash with mild soap and water using a soft-bristle brush
• Inspect at least once a year for loose screws, nails or cracked boards; tighten fasteners and replace damaged boards if needed
• Apply a wood sealant or stain every 1–3 years; if water sprinkled on the boards absorbs quickly, apply a new coat
• Avoid pressure washers at high settings, harsh de-icing salts, and use a plastic shovel for snow clearance

Support & warranty

Lifetime warranty covers manufacturing faults.

Please note

The item will not be pre-painted or treated unless this is explicitly stated in the description or selected options.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Natural timber products may vary in colour and grain from images shown.

Rackhams Reference : G1HGG8CHIP
