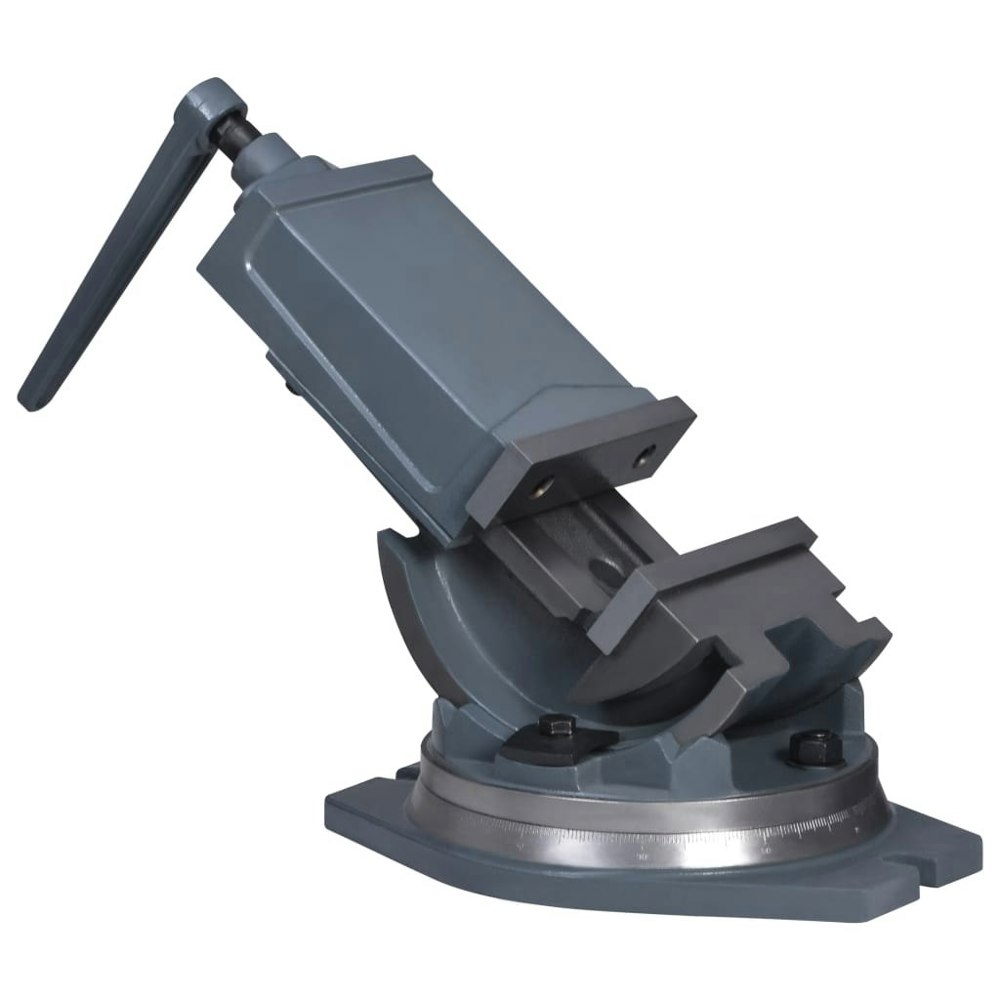

Berkfield 2-Axis Tilting Vice 160 mm

Built for accurate workshop clamping, the Berkfield 2-Axis Tilting Vice combines a rotating and tilting mechanism with a 160 mm jaw width for controlled positioning during machining and fabrication tasks. Its cast iron construction and solid thread provide stable, consistent clamping, while the adjustable span allows the vice to be set to suit the workpiece.

Hardened jaws support demanding drilling and clamping work, and the 2-axis mounting with fine scale division allows adjustment from 0 - 90 degrees, secured by a clamping lever. A stable base completes the design for bench mounting, making it suitable for drilling, welding, milling, cutting and grinding where precise setup is required.

Key features

• Cast iron construction
• Tilting and rotating 2-axis mounting
• 160 mm jaw width
• 127 mm jaw opening
• 50 mm clamping depth
• Fine scale division

Specifications

• Colour: Grey
• Angle: 0 - 90 degrees
• Mounting distance approx. 230 mm

Sizing

• Base size: 320 x 225 mm (L x W)
• Height adjustable from 200 mm to 430 mm
