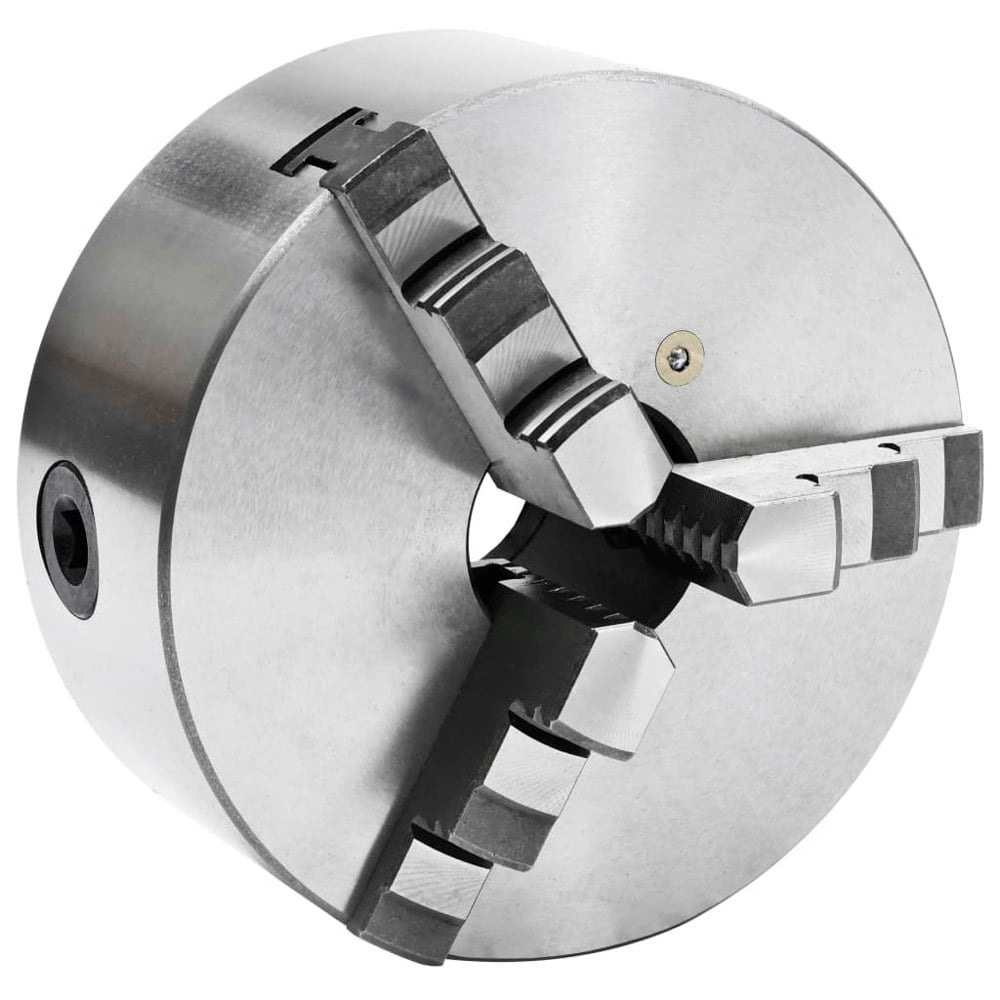

Berkfield 3 Jaw Self-Centering Lathe Chuck 160 mm Steel

Built for accurate holding across a range of workpiece shapes, the Berkfield 3 Jaw Self-Centering Lathe Chuck is made from HT300 steel with a compact 160 mm diameter body. The self-centring 3 jaw design supports consistent clamping on solid or hollow circular material, as well as triangular and hexagonal material.

Its steel construction offers high hardness and wear resistance, while the straightforward layout keeps operation simple in workshop use. This chuck suits machining tasks where secure, precise gripping is required across different material profiles.

Key features

• Self-centring 3 jaw lathe chuck
• HT300 steel construction
• Silver and black finish
• Clamping range with internal jaw: 3 - 55 mm
• Clamping range with external jaw: 55 - 145 mm

Specifications

• Number of jaw: 3
• Passage: 45 mm
• Cylindrical inner passage: 125 mm
• Maximum speed: 2500 R/min
• 3 x M8 holes
• Run out: 0. 08
• Net weight: 8. 2 kg

Sizing

• Outside diameter: 160 mm
• Total height: 65 mm

What's included

• 1 x chuck key
• 3 x jaw
