Berkfield Petrol Engine Setting Locking Kit for 1.6 BMW N40/N45/N45T Chain Drive

For BMW 1.6 N40, N45 and N45T petrol engines, the Berkfield petrol engine setting locking kit provides the core tools needed for timing work and Vanos alignment on the inlet and exhaust camshafts. It is suited to workshop tasks including setting and adjusting camshaft timing, timing chain exchange, cylinder head gasket changes, camshaft assembly and disassembly, and biasing the chain tensioner.

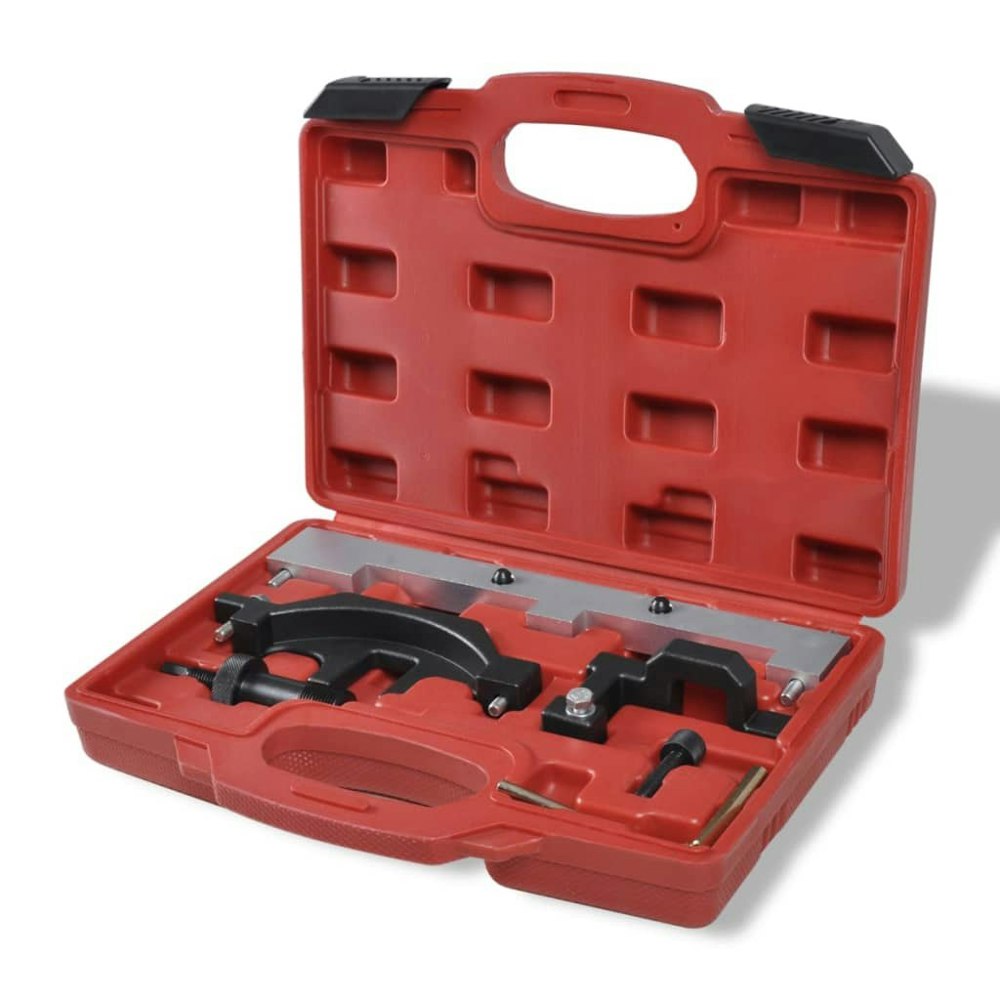

Built for daily workshop use, this 6-piece kit is supplied in a blow moulded case to keep the tools organised for storage and transport. The set includes model-specific timing and locking components referenced against OEM numbers for BMW applications.

Key features

• Suitable for setting and adjusting the timing on 1.6 BMW N40, N45, N45T petrol engines
• Aligns the Vanos units on the inlet and exhaust camshafts
• 6-piece kit
• Supplied in blow moulded case
• Dimension: 33 x 31 x 23.5 cm

What's included

• Vanos alignment plate to use as OEM 117260
• Camshaft setting plate (inlet) to use as OEM 117 251 (117250)
• Camshaft setting plate (exhaust) to use as OEM 117252
• Timing chain tensioner pre-load tool to use as OEM 119340/119341
• Flywheel locking pin to use as OEM 119190
• Camshaft setting plate securing screw to use as OEM 117253

Sizing

33 x 31 x 23.5 cm

Vehicle compatibility

• BMW 116i, E81 and E87
• BMW 316i, E46 and E9
• BMW 316Ci, E46
• BMW 316ti, E46
• with engine code N40, N45, N45T

About this product

Who is it for

Suited to workshop users working on BMW 116i, 316i, 316Ci and 316ti models with engine code N40, N45 or N45T.

When and where to use it

Suitable for engine timing and Vanos alignment work during timing chain replacement, cylinder head gasket changes, and camshaft assembly or disassembly in workshop use.
