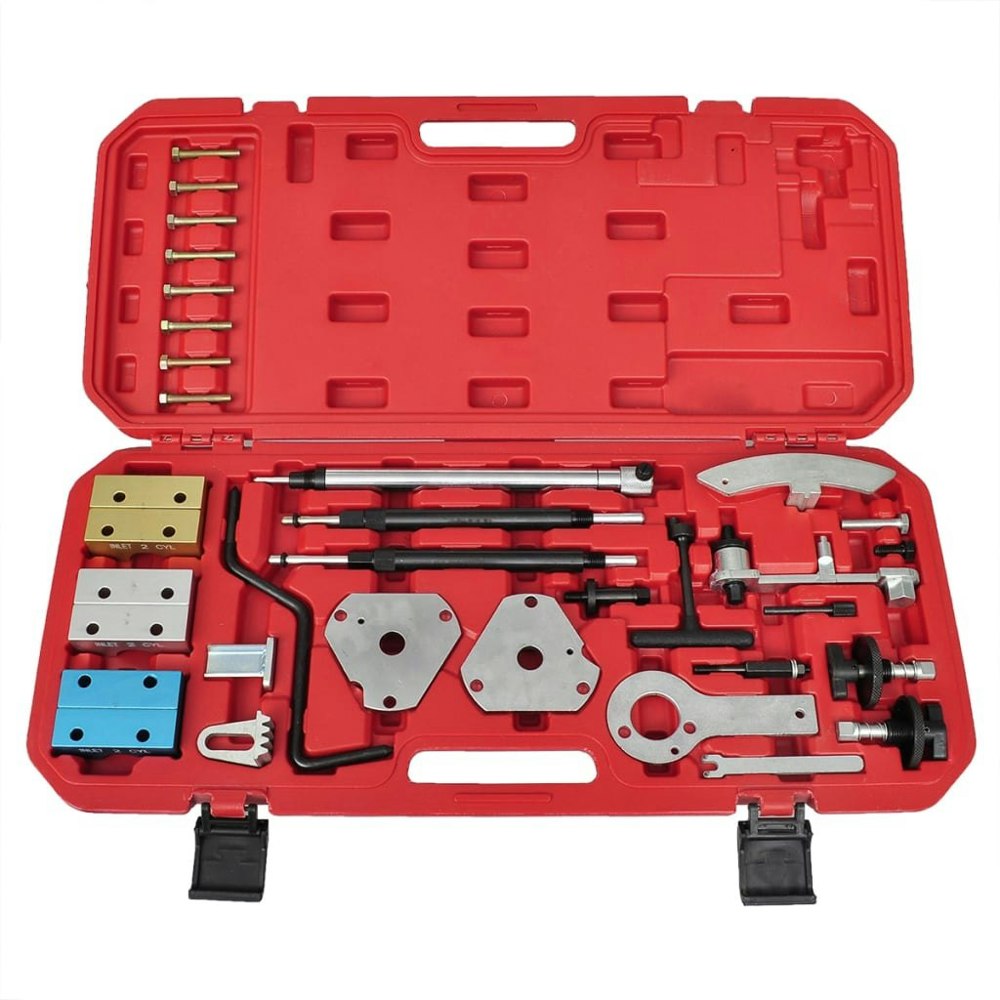

Berkfield Engine timing tool set for Fiat

The Berkfield engine timing tool set covers adjustment, locking and removal work on the camshaft, flywheel, injection pump shaft and crankshaft across a wide range of Alfa Romeo, Fiat and Lancia petrol and diesel engines. Supplied in a blow moulded case, it is arranged for storage and transport between workshop tasks.

Compatibility includes Twin Spark, V6, 16V, 20V, Turbo, D, TD and JTD engine applications across selected Alfa Romeo, Fiat and Lancia vehicles from year ranges stated below. The set also includes locking pins and screws in specified sizes for timing and locking procedures.

Key features

• For adjusting, locking and removing the camshaft, flywheel, injection pump shaft and crankshaft
• Suitable for selected Alfa Romeo, Fiat and Lancia petrol and diesel engines
• Supplied in a blow moulded case for storage and transportation
• Locking pin: 65 mm
• Screw M: 8 x 45 mm
• Screw M: 7 x 18.8 mm
• Screw M: 6 x 45 mm
• Locking pin dia.: 5.8 x 59 mm

Vehicle compatibility

• Alfa Romeo 145, 146, 147, 155 and 156, 1.4 and 1.6 Twin Spark, from 1996
• Alfa Romeo 145, 146, 155, 156, Spider and GTV 1.8 Twin Spark from 1996, engine codes 322.01, 335.03, 671.06, 676.01, 372.03 and 321.04
• Alfa Romeo 145, 146, 147, 155, 156, Spider and GTV 2.0 Twin Spark, from year 1995, engine codes 323.01, 672.04, 162.01 and 323.10
• Alfa Romeo 155 2.5i, from year 1992 to 1997, engine codes 673.01
• Alfa Romeo 155 2.5 V6 from 1997, engine codes 324.01
• Fiat Punto, Brava, Bravo and Stilo 1.2 16V, manufactured in 1997, engine identifiers 176B9.000, 182B2.000 and 188A5.000
• Fiat Brava Bravo 1.4 12V, from year 1995 to 1998, engine codes 182 A3.000, 182 A5.000
• Fiat Brava Bravo 1.6 16V, 1995, or Fiat Stilo 1.6 16V from 2001, engine codes 182 A4.000, 182 A6.000, 182 B6.000
• Fiat Brava Bravo 1.8 16V, 1995, engine codes 182 A2.000
• Fiat Marea, Marea Weekend, Multipla 1.6 16V, from 1996, engine codes 182 A4.000, 182 A6.000, 182 B6.00
• Fiat Tipo and Coupe 2.0 16V and 2.0 16V Turbo, from year 1993 to 2001, engine codes 836 A3.000 and 175 A1.000
• Fiat Marea, Marea Weekend and Barchetta Coupe 1.8 16V from 1996, engine codes 182 A2.000
• Fiat Ulysse 2.0 16V from 1998, RFV engine IDs
• Fiat Ulysse 1.8, 2.0 and 2.0 Turbo, from year 1994
• Fiat Ducato 2.0, from year 1994, engine codes LFW, RFU, RFW and RGX
• Fiat Bravo, Marea, Marea Weekend 2.0 20V Coupe, from year 1994 to 2001, engine codes 182 A1.000 and 175 A3.000
• Fiat Bravo, Marea, Multipla and Marea Weekend 1.9D, TD and JTD from 1996, engine codes 182 A7.000 (TD 100), 182 A8.000 (TD 75), 182 B4.000, 185 A6.000, 188 A3.000, 192 A1.000 and 192 A3.000
• Fiat Punto 1.7D, TD and Cat & EGR, from year 1996 to 1997, engine codes 176 B3.000, 176 A3.000, 176 A5.000
• Fiat Tipo, Tempra and Ducato 1.9D and TD, from year 1987 to 1998, engine codes 149 B1.000, 160 A6.000, 160 A7.000, 160 D1.000, 154 B.000, 230 A2.000 and 230 A4.000
• Fiat Ulysse, Scudo and Ducato 1.9D and TD, from year 1994, engine codes D8B, D9B, DHX and DJY
• Fiat Ulysse 2.1TD 12V, from 1996
• Fiat Marea and Marea Weekend 2.4JTD, from 1996, engine codes 182 A7.000 (TD 100), 182 A8.000 (TD 75), 182 B4.000, 185 A6.000, 188 A3.000, 192 A1.000 and 192 A3.000
• Lancia Ypsillon 1.4 12V, from year 1996 to 1999, engine codes 182 A3.000, 182 A5.000

What's included

• Blow moulded case
• Locking pin: 65 mm
• Screw M: 8 x 45 mm
• Screw M: 7 x 18.8 mm
• Screw M: 6 x 45 mm
• Locking pin dia.: 5.8 x 59 mm

About this product

Who is it for

Suited to workshop users carrying out engine timing work on specified Alfa Romeo, Fiat and Lancia petrol and diesel engines.

When and where to use it

Suitable for timing adjustment and locking procedures during engine service and repair work.
