Berkfield 8 pcs Engine Timing Tools for VAG TSI and TFSI Engines

For professional engine repair work, the Berkfield 8 pcs engine timing tool set supports tasks including camshaft installation and removal, timing chain replacement, camshaft timing checks and adjustment, and cylinder head gasket renewal. It is suitable for selected VAG TSI and FSI engines, with OEM-reference tools for specific timing and locking procedures.

Durable construction makes this set suitable for regular workshop use, while the blow moulded carry case keeps the components organised for transport and storage. The set also includes a dial gauge with 0.01 mm accuracy and an indicator holder for setting top dead centre.

Key features

• Durable construction
• Supplied in a blow moulded carry case for transport and storage
• Dial gauge with 0.01 mm accuracy
• Circular analogue dial display
• Dial gauge diameter 41 mm
• Indicator holder with 274 mm total length

Specifications

• Cam lock to be used as OEM T10414
• Crankshaft sprocket locking pin to be used as OEM T10341
• Camshaft fixing tool to be used, such as OEM T10171
• Locking pin to be used as OEM T40011
• Clamping shank, 8 mm long
• Indicator holder outer thread M14 x 1.25 mm
• 2 guide pins with 135 mm length
• 24 mm long male thread M8 x 1.25 mm
• Mutual external hexagon wrench size 6 mm

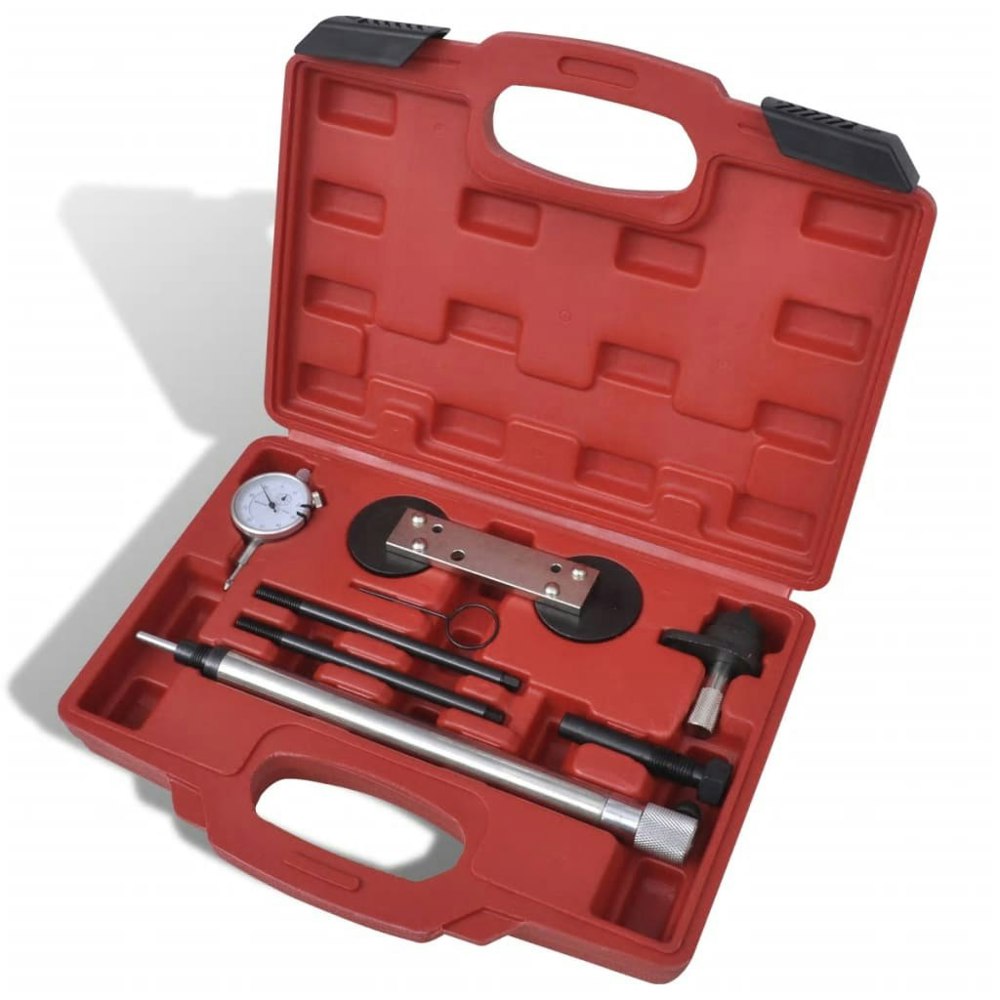

What's included

• Cam lock to be used as OEM T10414
• Crankshaft sprocket locking pin to be used as OEM T10341
• Camshaft fixing tool to be used, such as OEM T10171
• Locking pin to be used as OEM T40011
• Dial gauge
• Clamping shank
• Indicator holder
• 2 guide pins

Sizing

30 x 22 x 6.5 cm (L x W x H)

Vehicle compatibility

• VAG engines 1.2 liter TSI with engine code CBZA, CBZB and CBZC
• Audi A1, A3, A3 Sportback and A3 Cabriolet
• Seat Altea, Altea XL, Ibiza, Ibiza Sport Coupe, Leon and Toledo
• Skoda Fabia, Fabia, Octavia, Rapid, Roomster and Yeti
• VW New Beetle, Caddy, Golf, Golf Plus, Golf Cabriolet, Golf Variant, Jetta, Polo and Touran
• VAG engines 1.4 FSI
• VW Golf 4 and 5 and Polo 9N
• VAG engines 1.6 FSI with engine code AXU, BAG, BKG, BLF, BLN and BLP
• Audi A3, VW Golf, Passat and Touran

About this product

Who is it for

Suited to professional workshop users carrying out engine timing and camshaft service work on selected VAG TSI and FSI engines.

When and where to use it

Suitable for workshop-based engine repairs including timing chain replacement, camshaft timing adjustment and cylinder head gasket renewal.
