Berkfield 6 Piece Engine Timing Tool Kit for BMW N63B44 V8 X5 X6 750 650

For BMW N63B44 V8 engines, the Berkfield 6 Piece Engine Timing Tool Kit provides the components needed to locate and turn the camshaft in the correct TDC position. The set is suitable for BMW models including selected 7 Series, X5, X6, 5 Series and 6 Series applications, with fixtures for timing the VANOS system during assembly.

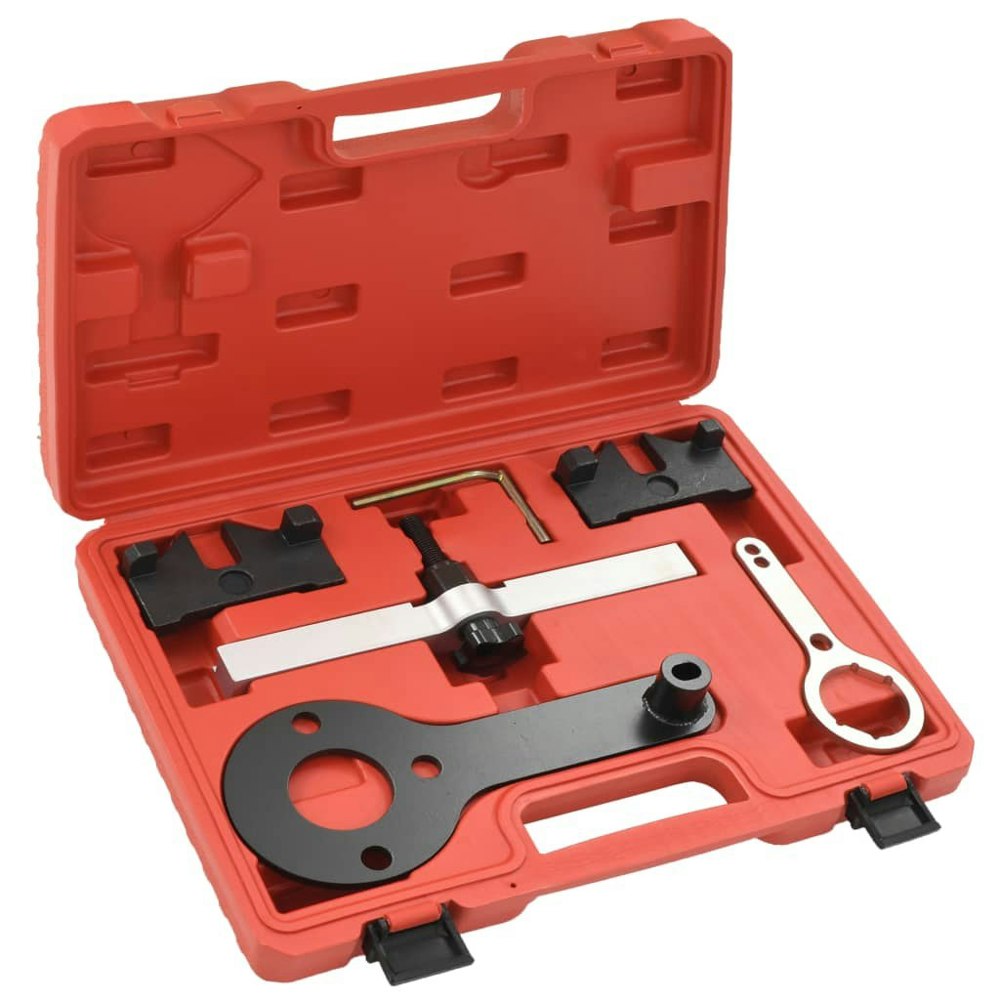

Manufactured from steel, this timing tool set includes 2 camshaft alignment jigs to fix the camshafts in TDC orientation, 1 top dead centre pin to align the flywheel at the TDC position, and 3 VANOS timing tools. All pieces are supplied in a blow-moulded case for organised storage and transport.

Key features

• Steel construction
• Suitable for engine code: N63B44
• Delivered in a blow-moulded case
• 2 camshaft alignment jigs, 1 top dead centre pin and 3 VANOS timing tools

Specifications

• Crankshaft locking tool same as OEM 118570/119190
• Crankshaft central bolt same as OEM 118090
• Cam locking tool same as OEM 119890
• Knurled screw same as OEM 119891
• Pressure bar like OEM 119892
• Ratchet gauge for intake and exhaust camshaft same as OEM 119893
• Spacers like OEM 119894
• Original part numbers and manufacturer numbers are for comparison purposes only

What's included

• 2 x Camshaft alignment jig
• 1 x Top dead centre pin
• 3 x VANOS timing tool

Vehicle compatibility

• BMW F01 / F02: 750i / 750 Li / xDrive (until 2012)
• BMW E70 / E71 / E72: X5 xDrive50i, X6 xDrive50i, X6 ActiveHybrid
• BMW F07: 550i Gran Turismo (until 2011)
• BMW F10 / F11: 550i (until 2011)
• BMW F12 / F13: 650i convertible and coupe (until 2012)

About this product

Who is it for

Suited to users working on BMW models fitted with the N63B44 V8 engine during engine timing and VANOS assembly.

When and where to use it

Used when locating the camshaft and flywheel at the correct TDC position during engine assembly work.
