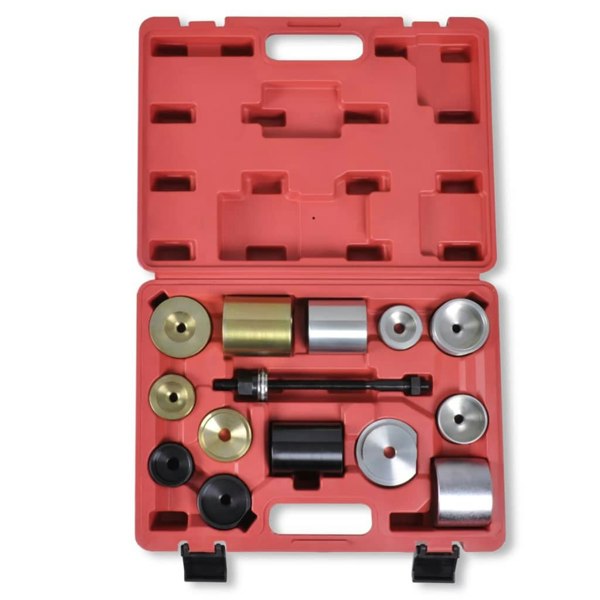

Berkfield Silent Bearing Puller Kit for BMW

For workshop and DIY servicing, the Berkfield silent bearing puller kit for BMW provides a 16-piece set for removing and installing ball joints, bushes and bearings. It is suitable for numerous BMW models from the 1 Series to the 8 Series, with compatibility also stated for selected Z4 and Mini Cooper S models.

Built for daily workshop use and categorised as industrial grade, the set includes a feed rod, spindle nut, compression nut with axial groove bearing, support sleeves, pressure sleeves, spacer sleeves and matching pressure pieces. All tools are organised in a blow-moulded case for storage and transport, and the kit allows the renewing of rubber bushings in the suspension.

Key features

• 16-piece set
• Suitable for removing and installing ball joints, bushes and bearings
• Allows the renewing of rubber bushings in the suspension
• Industrial grade

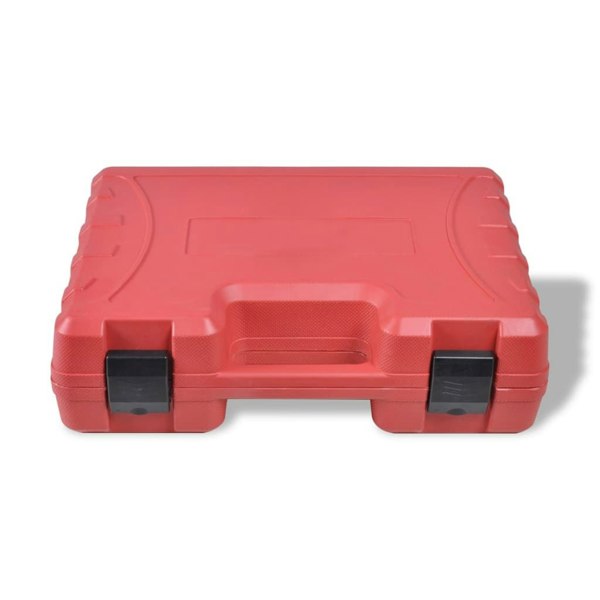

• Blow-moulded case for storage and transportation

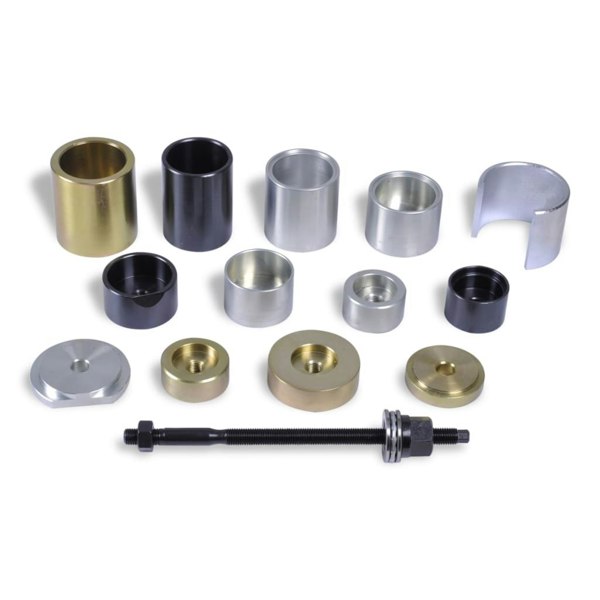

What's included

• Feed rod
• Spindle nut
• Compression nut with axial groove bearing
• Support sleeve with side slits
• Support plate
• Pull-out pressure sleeve
• Intake pressure sleeve
• Pull-out spacer sleeve
• Pull sleeve
• Intake spacer sleeve
• Spacer sleeve
• Pressure element
• Sleeve
• Pull-out pressure piece
• Intake pressure piece
• Draw plate
• Moulded case
• Various print pieces, stem and pods

Sizing

• Feed rod: 225 mm length, M12 x 1.5 mm thread size, 8 mm hex drive wrench length
• Spindle nut: M12 x 1.5 mm thread size, 19 mm hexagonal drive wrench length
• Compression nut with axial groove bearing: M12 x 1.5 mm internal thread size, 24 mm hexagonal drive wrench length
• Support sleeve: 70 mm outer diameter, 57.5 mm inner diameter
• Support plate: 12.5 mm hole diameter, 70 mm outer diameter, 57 mm trimmed outer diameter, 12.2 mm height
• Pull-out pressure sleeve: M12 x 1.5 mm internal thread size, 51 mm outer diameter, 49.7 mm inner diameter, 35.2 mm height
• Intake pressure sleeve: M12 x 1.5 mm internal thread size, 58 mm outer diameter, 47 mm inner diameter, 43.1 mm height
• Pull-out spacer sleeve: 12.5 mm bore diameter, 55 mm outer diameter, 46 mm inner diameter, 72.3 mm height
• Pull sleeve: 12.5 mm hole diameter, 45 mm outer diameter, 36 mm inner diameter, 30.1 mm height
• Intake spacer sleeve: M12 x 1.5 mm internal thread size, 55.1 mm outer diameter, 46.5 mm inner diameter, 30.1 mm height
• Spacer sleeve: 12.5 mm hole diameter, 58 mm outer diameter, 47 mm inner diameter, 60.5 mm height
• Pressure element: M12 x 1.5 mm internal thread size, 49.9 mm outer diameter, 32 mm inner diameter, 25.3 mm height
• Sleeve: 12.5 mm bore diameter, 65 mm outer diameter, 50.3 mm inner diameter, 70.1 mm height
• Pull-out pressure piece: M12 x 1.5 mm internal thread size, 48 mm outer diameter, 32 mm inner diameter, 20.1 mm height
• Intake pressure piece: M12 x 1.5 mm internal thread size, 65 mm outer diameter, 32 mm inner diameter, 20.3 mm height
• Draw plate: 12.5 mm hole diameter, 50.2 mm outer diameter, 46 mm trimmed outer diameter, 12.1 mm height

Vehicle compatibility

• BMW 1 Series models, e.g. E81, E87
• BMW 3 Series E36, E46, E83, E90, E91, E92, E93
• BMW 5 Series models E60, E61, E63
• BMW 6 Series models, E64, E38
• BMW 7 Series models, E65, E66, E67
• BMW 8 Series models E31
• BMW E85 Z4 models
• BMW E86
• Mini Cooper S R53 model

About this product

Who is it for

Suited to professional workshops and DIY users carrying out suspension bushing, bearing and ball joint work on compatible BMW and Mini models.

When and where to use it

Suitable for daily workshop use when removing and installing silent bearings, bushes and related suspension components.
