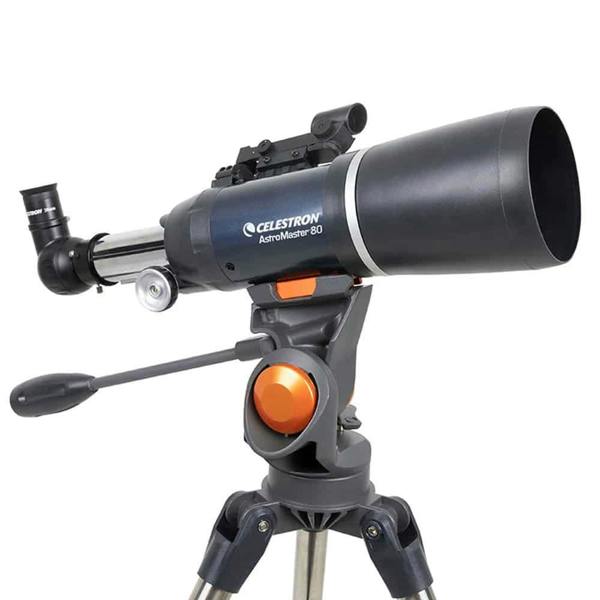

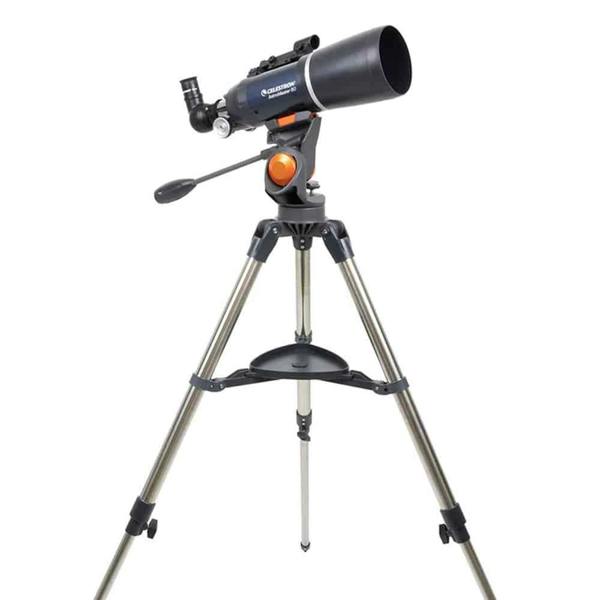

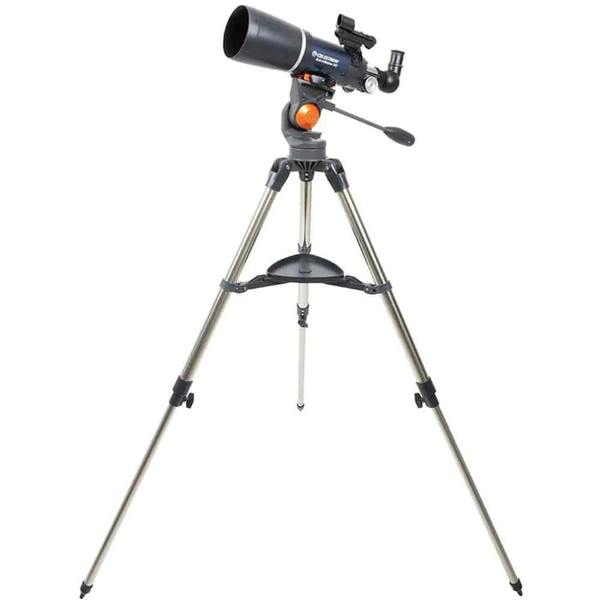

Celestron Astromaster 80AZS Short Refractor Telescope

Compact and easy to handle, the Celestron AstroMaster 80AZS is a short refractor telescope with an 80mm aperture, 400mm focal length and f/5 focal ratio on a manual alt-azimuth mount. Its lightweight format and preassembled mount and tripod make it a practical choice for beginners, with a short optical tube that suits both astronomical viewing and daytime terrestrial observation.

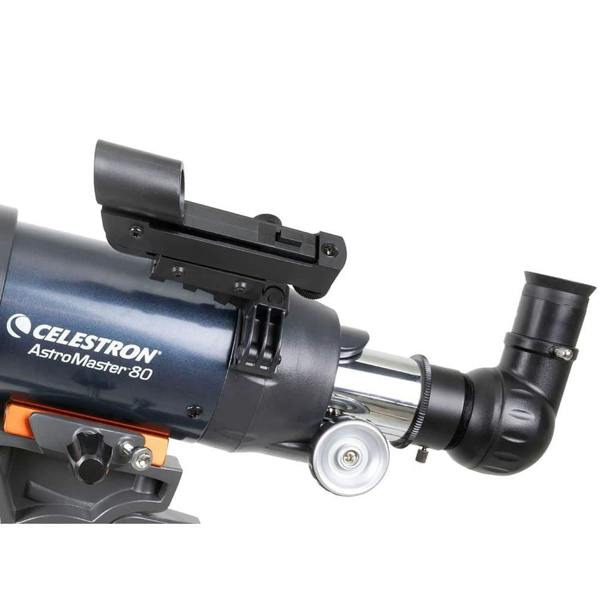

An erect image 90 diagonal is included for right-side-up viewing, while the StarPointer red dot finderscope helps with quick alignment. Two eyepieces are supplied, giving 20x and 40x magnification, and the pan handle with clutch-controlled alt-azimuth movement allows smooth manual tracking. Celestron Starry Night Basic Edition Software and the SkyPortal App are also included.

Key features

• 80mm refractor telescope with 400mm focal length
• f/5 focal ratio
• Manual alt-azimuth mount with pan handle and clutch control
• Fully coated optics

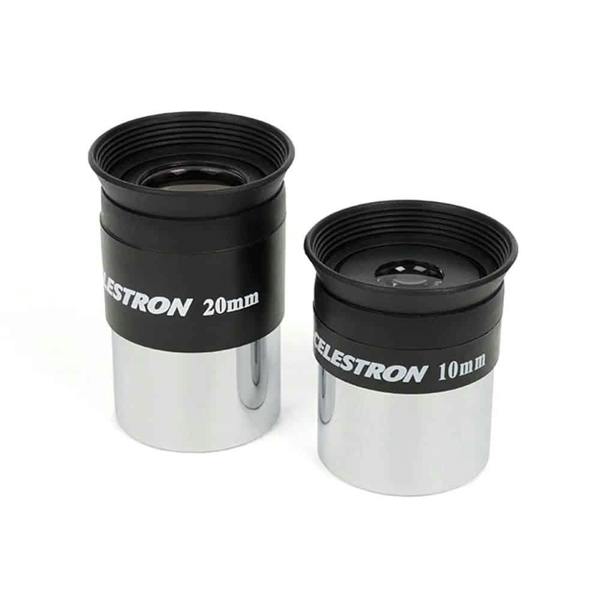

• Supplied with 20mm and 10mm eyepieces for 20x and 40x magnification
• StarPointer red dot finderscope included
• Erect image 90 diagonal with 1. 25-inch fitting
• 2-year warranty
• Model number: 21082-CGL

Specifications

Optics

• Optical design: Refractor
• Aperture: 80mm (3. 1")
• Focal length: 400mm (15. 74")
• Focal ratio: f/5
• Optical coatings: Fully Coated
• Highest useful magnification: 189x
• Lowest useful magnification: 11x
• Limiting stellar magnitude: 12
• Resolution (Rayleigh): 1. 74 arc seconds
• Resolution (Dawes): 1. 45 arc seconds
• Light gathering power (compared to human eye): 131x
• Focal length of eyepiece 1: 20mm (0. 78")
• Magnification of eyepiece 1: 20x
• Focal length of eyepiece 2: 10mm (0. 4")
• Magnification of eyepiece 2: 40x
• Star diagonal: Erect Image, 90 (1. 25")
• Finderscope: StarPointer red dot finderscope
• Barlow lens: Not included

Mount

• Mount type: Manual Alt Azimuth
• Slew speeds: Manual
• Dovetail compatibility: CG-5 saddle plate
• Dovetail: CG-5 dovetail bar
• Accessory tray: Yes

Build

• Optical tube: Aluminium
• Optical tube weight: 2. 8 lbs (1. 27 kg)
• Tripod weight: 7. 6 lbs (3. 44 kg)
• Total telescope kit weight: 10. 4 lbs (4. 71 kg)
• Skill level: Beginner

Sizing

• Optical tube length: 711. 2mm (28")
• Height adjustment range (includes mount and tripod): 812. 8mm - 1295. 4mm (32"-51")
• Tripod leg diameter: 31. 75mm (1. 25")

In the box

• Mount and tripod (preassembled)
• 20mm eyepiece
• 10mm eyepiece
• StarPointer red dot finderscope
• Erect image diagonal
• Manual
• Celestron Starry Night Basic Edition Software
• SkyPortal App

Support & warranty

• 2-year warranty

Safety information

• Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
• Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
• Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
