Celestron Dew Heater Ring 5"

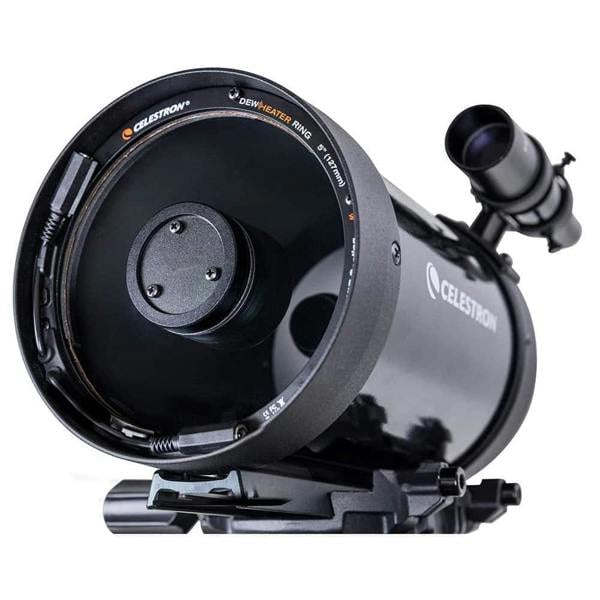

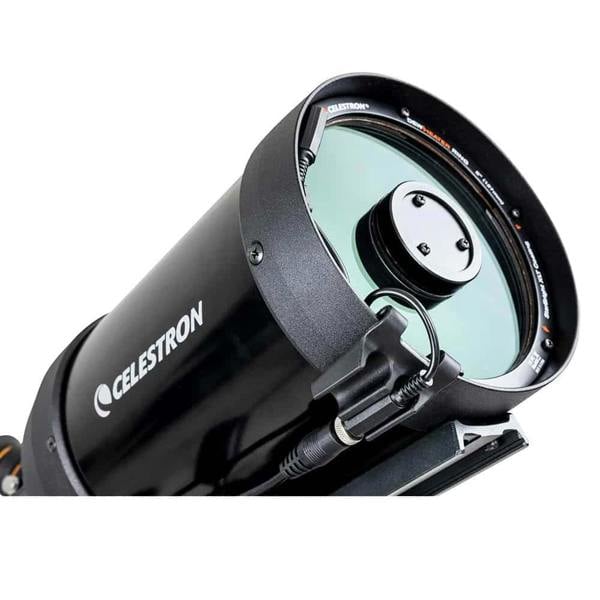

Year-round dew control starts at the corrector lens, and this Celestron 5-inch Dew Heater Ring takes a direct approach. Made for compatible 5-inch Schmidt-Cassegrain telescopes, it replaces the retaining ring on the optical tube and applies heat across the corrector glass itself rather than around the lens cell.

The aluminium ring is rigid, lightweight and permanently mounted for a neat, integrated fit on the telescope. An integrated thermistor monitors the corrector lens temperature when used with Celestron Smart DewHeater Controllers, while the 12V DC barrel connector provides continuous heat to help prevent dew forming during observation and imaging sessions. Storage clips and a cable management clip are included to keep connections protected and tidy when the ring is not in use.

Key features

• Dew heater ring for compatible 5-inch Schmidt-Cassegrain telescopes
• Permanently replaces the retaining ring on the optical tube
• Direct heating across the corrector lens
• Rigid, lightweight aluminium construction

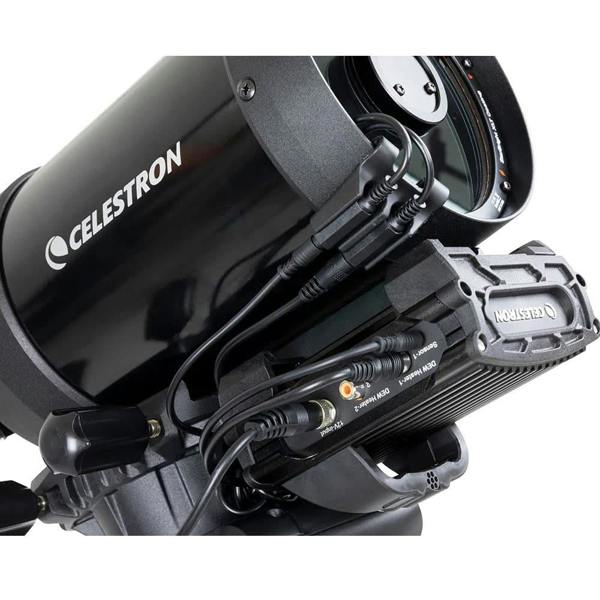

• Integrated thermistor for use with Celestron Smart DewHeater Controllers
• 12V DC power connection
• Includes storage clips and cable management clip
• Model number: 94055-CGL

Specifications

• Maximum power: 7 watts
• Power jack: 12V DC barrel connector, 5. 5mm/2. 1mm, tip positive
• Ring construction: Aluminium
• Power jack extension cable: 6-inch long, 12V DC, 5. 5mm/2. 1mm barrel connector on one end, male RCA connector on other end, tip positive
• Thermistor jack: 2. 5mm audio jack
• Compatibility: 5-inch Schmidt-Cassegrain
• Weight: 1. 63 oz (46. 3 g)

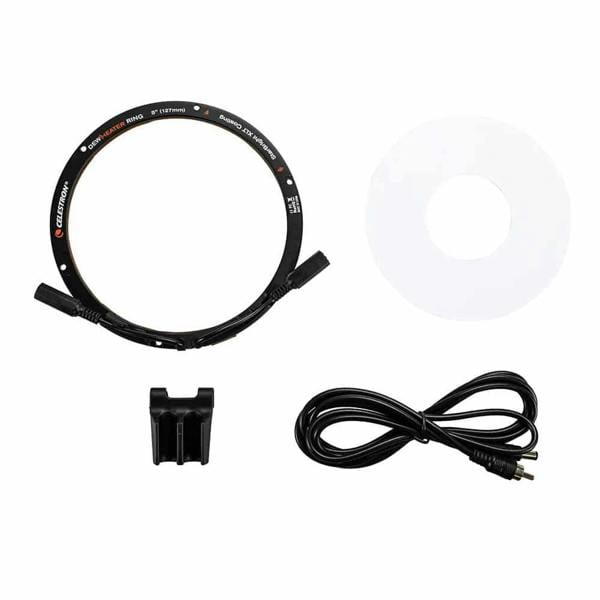

In the box

• Dew Heater Ring
• Cable management clip
• Power jack extension cable
• Paper installation shield

Support & warranty

2-year warranty.
