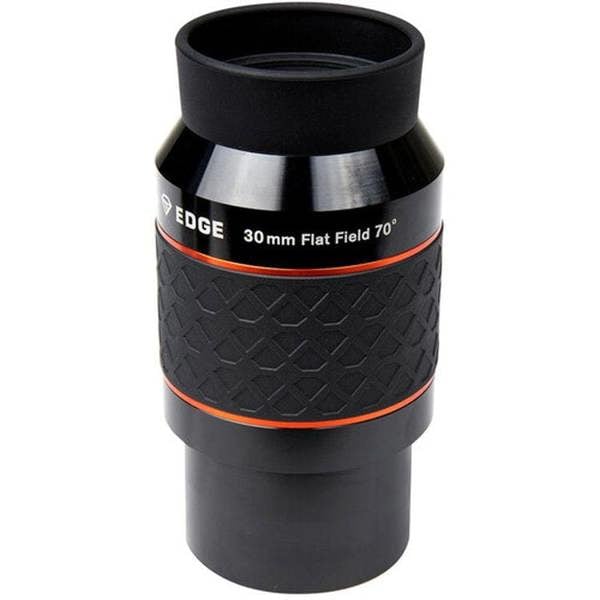

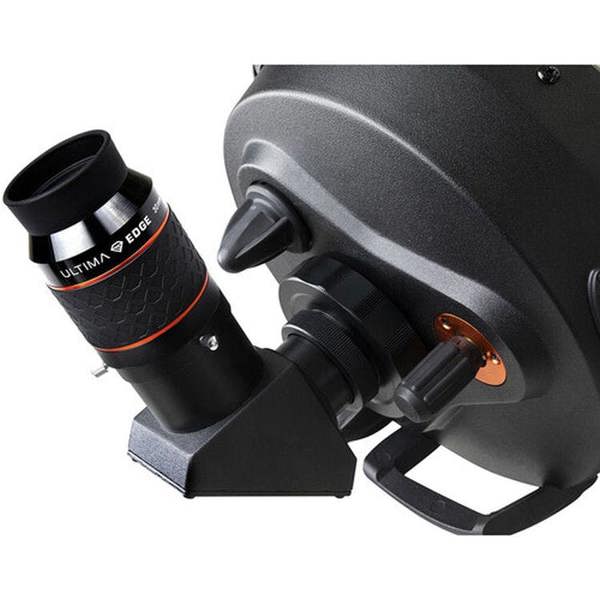

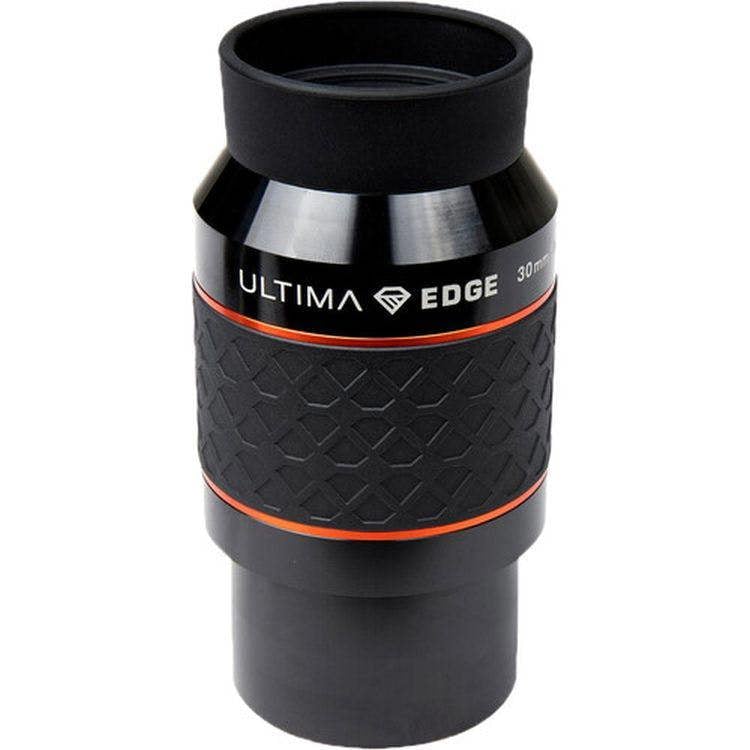

Celestron Ultima Edge 30mm Flat Field Eyepiece - 2 inch

Built for wide, immersive views, the Celestron Ultima Edge 30mm Flat Field Eyepiece is a 2-inch telescope eyepiece with a 30mm focal length, a 70 apparent field of view and a 9-element optical design. Fully multi-coated optics and a flat-field layout keep the image sharp across the field, while the parfocal construction allows quick changes within the Ultima Edge range without refocusing, apart from the 24mm model.

The aluminium body has a black anodised finish and a moulded rubber grip ring for secure handling during observing sessions. A fold-down rubber eyeguard and 22mm eye relief support comfortable viewing with or without glasses. The 2-inch mounting barrel is internally threaded to accept standard 1. 25-inch filters and adaptors, and the eyepiece is compatible with 2-inch star diagonals and focusers.

Key features

• 30mm flat-field eyepiece for 2-inch focusers
• 70 apparent field of view
• 9-element optical design with fully multi-coated optics
• Parfocal within the Ultima Edge line, excluding the 24mm model
• 22mm eye relief with fold-down rubber eyeguard
• Aluminium body with black anodised finish
• Moulded rubber grip ring for non-slip handling
• Compatible with 2-inch star diagonals and focusers
• Model number: 93454-CGL

Specifications

Optical

• Focal length: 30mm
• Optical design: Proprietary
• Number of lens elements: 9
• Number of lens groups: 5
• Optical coatings: Fully multi-coated
• Apparent field of view: 70
• Field stop diameter: 30. 4mm
• Eye relief: 22mm
• Parfocal: Yes
• Filter threads: 2-inch (M48. 5 x 0. 6-6H)

Build

• Barrel size diameter: 2-inch
• Eye guard: Yes - fold down
• Body material: Aluminium
• Weight: 23. 8 oz (674. 7 g)

Sizing

116mm x 60mm x 60mm

Support & warranty

• 2-year warranty
