Celestron E-lux 2" 40 mm Eyepiece

Low-power, wide-field viewing comes naturally to the Celestron E-lux 2-inch 40mm eyepiece, a telescope accessory built around a 3-element Kellner optical design with fully multi-coated optics. With a 56 apparent field of view and a 40mm focal length, it suits telescopes with a 2-inch focuser and offers a broad, immersive view for general astronomical observing.

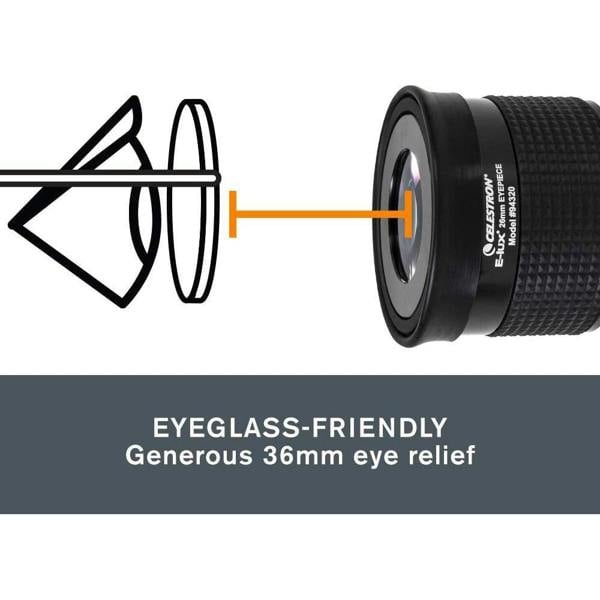

Comfort has been given equal attention. The long 36mm eye relief and fold-down rubber eyeguard make viewing easier for both eyeglass wearers and non-eyeglass wearers, while the machined aluminium housing has a black anodised finish. Inside the barrel, matte black light-dispersion threads help reduce internal reflections. The eyepiece is also threaded to accept most 2-inch filters.

Key features

• 40mm eyepiece for telescopes with a 2-inch focuser
• 3-element Kellner optical design
• Fully multi-coated optics
• 56 apparent field of view
• 36mm eye relief
• Threaded to accept most 2-inch filters
• Black anodised machined aluminium housing
• 2-year warranty
• Model number: 94322-CGL

Specifications

Optical

• Focal length: 40mm (1. 57")
• Optical design: Kellner
• Apparent field of view: 56
• Number of lens elements: 3
• Number of lens groups: 2
• Optical coatings: Fully multi-coated
• Eye relief: 36mm (1. 42")
• Filter threads: 50. 8mm (2. 0")

Build

• Barrel size (diameter): 50. 8mm (2")
• Eye guard: Yes, rubber, fold-down
• Weight: 12. 5 oz (356 g)
• Weight: 0. 43 kg

Sizing

125. 20mm x 55. 9mm diameter (4. 93" x 2. 20" diameter)

Support & warranty

2-year warranty.

Rackhams Reference : I235PRR7NB
