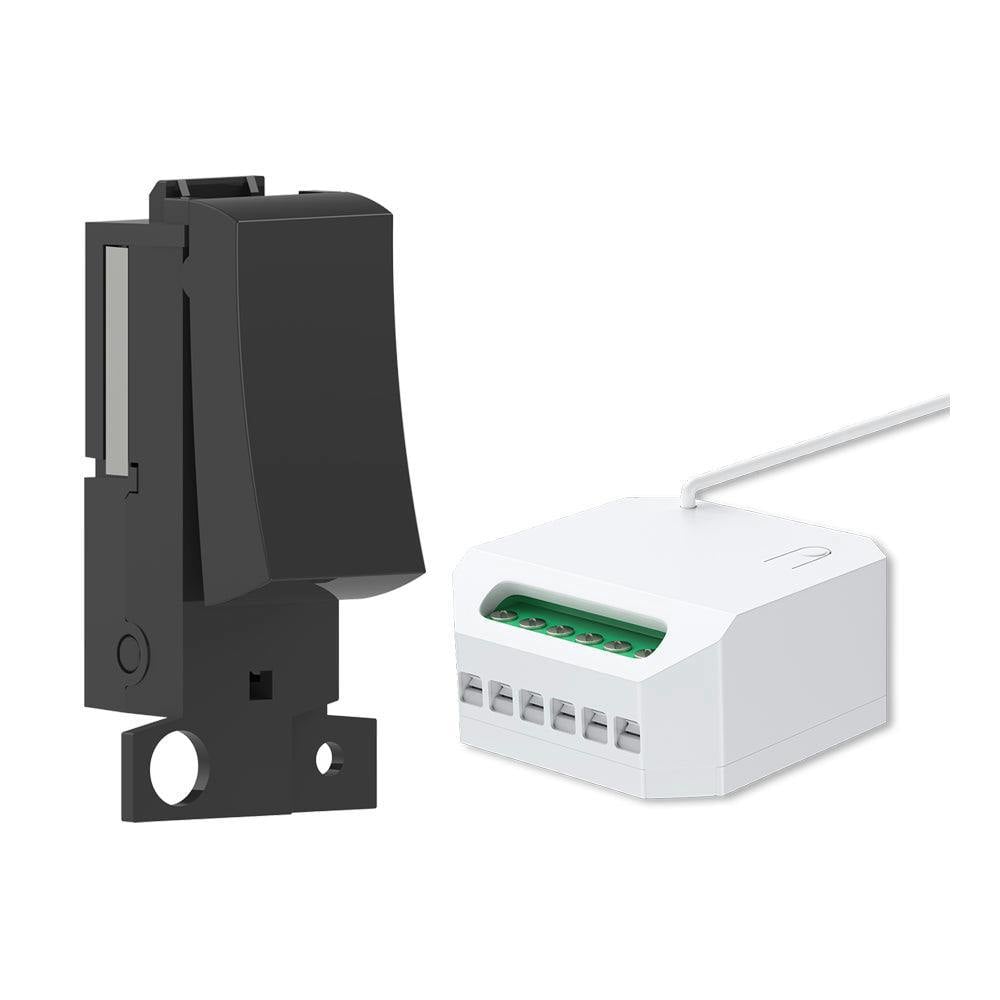

ENER-J 1 Gang Grid Switch, Black Body with Non Dimmable + WiFi 5A RF Mini Receiver

ENER-J brings flexible lighting control together in this 1 Gang Grid Switch with Non-Dimmable + WiFi 5A RF Mini Receiver set. Combining a black 1 gang wireless kinetic switch with a compatible receiver module, it offers cable-free switch operation alongside app and voice control for connected lighting setups.

The switch fits into a plate and uses kinetic energy, so there are no batteries, wiring or drilling required. It pairs with ECO Series receiver modules via 433Hz RF and can also be used alongside mains voltage grid switches. The included mini receiver supports ENERJSMART app control and voice commands with Alexa, Google Home and Siri, while also allowing one switch to control up to 10 receiver modules or multiple switches to control one light.

Key features

• 1 gang black wireless kinetic grid switch
• 5A non-dimmable RF mini receiver with WiFi
• Switch powered by micro energy acquisition and self-powered operation
• Switch lifetime of 200,000 on/off cycles
• Switch IP65 rated
• Receiver rated load: 5A
• Receiver maximum load: LED 500W, other 1100W
• Receiver supports app and voice control

Specifications

Switch

• Work type: Push button
• Power source: Micro energy acquisition and self-powered
• Communication model: FSK
• Work frequency: 433Hz
• Number of keys/colour: 1 (1 gang) / Black
• Life time: 200,000 times on/off
• Control distance: 30m (indoor)
• Control method: Pairing with ECO Series Receiver Modules
• Software support end date: 10/08/2028

Receiver

• Range: Indoor: Max 20M, Outdoor: Max 80M (approx)
• IP rating: Indoor Only (IP20)
• Standby power consumption: <0. 5W
• Communication: RF 433MHz + WiFi (2. 4G only) APP & Voice Control

Sizing

64mm H x 32mm L x 24mm W

In the box

• 500W RF+WiFi Non-Dimmable Receiver Module
• User Manual

Support & warranty

• 3 year warranty

Rackhams Reference : 6QB6EA244L
