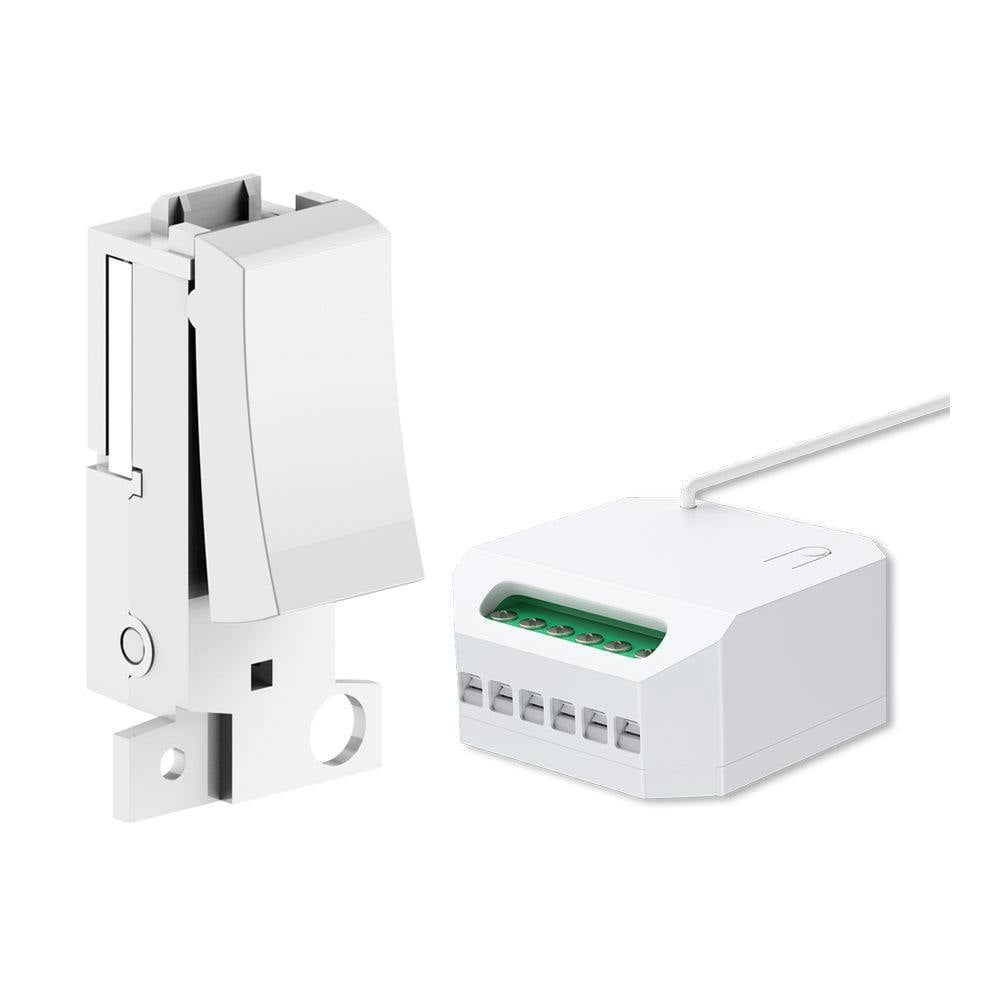

ENER-J Wireless Grid Switch 1-Gang Compatible, White Body with Non Dimmable + WiFi 5A RF Mini Receiver

For a cleaner, more flexible lighting setup, the ENER-J Wireless Grid Switch 1-Gang Compatible with 5A RF Mini Receiver combines a self-powered wireless switch with a compact non-dimmable receiver module. Finished with a white body and compatible with the Mode system, it offers wireless control without wiring or batteries for the switch itself.

The 1-gang push button switch pairs with ECO Series receiver modules and can also be used alongside mains voltage grid switches. The included receiver supports RF and WiFi control through the ENERJSMART app, with voice control via Alexa and Google Home also stated. Its slim format is suitable for discreet ceiling installation, while the receiver can be used outdoors when placed in a waterproof junction box.

Key features

• 1-gang wireless grid switch compatible with the Mode system
• White body finish
• Non-dimmable 5A RF mini receiver included
• No wiring or batteries needed for the switch
• Self-powered switch with micro energy acquisition
• Compatible with standard receivers and dimming receivers
• Can be used alongside mains voltage grid switches
• Software support end date: 10/08/2028

Specifications

Switch

• Work type: Push button
• Power source: Micro Energy Acquisition and self-powered
• Communication model: FSK
• Work frequency: 433Hz
• Number of keys: 1 (1 gang)
• Life time: 200,000 times on/off
• Control distance: 30m (indoor)
• Control method: Pairing with ECO Series Receiver Modules

Receiver

• Range: Indoor: Max 20M, Outdoor: Max 80M (approx)
• Rated load: 5A
• Max load: LED: 500W, Other: 1100W
• IP rating: IP20
• Standby power consumption: <0. 5W
• Communication: RF 433MHz + WiFi (2. 4G only) app and voice control

Sizing

64mm H x 32mm L x 24mm W

In the box

• 500W RF+WiFi non-dimmable receiver module
• User manual

Support & warranty

• 3 year warranty

Rackhams Reference : LC8AUSKSXL
