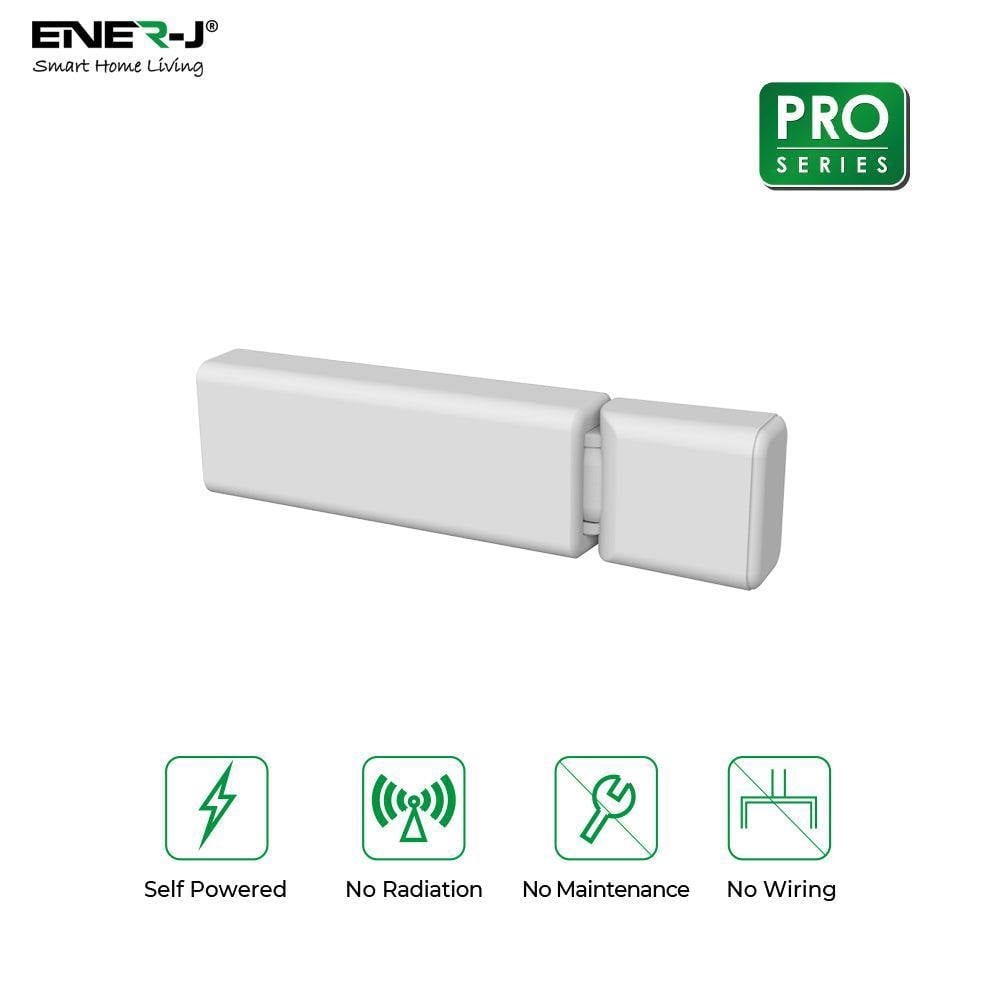

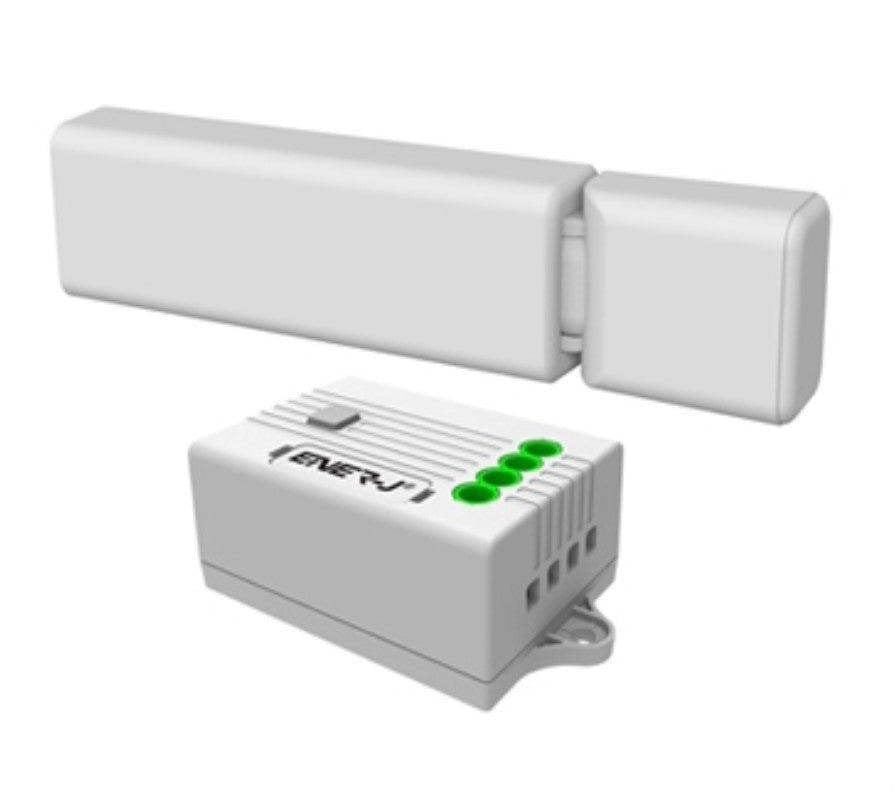

ENER-J Kinetic Door Switch + 500W RF Receiver Module, PRO Series

ENER-J brings practical, cable-free control to cupboard, drawer and door lighting with this Kinetic Door Switch and 500W RF Receiver Module from the PRO Series. The kit pairs a wireless kinetic door switch with a 500W non-dimmable RF receiver, allowing lights to be triggered when doors, drawers or cabinets are opened or closed.

Battery-free operation keeps the switch simple to use, using micro energy acquisition and self-generating technology instead of replaceable batteries. Suitable for standard doors, sliding doors and drawers, it can be surface mounted with screws or double-sided adhesive paste. FSK modulation supports wireless control at up to 25m indoors and up to 80m outdoors, while the switch is rated for a service life of 100,000 times.

Key features

• Wireless kinetic door switch with 500W RF receiver module
• Battery-free switch operation using micro energy acquisition and self-generating technology
• Suitable for standard doors, sliding doors and drawers
• Up to 25m indoor control distance
• Up to 80m outdoor control distance
• Surface mounting with screws or double-sided adhesive paste
• PC shell material
• 500W non-dimmable receiver

Specifications

Switch

• Power source: Micro energy acquisition and self-generating
• Work frequency: 433Hz
• Communication frequency: RF 433MHz
• Control method: Pairing with PRO Series wireless receiver
• Working temperature: -20°C to +55°C
• Service life: ≥100,000 times
• Installation method: Surface mounted with screws or double-sided adhesive paste
• Shell material: PC

Receiver module

• Maximum load: 5A (500W)
• Voltage range: 170-240V
• Dimmable: No
• Working temperature: -30 to 55 degrees Celsius
• Working frequency: 433MHz RF
• Waterproof level: Non-IP rated
• Control method: PRO Series Kinetic Switch
• Weight: 60 grams

Sizing

70mm L x 44mm W x 29mm H

In the box

• 1 x Kinetic Door Switch
• 1 x 500W RF Non-Dimmable Receiver
• Installation manual

Rackhams Reference : EFYXDFY4LU
