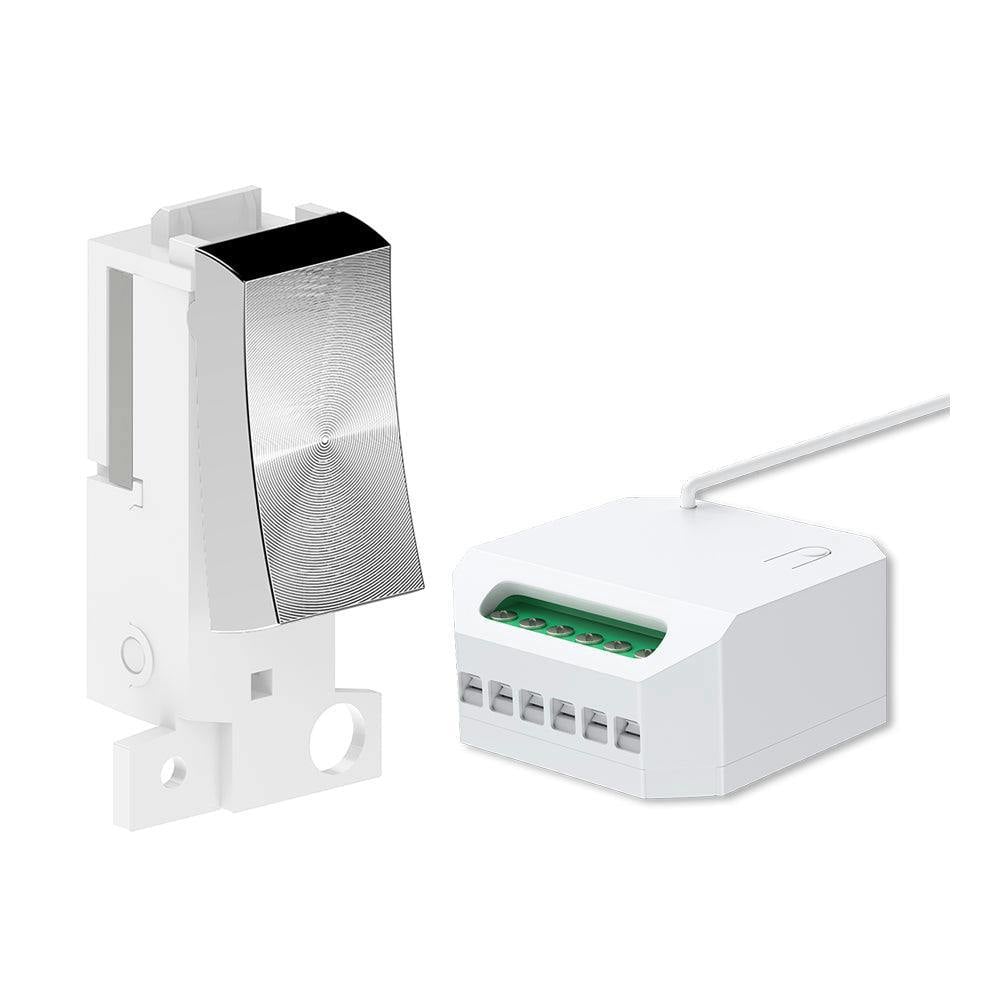

ENER-J Grid Switch, Satin Chrome with Non Dimmable + WiFi 5A RF Mini Receiver

Bring flexible wireless control into a Powergrid setup with this ENER-J grid switch and 5A RF mini receiver set. The satin chrome 1 gang switch pairs with the included non-dimmable WiFi receiver, combining a clean integrated look with app, RF and voice control options for compatible lighting circuits.

The switch uses a self-powered micro energy generator, so no wiring or batteries are required. It works with the Powergrid system and pairs with ECO Series receiver modules, while the compact receiver supports ENERJSMART app control and voice commands through Alexa, Google Home and Siri. This set also allows an existing traditional hard-wired switch to be converted to 2 way control. With its slim receiver format and indoor range of up to 20m, it suits home lighting installations where straightforward wireless switching is required.

Key features

• 1 gang grid switch in a satin chrome finish
• Compatible with Powergrid system
• Self-powered switch with micro energy acquisition
• No wiring or batteries required for the switch
• Works with ECO Series standard or dimming receiving controllers
• Non-dimmable 5A RF and WiFi mini receiver
• App and voice control via ENERJSMART, Alexa, Google Home and Siri
• Indoor only, IP20 rated
• 2 year warranty

Specifications

Switch

• Work type: Push button
• Power source: Micro energy acquisition and self-powered
• Communication model: FSK
• Work frequency: 433Hz
• Number of keys: 1
• Lifetime: 200,000 times on/off
• Control distance: 20m indoor
• Control method: Pairing with ECO Series Receiver Modules
• Compatibility: CLICK Mini Grid Plates
• Software support end date: 10/08/2028

Receiver

• Range: Indoor max 20M, outdoor max 80M (approx)
• Rated load: 5A
• Max load: LED 500W, other 1100W
• Standby power consumption: <0.5W
• Communication: RF 433MHz + WiFi (2.4G only) app and voice control
• Supports one switch controlling up to 10 receiver modules or multiple switches controlling one light
• Receiver lifespan: up to 200,000 hours

Sizing

64mm H x 32mm L x 24mm W

In the box

• 500W RF+WiFi non-dimmable receiver module
• User manual

Rackhams Reference : JA25BSU1WH
