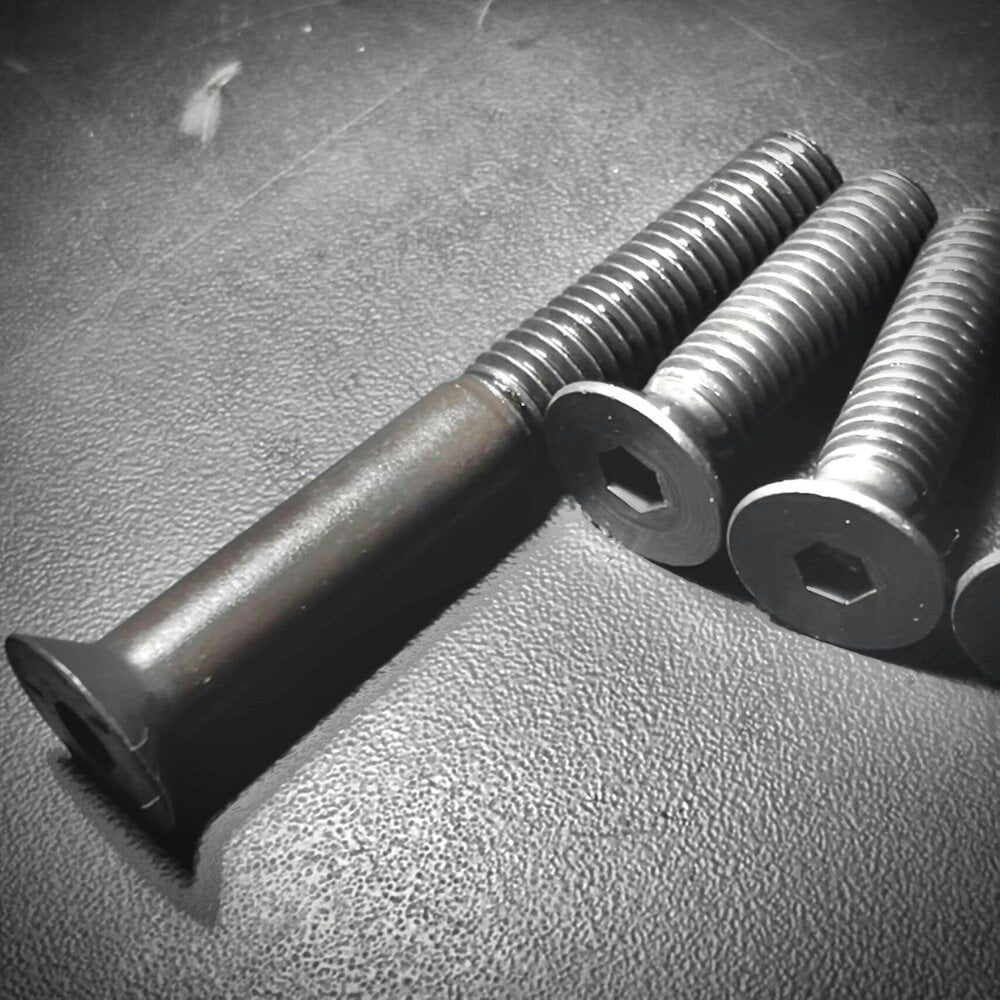

Fixaball BSW 3/8" Socket Screw Countersunk High Tensile 10.9 BS 2470

For flush-fitting threaded fastening, this Fixaball BSW Whitworth 3/8" countersunk socket screw/bolt is made in high tensile 10.9 steel with a self colour finish. It has a coarse 16 T. P. I. thread and an Allen/hexagon socket drive, conforming to BS 2470.

Available in a range of lengths, these countersunk fasteners sit flush with the connecting surface when fully tightened. Length is measured from tip to top. The self colour finish has low corrosion resistance without further surface treatment and is suited to applications with no exposure to moisture, often where components are greased or oiled.

Available options

• 3/8"-16 x 1/2" (PT)
• 3/8"-16 x 3/4" (PT)
• 3/8"-16 x 1" (PT)
• 3/8"-16 x 1. 1/2" (PT)
• 3/8"-16 x 2" (PT)
• 3/8"-16 x 2 1/2" (PT)
• 3/8"-16 x 2 3/4" (PT)
• 3/8"-16 x 3" (PT)

Key features

• Diameter: 3/8"
• Coarse pitch: 16 T. P. I.
• Material and finish: high tensile steel 10. 9, self colour
• Head type: countersunk head
• Drive type: Allen/hexagon socket
• Conforms to BS 2470

Specifications

• Allen hexagon key size: 5/16"
• Material grade: 10. 9
• Appearance: self-colour (black)
• Level of corrosion resistance: low, without further surface treatment

Safety information

• Use where there is no exposure to moisture.

Rackhams Reference : 5UB91RY7PR
