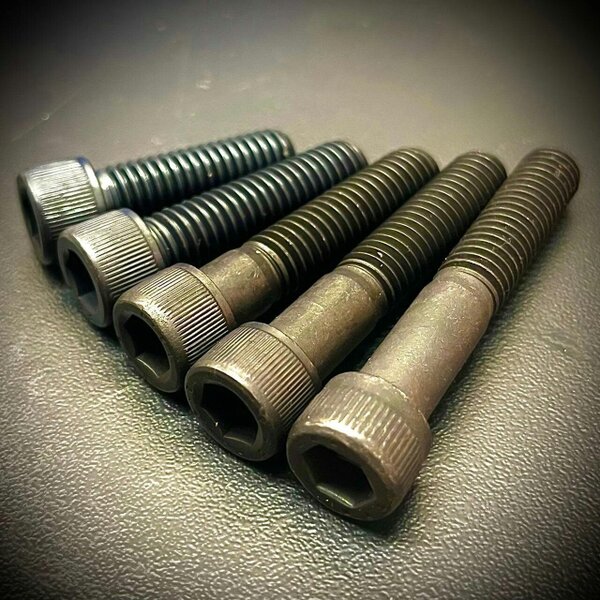

Fixaball BSW Whitworth 3/16" Socket Cap Screw High Tensile 12.9 DIN 912

For Whitworth-threaded assemblies, this Fixaball socket cap screw is supplied in 3/16" BSW with a hexagon socket cap head and high tensile 12.9 steel construction. It is finished in self-colour black with no surface treatment and is available in a choice of lengths, including fully threaded and partially threaded options.

Made to BS 2470, this fastener suits applications where a BSW thread form is required. The self-colour finish offers low corrosion resistance without further surface treatment, with typical use in dry conditions and where greasing or oiling is used to help prevent oxidisation and rusting.

Available options

• 3/16"-24 x 1/4, fully threaded
• 3/16"-24 x 3/8, fully threaded
• 3/16"-24 x 1/2, fully threaded
• 3/16"-24 x 5/8, fully threaded
• 3/16"-24 x 3/4, fully threaded
• 3/16"-24 x 7/8, fully threaded
• 3/16"-24 x 1, fully threaded
• 3/16"-24 x 1 1/4, partially threaded
• 3/16"-24 x 1 1/2, partially threaded
• 3/16"-24 x 1 3/4, partially threaded
• 3/16"-24 x 2, partially threaded
• 3/16"-24 x 2 1/2, partially threaded

Key features

• Thread size: 3/16" BSW
• Hexagon socket cap head
• Material: high tensile steel, 12.9 grade
• Finish: self-colour black
• Standard: BS 2470
• Low corrosion resistance without further surface treatment

Specifications

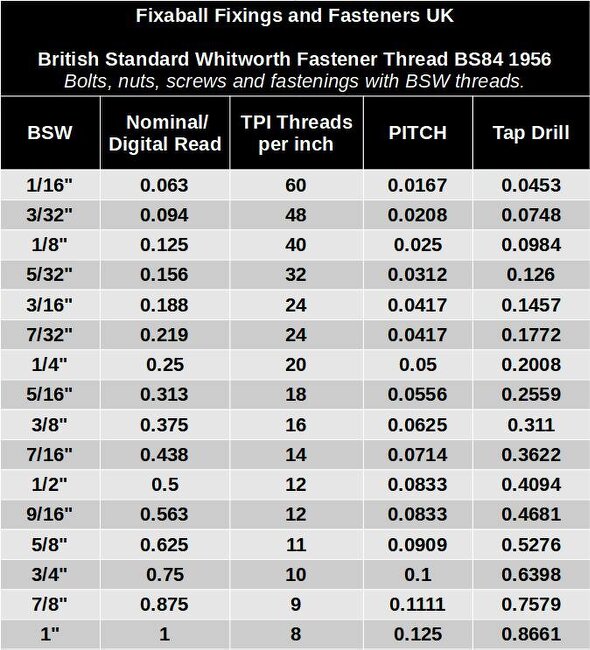

• Thread form: British Standard Whitworth (BSW)
• Thread angle: 55 degrees
• Thread form specified in BS 84: 1956
• Rounded roots and crests
