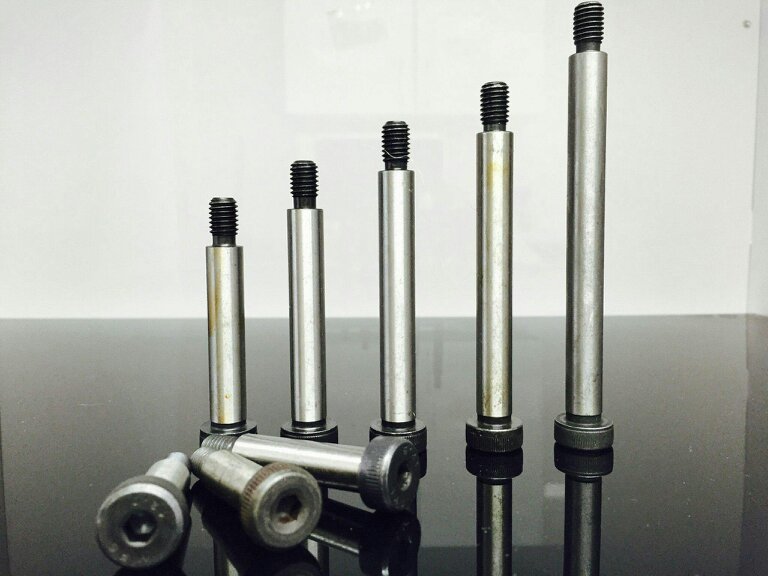

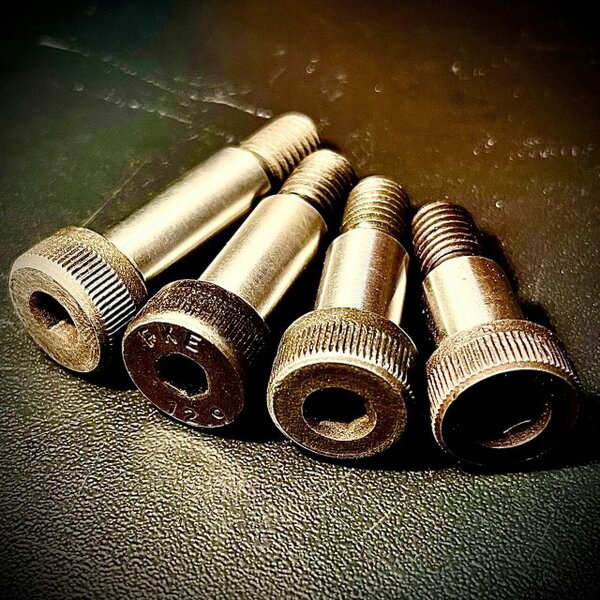

Fixaball Socket Shoulder Cap Screw M6 Thread 8mm Shoulder DIN9841

For mechanical assemblies that require a rotating bearing surface, the Fixaball socket shoulder cap screw combines an M6 metric coarse thread with an 8mm shoulder diameter and an internal hex drive. This high tensile fastener is manufactured from blackened alloy steel in grade 12.9 and conforms to DIN 9841, BS 4168 and ISO 7379.

The cylindrical unthreaded shoulder sits before the threaded section, making it suitable for moving parts and related mechanical applications. Hardness is 38 HRC, tensile strength is 1200 N/mm², and the stated temperature range is -50C to +300C.

Key features

• M6 metric coarse thread
• 8mm shoulder diameter
• Blackened alloy steel
• Grade 12.9 high tensile
• Internal hex / Allen key drive
• Standards: DIN 9841, BS 4168, ISO 7379

Available options

• Shoulder length: 5mm
• Shoulder length: 8mm
• Shoulder length: 10mm
• Shoulder length: 12mm
• Shoulder length: 15mm
• Shoulder length: 16mm
• Shoulder length: 20mm
• Shoulder length: 25mm
• Shoulder length: 30mm
• Shoulder length: 35mm
• Shoulder length: 40mm
• Shoulder length: 45mm
• Shoulder length: 50mm
• Shoulder length: 55mm
• Shoulder length: 60mm
• Shoulder length: 65mm
• Shoulder length: 70mm
• Shoulder length: 80mm
• Shoulder length: 90mm

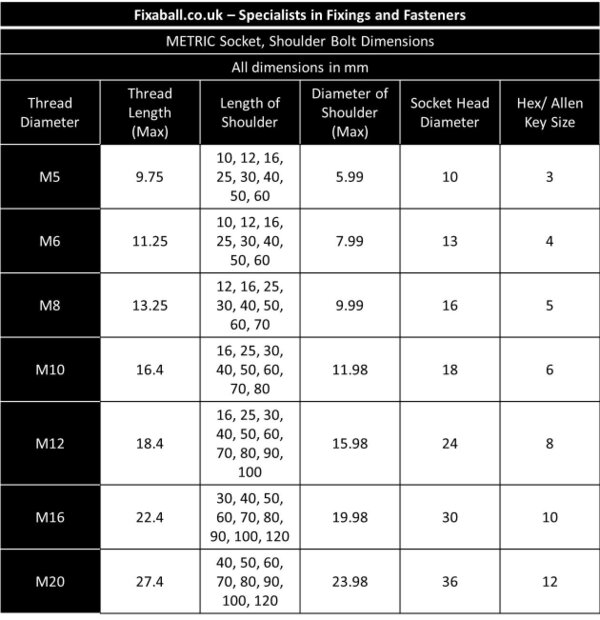

Specifications

• Hardness: 38 HRC
• Tensile strength: 1200 N/mm²
• Temperature range: -50C to +300C
• Torque to: M6 = 13 Nm
• Thread length (Max): 11.25
• Diameter of shoulder (Max): 7.99
• Socket head diameter: 13
• Hex / Allen key size: 4
