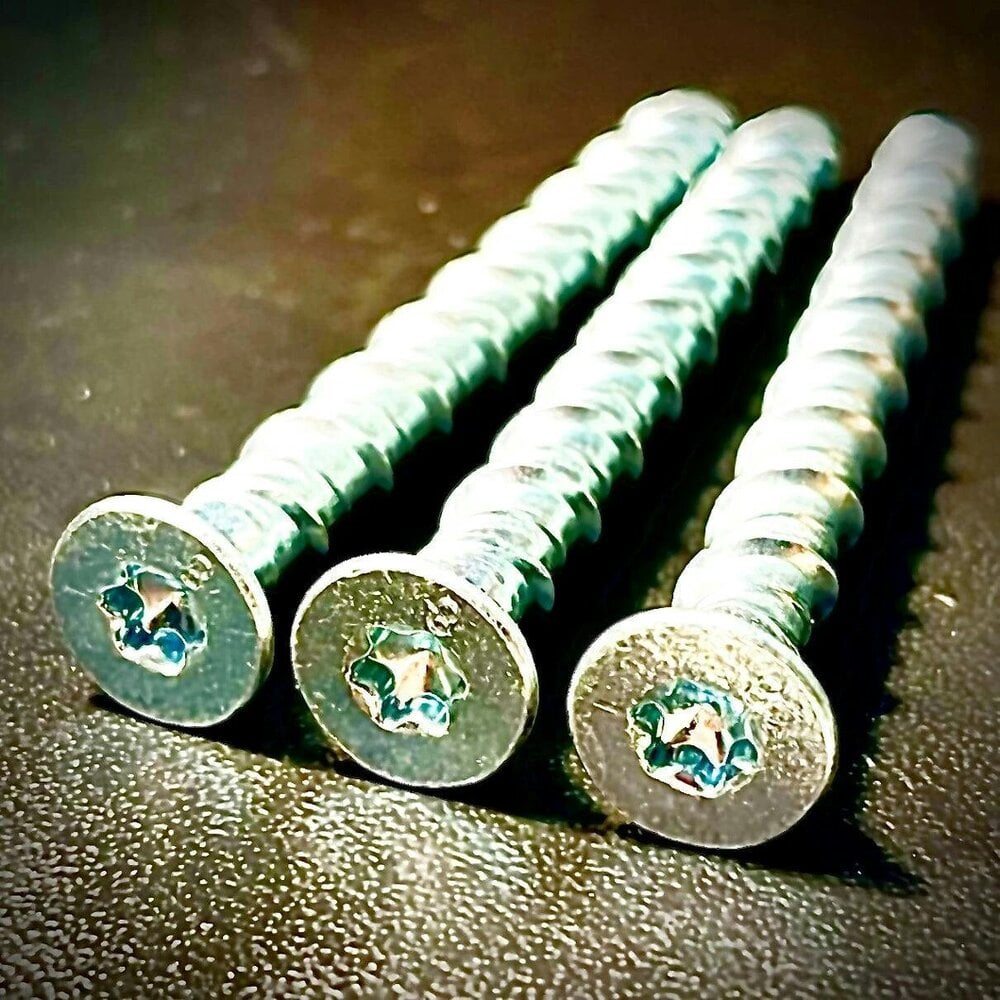

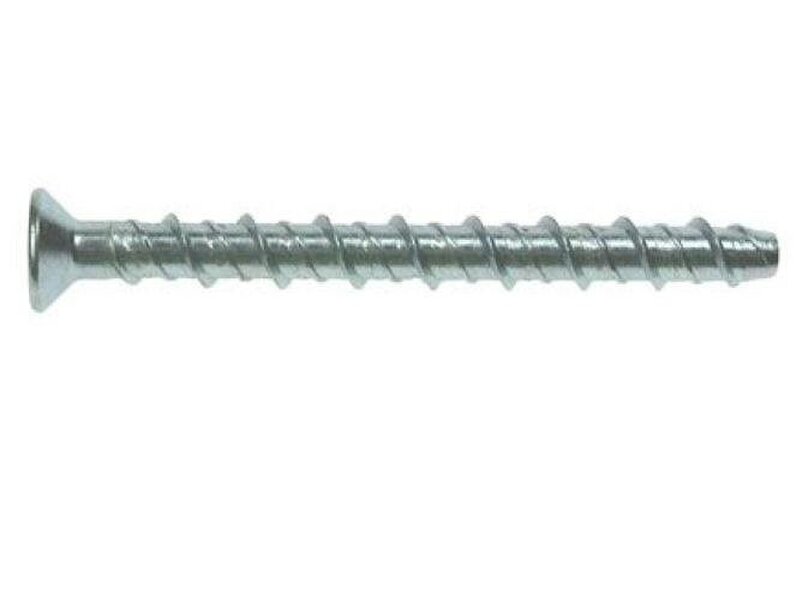

Fixaball Countersunk Concrete Masonry Anchor Screw 10mm Torx BZP JCP

For medium-duty anchoring into masonry and concrete, this Fixaball JCP Anker Bolt combines a 10mm fixing size with a 12mm self-tapping thread, a Torx countersunk head and a zinc/BZP plated finish. It is a non-expansion anchor with a concave thread that cuts its own thread into the pre-drilled hole.

Suitable for concrete, brick, stone, wood and concrete block, it can be adjusted or removed after installation. The fixing requires a 10mm masonry drill bit for the M10 bolt and the hole depth should be over-drilled by 10/20mm.

Available options

• 10mm x 60mm
• 10mm x 75mm
• 10mm x 100mm

Key features

• 10mm fixing size
• 12mm self-tapping thread
• Zinc/BZP plated finish
• Torx countersunk head
• Non-expansion anchor
• Suitable for concrete, brick, stone, wood and concrete block
• Requires a 10mm masonry drill bit

Specifications

• Concave thread design
• M10 bolt
• Hole depth should be over-drilled by 10/20mm
• T50 drill driver bit required

Sizing

• 10mm x 60mm
• 10mm x 75mm
• 10mm x 100mm

Safety information

• Drill the hole square to the surface using the correct masonry drill bit.
• Remove dust and debris from the hole before installation.
• Do not apply any stress or load until the concrete has fully cured.
