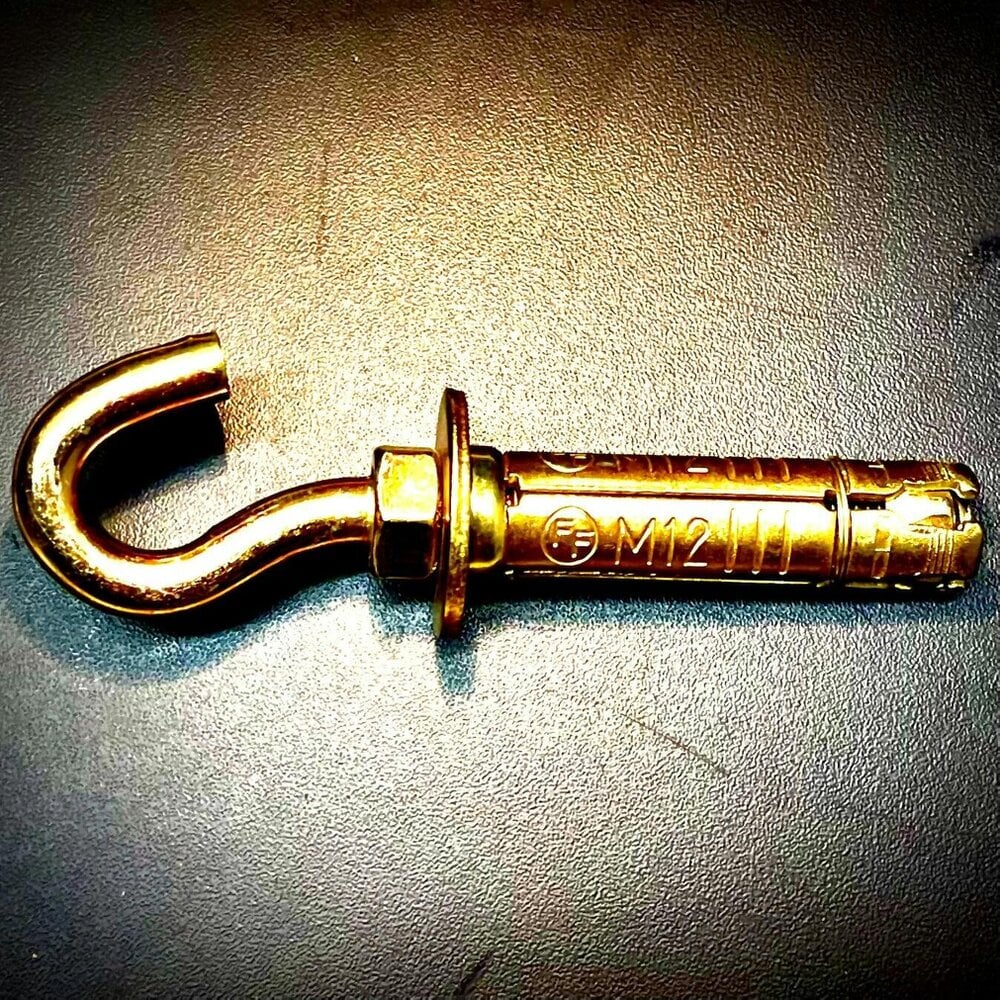

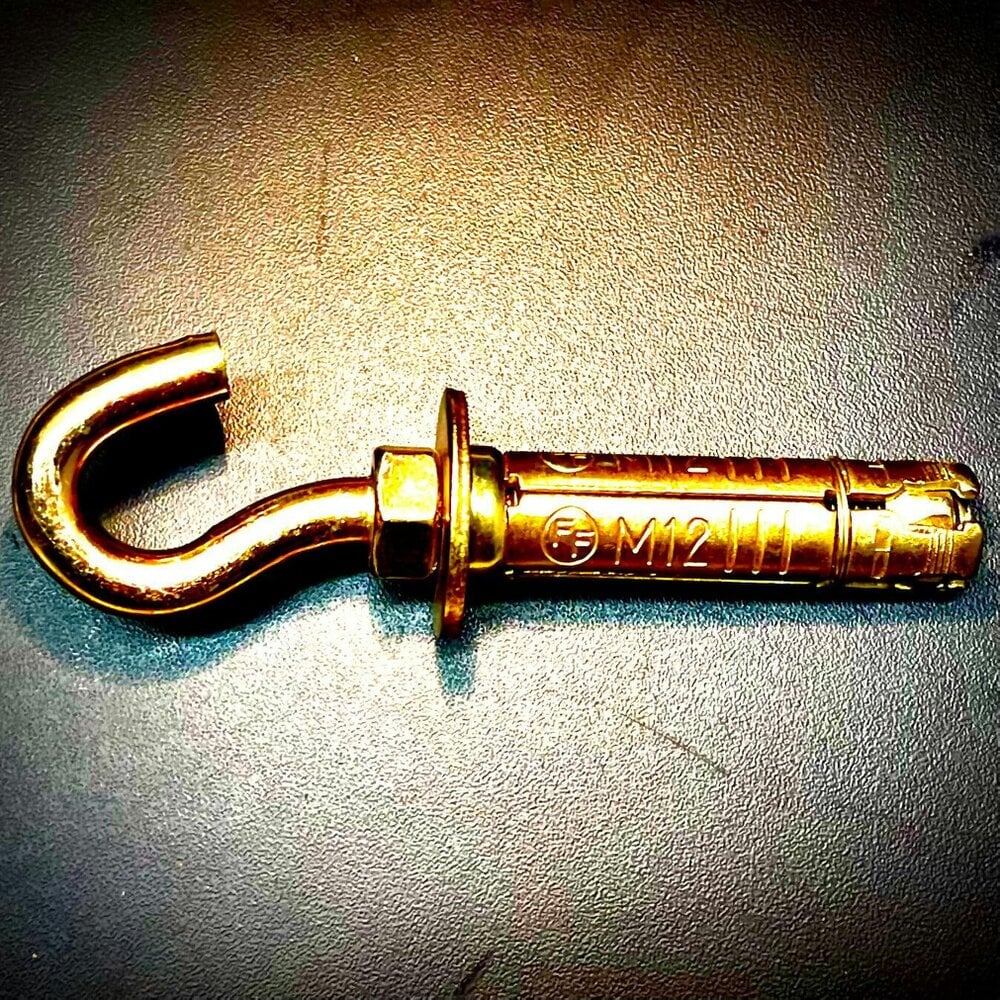

Fixaball Hook Bolt Shield Anchor Zinc Masonry Conctrete Brick Block

For masonry fixings in brick, block, concrete and non-porous stone, this Fixaball hook bolt shield anchor provides an expansion fixing in a heavy duty format. It is available in M6, M8, M10 and M12 sizes, with a zinc finish and forged hook bolt construction.

Suitable for a range of masonry applications, each anchor is installed by drilling the correct size hole, cleaning the hole, inserting the anchor and tightening the nut to set it in place.

Available options

• M6 x 80mm
• M8 x 95mm
• M10 x 115mm
• M12 x 145mm

Key features

• Heavy duty masonry shield anchor with hook bolt
• Zinc finish
• Suitable for brick, block, concrete and non-porous stone
• Expansion anchor fixing

Specifications

M6

• Hook diameter: 9 - 9.5
• Hole diameter: 12
• Hole depth: 50
• Fixture/material clearance hole: 7 - 8
• Center spacing between holes: 120
• Minimum distance from edge of material: 80
• Tensile/pull load: 3.5 k/N
• Shear load: 2.1 k/N
• Torque to tighten: 6.5 Nm

M8

• Hook diameter: 10 - 13
• Hole diameter: 14
• Hole depth: 55
• Fixture/material clearance hole: 9 – 10
• Center spacing between holes: 150
• Minimum distance from edge of material: 100
• Tensile/pull load: 4.8 k/N
• Shear load: 4.4 k/N
• Torque to tighten: 15 Nm

M10

• Hook diameter: 14 - 15
• Hole diameter: 16
• Hole depth: 65
• Fixture/material clearance hole: 11 – 12
• Center spacing between holes: 180
• Minimum distance from edge of material: 120
• Tensile/pull load: 6.2 k/N
• Shear load: 6.1 k/N
• Torque to tighten: 27 Nm

M12

• Hook diameter: 16 - 20
• Hole diameter: 20
• Hole depth: 85
• Fixture/material clearance hole: 13 – 14
• Center spacing between holes: 250
• Minimum distance from edge of material: 160
• Tensile/pull load: 9.7 k/N
• Shear load: 12.4 k/N
• Torque to tighten: 50 Nm

M16

• Hook diameter: 20 - 25
• Hole diameter: 25
• Hole depth: 125
• Fixture/material clearance hole: 17 - 18
• Center spacing between holes: 290
• Minimum distance from edge of material: 190
• Tensile/pull load: 21.3 k/N
• Shear load: 27.6 k/N
• Torque to tighten: 120 Nm

Safety information

All specifications apply with correct installation.
