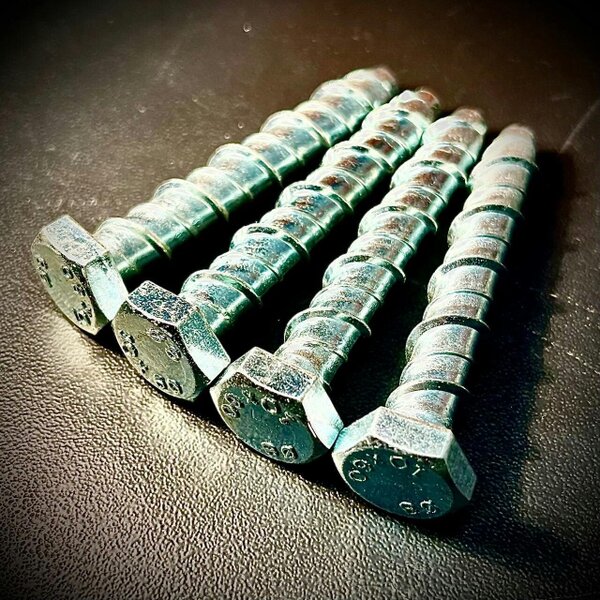

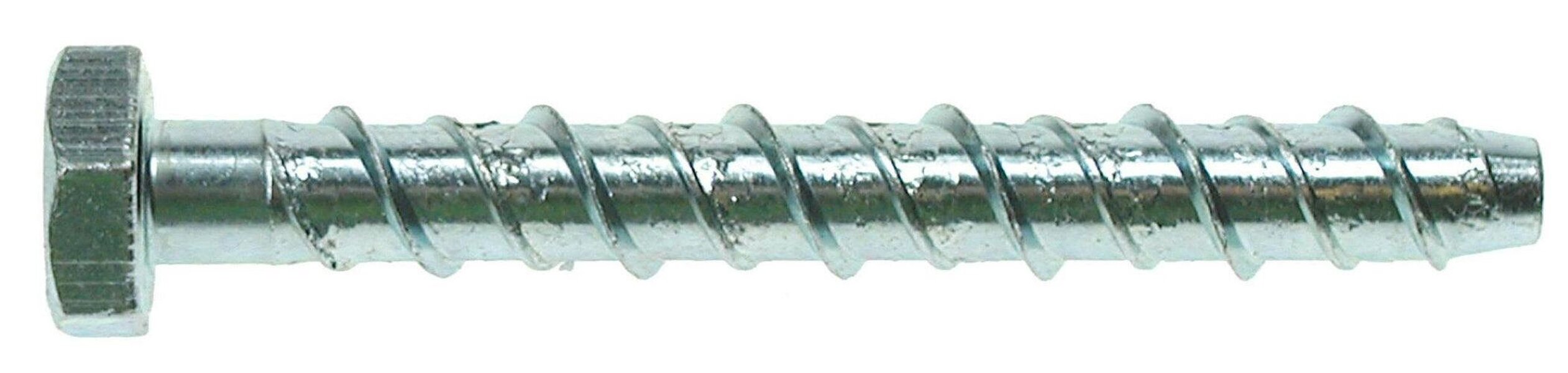

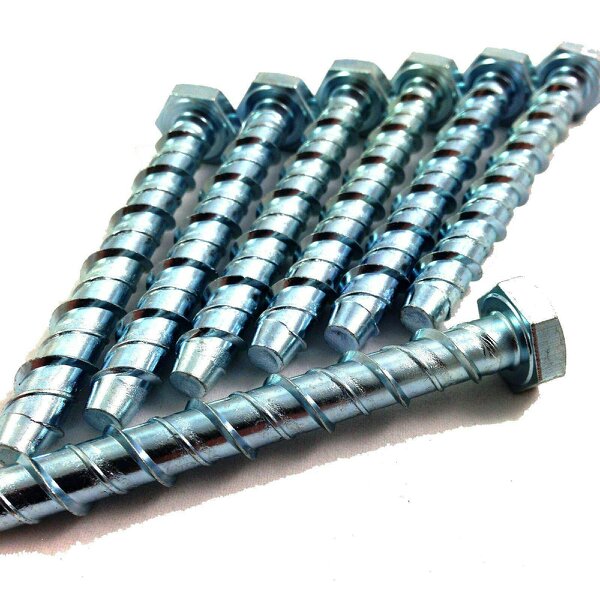

Fixaball M10 Hex Concrete Anchor Screw Self Tapping High Tensile BZP

For masonry and concrete fixings, the Fixaball M10 JCP Anker concrete anchor screw provides a self tapping, non-expansion fixing with a hexagon head and zinc plated finish. Its concave thread design cuts its own thread during installation, allowing low torque fitting and adjustment or removal where required.

Suitable for medium duty anchoring into concrete, brick, stone, wood and concrete block, this fixing offers a stress-free through fixing alternative to traditional through bolts, shield, sleeve and drop-in anchors.

Available options

• 10mm x 60mm
• 10mm x 75mm
• 10mm x 100mm
• 10mm x 130mm
• 10mm x 150mm

Key features

• Diameter: 10mm shank with 12mm self tapping thread
• Material and finish: zinc plated
• Hexagon head
• Non-expansion anchor
• Suitable for medium duty anchoring into concrete, brick, stone, wood and concrete block

Specifications

• Masonry drill bit size: 10mm
• Socket size: 17mm
• Over drill hole depth by 10/20mm

Safety information

• Do not put any stress or load onto the concrete screws until the concrete has fully cured.
• Use an additional washer to spread the load of the fixing.

Rackhams Reference : PUTCGVKUZP
