Fixaball M12 Hex Bolt 8.8 Washers Full Nut cl.6 Galvanised DIN 931

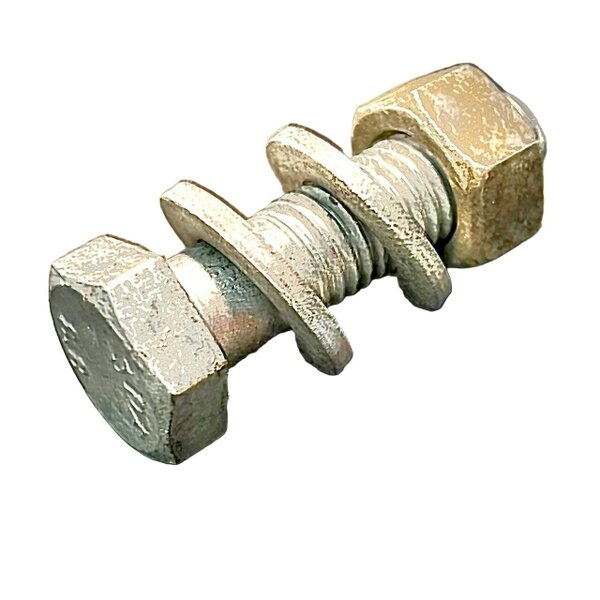

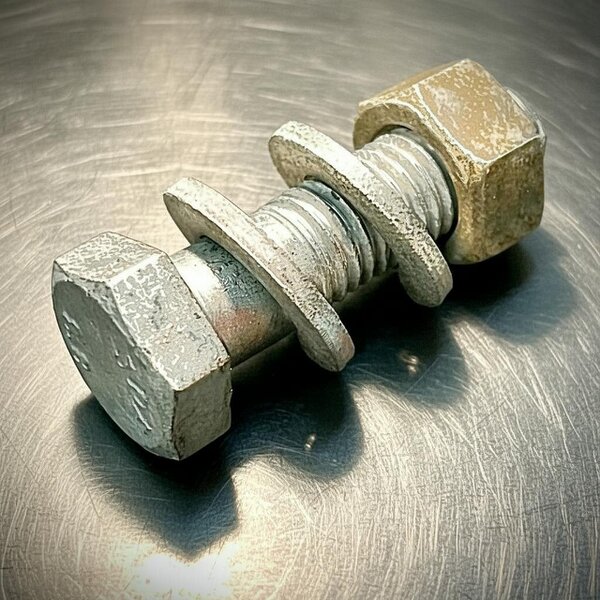

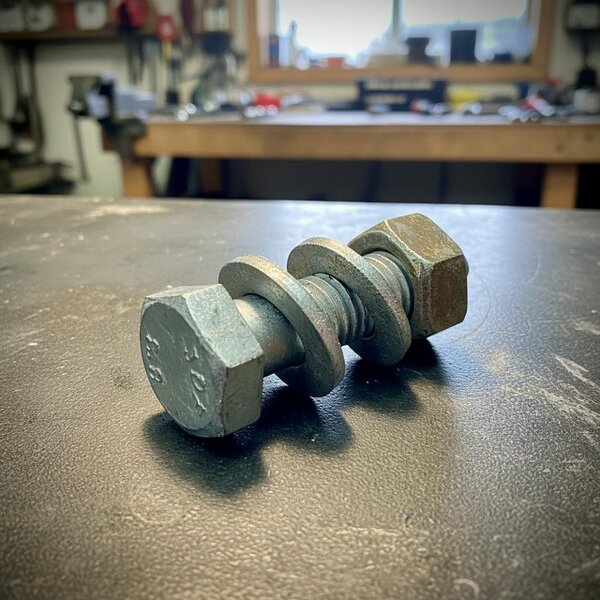

For structural fastening applications, this Fixaball M12 hex bolt set includes a partially threaded high tensile steel grade 8.8 bolt with a galvanised finish, supplied with 1 full hex nut and 2 Form A washers. Manufactured to DIN 931, it suits assemblies where a plain shank bolt, nut and washers are required together.

Each set is based around an M12 metric coarse thread bolt and is available in a choice of lengths. The included nut is M12 full hex nut class 6, with 2 M12 washers supplied per bolt.

Available options

• M12 x 45
• M12 x 50
• M12 x 60
• M12 x 65
• M12 x 70
• M12 x 75
• M12 x 80
• M12 x 90
• M12 x 100
• M12 x 110
• M12 x 130
• M12 x 150

Key features

• Thread size: M12
• Partially threaded hexagon head bolt
• High tensile steel grade 8.8
• Galvanised finish
• Supplied with 1 x M12 full hex nut (cl. 6)
• Supplied with 2 x M12 Form A washers
• Standards: DIN 931, ISO 4014

Specifications

• Metric coarse thread pitch: 1.75
• Metric fine thread pitch: 1.5
• Metric super fine thread pitch: 1.25
• Width across flat (DIN 931): 18.67 min, 19.00 max
• Width across flat (ISO 4014): 17.73 min, 18.00 max
• DIN 931 thread length for lengths ≥125: 30
• DIN 931 thread length for lengths >125≥200: 36
• DIN 931 thread length for lengths ≥200: 49
• Spanner size for M12: 19mm

Sizing

• M12 x 45
• M12 x 50
• M12 x 60
• M12 x 65
• M12 x 70
• M12 x 75
• M12 x 80
• M12 x 90
• M12 x 100
• M12 x 110
• M12 x 130
• M12 x 150

Rackhams Reference : 5M3M1SX4GT
