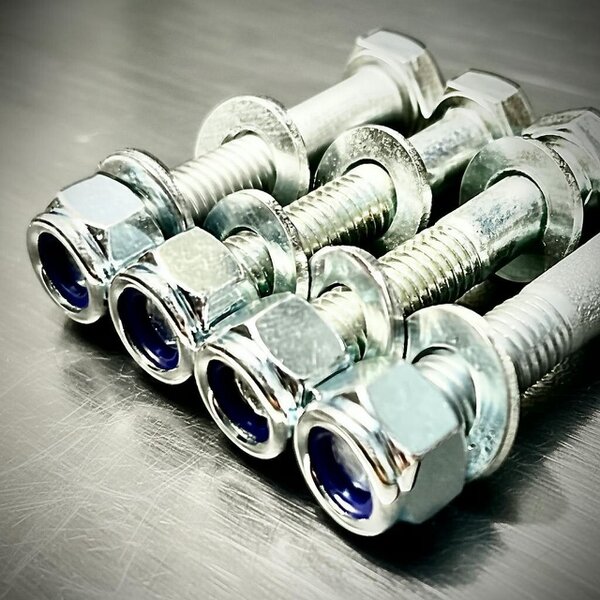

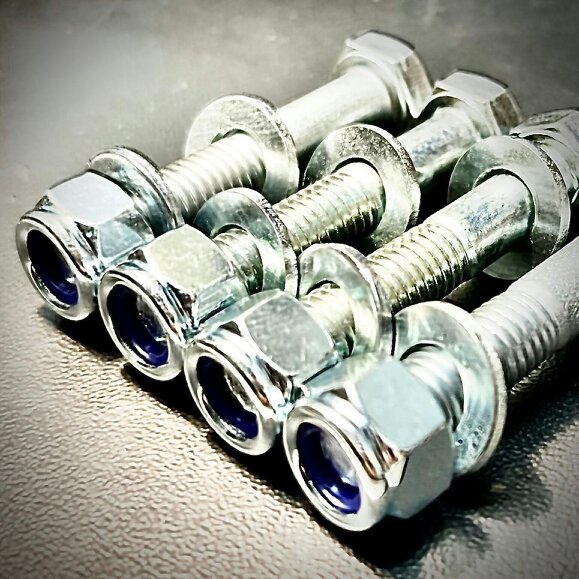

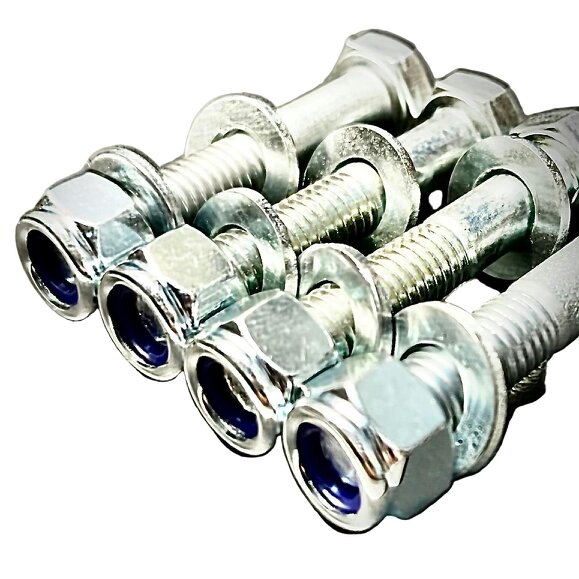

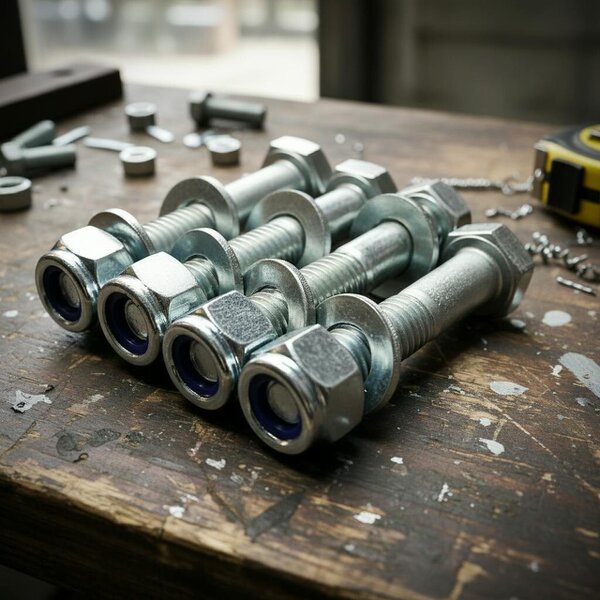

Fixaball M16 Hex Bolt Nyloc Washers 8.8 High Tensile BZP Zinc

For structural fastening applications, this Fixaball M16 hexagon head bolt set includes a partially threaded DIN 931 bolt, one nyloc nut and 2 Form A washers. Made from steel grade 8.8 with a zinc plated finish, it suits assemblies that require a metric coarse thread fastener used with a nut and washers.

Each set is based around an M16 bolt with a part plain shank. A range of lengths is available, making it suitable where the required fixing length varies across the same thread size.

Key features

• M16 diameter
• Steel grade 8.8
• Zinc plated finish
• DIN 931
• Includes 1 nyloc nut and 2 Form A washers
• Metric coarse thread

Specifications

• Thread size: M16
• Thread pitch: 2.0
• Spanner size: 24mm
• Width across flat (s): 23.67 min, 24.00 max
• DIN 931 thread length for lengths ≥125: 38
• DIN 931 thread length for lengths >125≥200: 44
• DIN 931 thread length for lengths ≥200: 57
• ISO 4014 thread length for lengths ≥125: 38
• ISO 4014 thread length for lengths >125≥200: 44

Available options

• M16 x 45
• M16 x 50
• M16 x 55
• M16 x 60
• M16 x 65
• M16 x 70
• M16 x 75
• M16 x 80
• M16 x 90
• M16 x 100
• M16 x 110
• M16 x 120
• M16 x 130
• M16 x 140
• M16 x 150
• M16 x 160
• M16 x 170
• M16 x 180
• M16 x 190
• M16 x 200
• M16 x 220
• M16 x 240
• M16 x 260
• M16 x 280
• M16 x 300

Sizing

• M16 x 45
• M16 x 50
• M16 x 55
• M16 x 60
• M16 x 65
• M16 x 70
• M16 x 75
• M16 x 80
• M16 x 90
• M16 x 100
• M16 x 110
• M16 x 120
• M16 x 130
• M16 x 140
• M16 x 150
• M16 x 160
• M16 x 170
• M16 x 180
• M16 x 190
• M16 x 200
• M16 x 220
• M16 x 240
• M16 x 260
• M16 x 280
• M16 x 300

Rackhams Reference : 26ESIM3CA8
