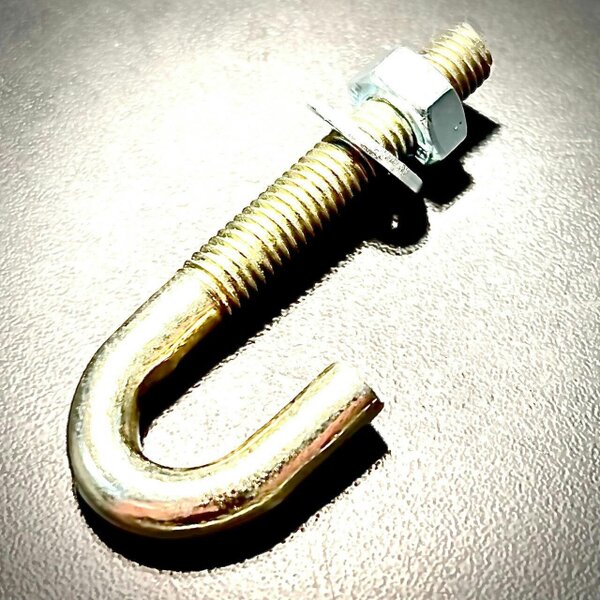

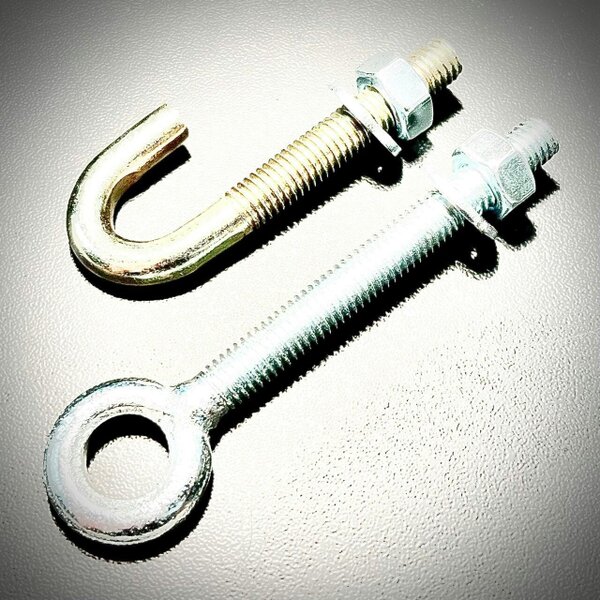

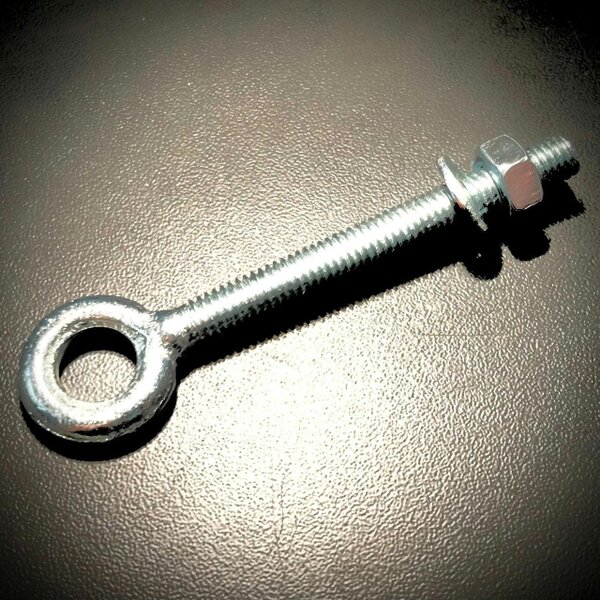

Fixaball Eyebolts Hookbolts Wire Cable Rope Fixings Full Hex Nut Washer

For hanging wire, string or rope, these Fixaball forged eyebolts and hook bolts are supplied with a full hexagon nut and Form A washer per item. Made from 4.8 grade mild steel with a zinc-plated finish, they are available in M6, M8, M10 and M12 sizes.

The forged eye provides a closed fixing with higher tensile resistance than a bent eyebolt. These fittings can be screwed directly into wood, passed through a pre-drilled hole and secured with the supplied nut and washer, or set into masonry with epoxy resin. A closed eye offers a more secure fixing, while a hook bolt suits temporary or intermittent hanging.

Available options

• M6 eyebolt
• M8 eyebolt
• M10 eyebolt
• M12 eyebolt
• M6 hook bolt
• M8 hook bolt
• M10 hook bolt
• M12 hook bolt

Key features

• 4.8 grade mild steel
• Zinc-plated finish
• Supplied with 1 full hexagon nut and 1 Form A washer per item
• Suitable for hanging catenary wire, string and rope
• Thread sizes: M6, M8, M10 and M12

Sizing

• M6: 6mm thread diameter, 50mm thread length, 18mm external eye diameter
• M8: 8mm thread diameter, 70mm thread length, 22mm external eye diameter
• M10: 10mm thread diameter, 80mm thread length, 25mm external eye diameter
• M12: 12mm thread diameter, 100mm thread length, 32mm external eye diameter

Rackhams Reference : RZB1QHYQH1
