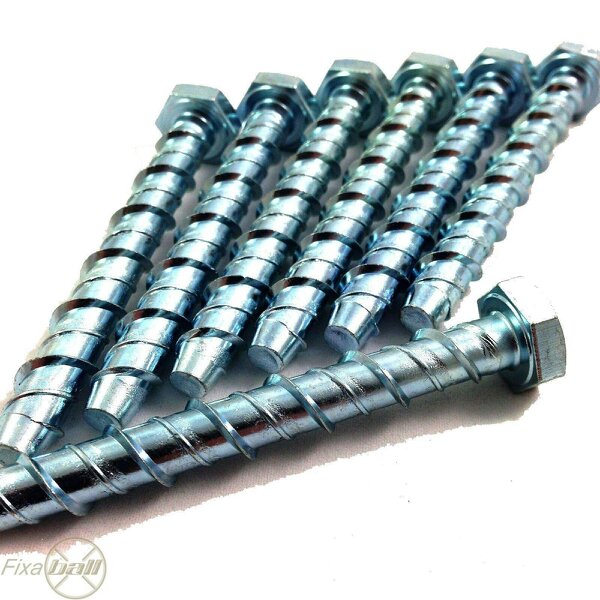

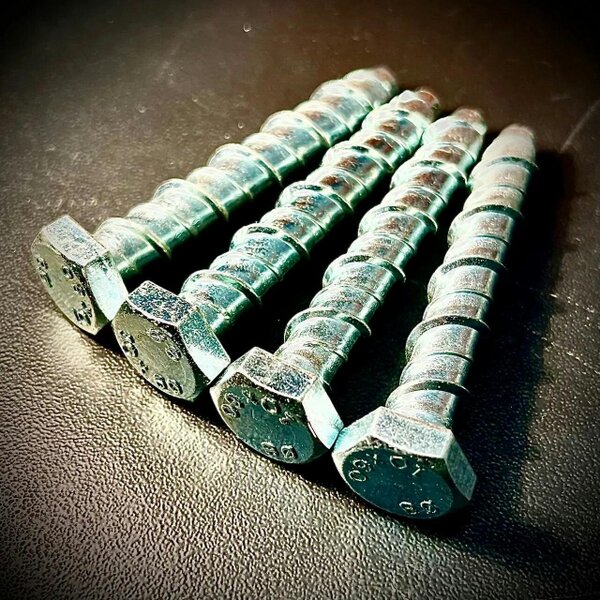

Fixaball M16 Concrete Anchor Screw Hex Self Tapping High Tensile BZP

For masonry and concrete fixing, the Fixaball JCP Anker M16 concrete anchor screw uses a self-tapping concave thread and a hexagon head for direct installation into the substrate. This zinc mechanically galvanised plated anchor is classed as a non-expansion fixing, making it suitable for medium duty anchoring into concrete, brick, stone, wood and concrete block.

The thread cuts into the base material during installation, allowing the fixing to be adjusted or removed where required. Installation is carried out by drilling the correct hole, clearing dust and debris, and tightening with a socket wrench or hexagon adaptor.

Available options

• 16mm x 75mm
• 16mm x 100mm
• 16mm x 130mm
• 16mm x 150mm
• 16mm x 200mm

Key features

• Diameter: 16mm shank with 18mm self tapping thread
• Material and finish: zinc mechanically galvanised plated
• Hexagon head
• Self-tapping concave thread
• Non-expansion through fixing
• Suitable for concrete, brick, stone, wood and concrete block

Specifications

• Masonry drill bit size: 16mm
• Socket size to fit hex head: 27mm
• Over drill hole depth by 10/ 20mm

Safety information

• Do not put any stress or load onto the concrete screws until the concrete has fully cured.
• Use an additional washer to spread the load of the fixing.

Rackhams Reference : BRGZXR8VL2
