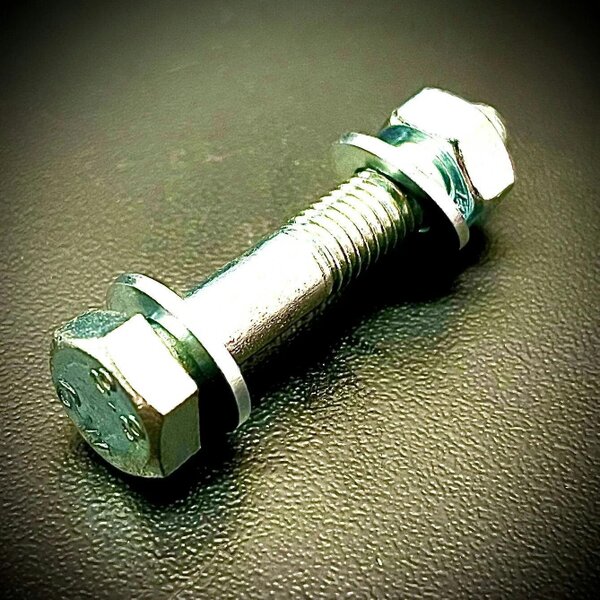

Fixaball M16 Hex Bolt Nut Washers High Tensile 8.8 BZP

For structural fastening applications, this Fixaball M16 hexagon head bolt set includes a partially threaded DIN 931 bolt in high tensile steel grade 8.8 with a zinc plated finish, supplied with a full hex nut and 2 Form A washers. The part plain shank configuration suits assemblies where a nut and washers are required.

Available in a wide range of lengths, each set uses a metric coarse M16 thread with a 2.0 thread pitch. The zinc coating adds moisture resistance to the steel and provides a bright finish for internal applications.

Available options

• M16 x 45
• M16 x 50
• M16 x 55
• M16 x 60
• M16 x 65
• M16 x 70
• M16 x 75
• M16 x 80
• M16 x 90
• M16 x 100
• M16 x 110
• M16 x 120
• M16 x 130
• M16 x 140
• M16 x 150
• M16 x 160
• M16 x 170
• M16 x 180
• M16 x 190
• M16 x 200
• M16 x 220
• M16 x 240
• M16 x 260
• M16 x 280
• M16 x 300

Key features

• M16 partially threaded hexagon head bolt
• High tensile steel grade 8.8
• Zinc plated finish
• DIN 931
• Metric coarse thread
• Thread pitch: 2.0
• Supplied with 1 full hex nut and 2 Form A washers

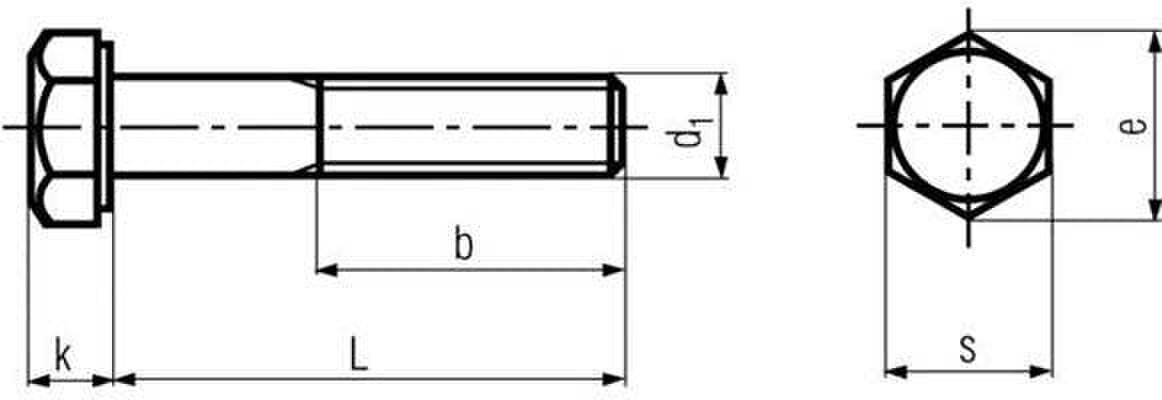

Specifications

• ISO 4014
• Width across flat (s): 23.67 min, 24.00 max
• Spanner size: 24mm
• Thread length for DIN 931 length ≥125: 38
• Thread length for DIN 931 length >125≥200: 44
• Thread length for DIN 931 length ≥200: 57

What's included

• 1 x M16 hexagon head bolt
• 1 x full hex nut
• 2 x Form A washers

Rackhams Reference : 2Q11861IQR
