Fixaball M16 Wall Shield Anchor Stud Nut Masonry Concrete Brick

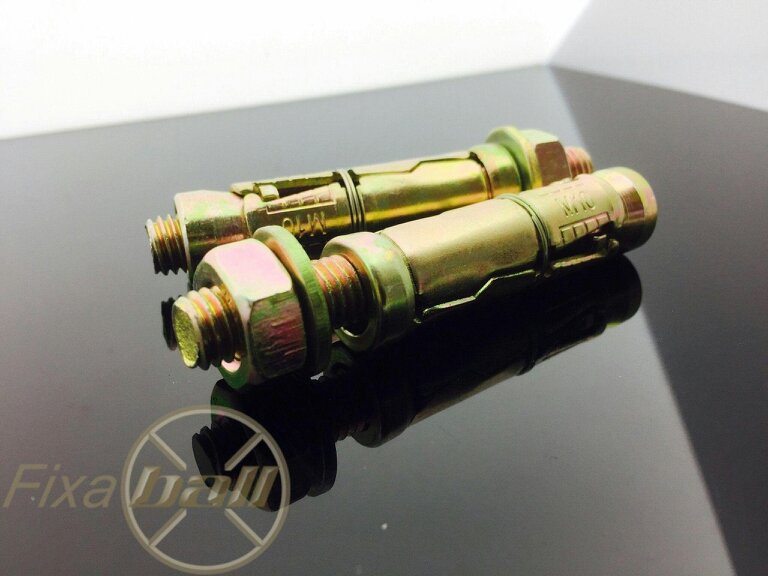

For heavy-duty masonry fixing, the Fixaball M16 wall shield anchor uses a projecting stud with nut and washer to secure fixtures into concrete, brick, block and non-porous stone. This nut and stud type anchor expands at three points as the nut is tightened, helping it accommodate holes that vary in size or quality.

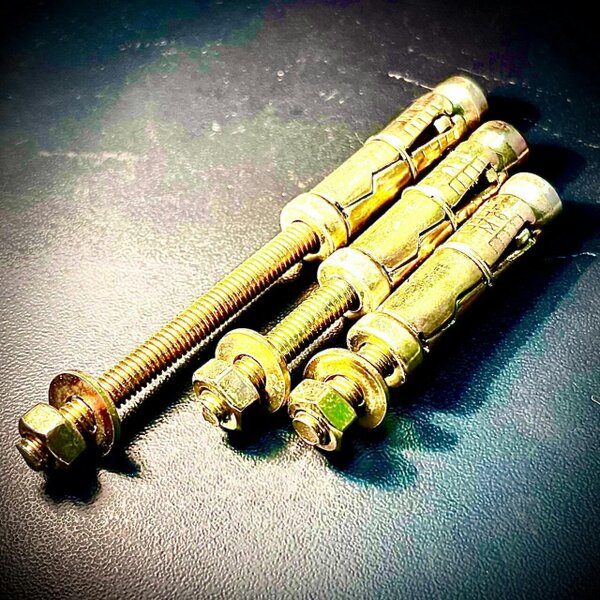

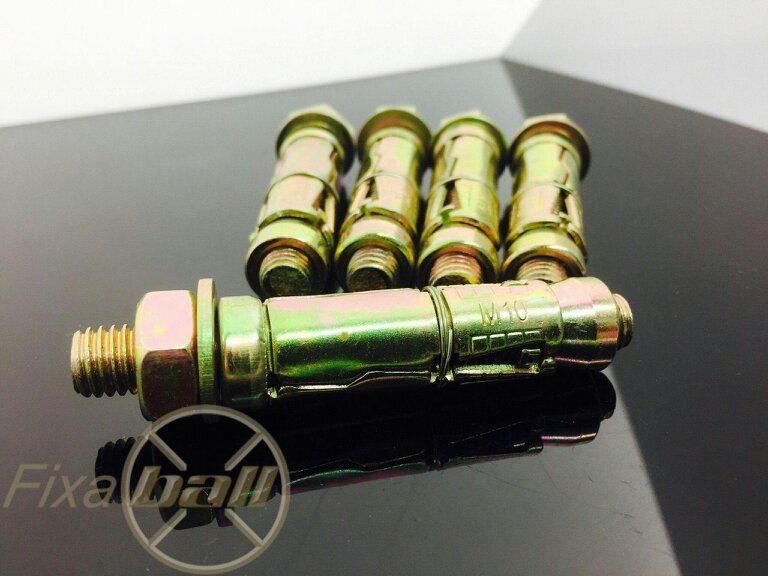

The assembly includes a 3 part shield and a high tensile grade 8.8 threaded bar. A maximum joining thickness of 35mm is stated, making it suitable where the projecting threaded section is needed to locate materials during installation.

Key features

• Diameter: M16 / 16mm
• High tensile grade 8.8 threaded bar
• 3 part shield with nut and washer
• Suitable for concrete, brick, block and non-porous stone
• Expands at 3 points as the nut is tightened
• Maximum joining thickness: 35mm

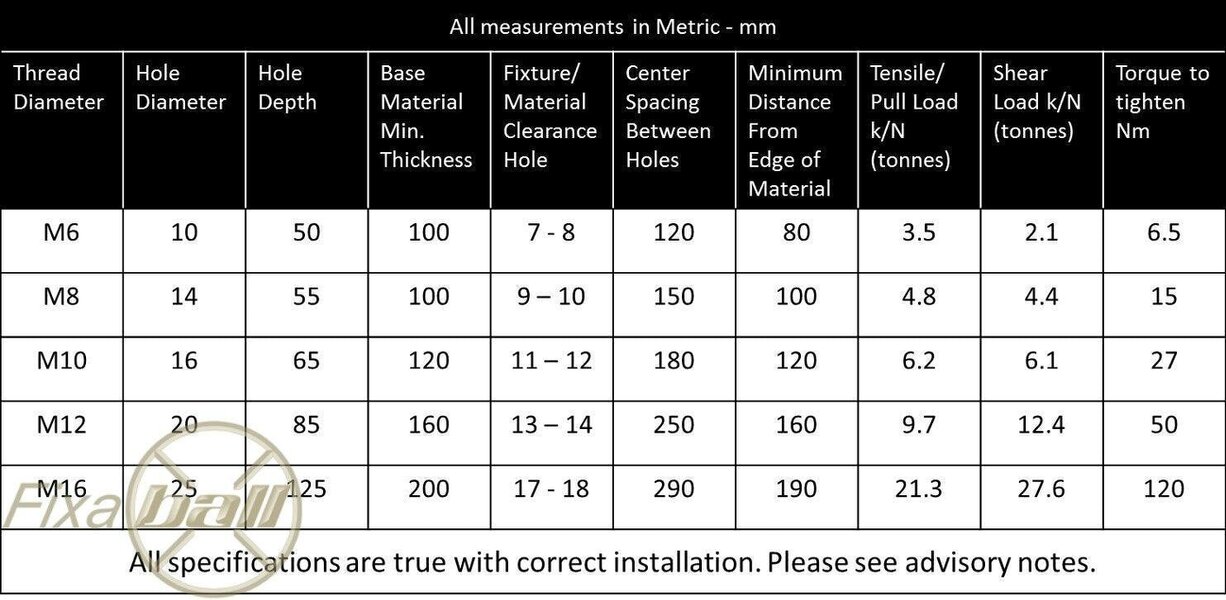

Specifications

• Thread diameter: M16
• Hole diameter: 25
• Hole depth: 125
• Fixture / material clearance hole: 17 - 18
• Center spacing between holes: 290
• Minimum distance from edge of material: 190
• Tensile / pull load: 21.3
• Shear load: 27.6
• Torque to tighten: 120 Nm

Safety information

• Take care not to damage the thread during installation.
• Performance depends on correct installation and the grade of the base material.

Rackhams Reference : NT3YVI1U87
