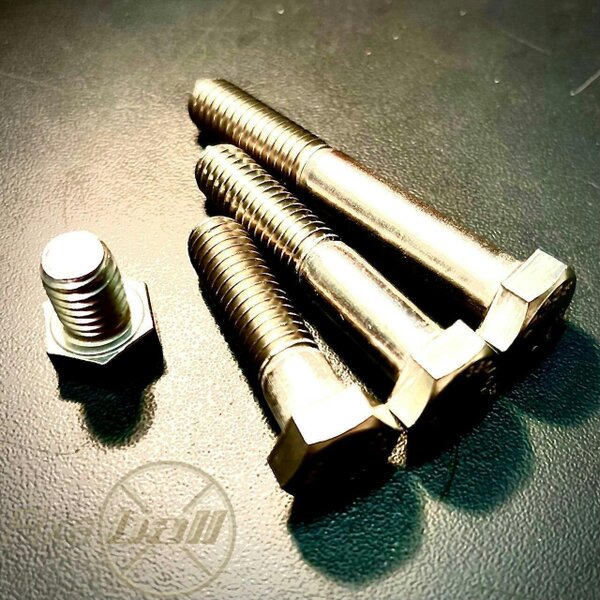

Fixaball UNC 7/8" Hex Bolt Set Screws A2 304 Stainless Steel

For inch-threaded fastening applications, the Fixaball UNC 7/8" hex bolt and hex set screw range is produced in A2 / 304 stainless steel with a DIN 931 specification. This selection includes both fully threaded hexagon set screws and partially threaded hexagon bolts in 7/8"-9 UNC.

Partially threaded options are suited to use with a nut and washer, while fully threaded versions provide the same hexagon head format with thread running the full length. Length is measured from the underside of the head to the end of the fastener.

Available options

• 7/8"-9 x 1 1/2" - fully threaded
• 7/8"-9 x 2" - fully threaded
• 7/8"-9 x 2 1/4" - fully threaded
• 7/8"-9 x 2 3/4" - fully threaded
• 7/8"-9 x 3" - partially threaded
• 7/8"-9 x 3 1/4" - partially threaded
• 7/8"-9 x 3 1/2" - partially threaded
• 7/8"-9 x 3 3/4" - partially threaded
• 7/8"-9 x 4" - partially threaded
• 7/8"-9 x 4 1/4" - partially threaded
• 7/8"-9 x 5 1/2" - partially threaded
• 7/8"-9 x 6" - partially threaded
• 7/8"-9 x 8" - partially threaded

Key features

• Thread size: UNC 7/8"-9
• Material: A2 / 304 stainless steel
• Standard: DIN 931
• Hexagon head pattern
• Available as fully threaded hexagon set screws and partially threaded hexagon bolts

Specifications

• Unified National Coarse (UNC) thread form
• 60 degree flank angle
• Rounded roots and flat crests
• Unified thread based on inch sizes

Sizing

• 7/8"-9 x 1 1/2"
• 7/8"-9 x 2"
• 7/8"-9 x 2 1/4"
• 7/8"-9 x 2 3/4"
• 7/8"-9 x 3"
• 7/8"-9 x 3 1/4"
• 7/8"-9 x 3 1/2"
• 7/8"-9 x 3 3/4"
• 7/8"-9 x 4"
• 7/8"-9 x 4 1/4"
• 7/8"-9 x 5 1/2"
• 7/8"-9 x 6"
• 7/8"-9 x 8"

Rackhams Reference : Q8WB49W3QX
