Fixaball M18 Hex Bolt Nut Washers High Tensile 8.8 BZP

For structural and general fastening applications, this Fixaball M18 hexagon head bolt set includes a partially threaded high tensile steel grade 8.8 bolt with a zinc plated finish, supplied with a full hex nut and 2 Form A washers. Manufactured to DIN 931, it uses a standard coarse M18 thread with a 2.5 mm pitch.

Each bolt has a part plain shank and is available in a choice of lengths from 60 mm to 120 mm. The zinc coating adds moisture resistance to the steel and suits internal applications where a bright finish is preferred.

Available options

• 60 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 120 mm

Key features

• Diameter: M18
• Material and finish: high tensile steel grade 8.8, zinc plated
• Supplied with 1 full hex nut and 2 Form A washers
• Standard coarse thread
• Thread pitch: 2.5 mm
• Standards compliance: DIN 931, ISO 4014
• Spanner size: 27 mm

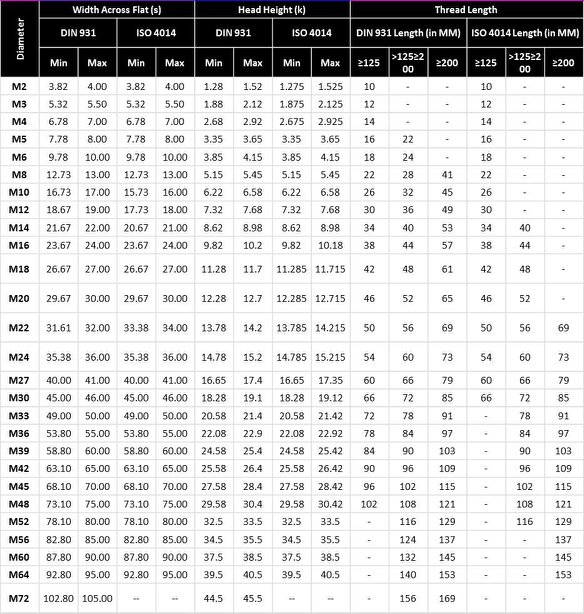

Specifications

• Width across flat (s): 26.67 min, 27.00 max
• DIN 931 thread length for lengths ≥125: 42
• DIN 931 thread length for lengths >125≥200: 48
• DIN 931 thread length for lengths ≥200: 61
• ISO 4014 thread length for lengths ≥125: 42
• ISO 4014 thread length for lengths >125≥200: 48

Sizing

• 60 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 120 mm
