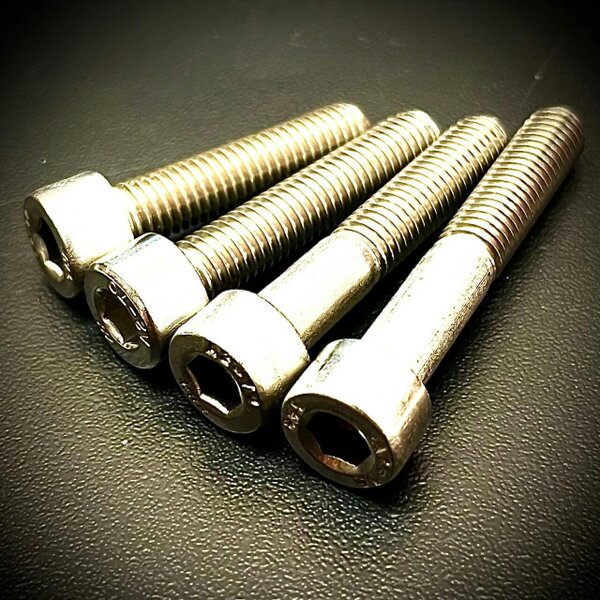

Fixaball M6 Socket Cap Allen Screw Bolt A4/316 Stainless Steel DIN 912

For corrosion-resistant fastening in exposed environments, this Fixaball M6 socket cap screw bolt is manufactured from A4/316 stainless steel with a plain finish. It features a standard coarse M6 x 1.0mm metric thread and an Allen socket cap head to DIN 912 and ISO 4762.

Suitable where a marine grade stainless steel fixing is required, it has a 10.2mm head diameter, 6mm head height and takes a 5mm Allen key. Bolt lengths are measured excluding the head.

Available options

• M6 x 10
• M6 x 12
• M6 x 16
• M6 x 20
• M6 x 25
• M6 x 30
• M6 x 35
• M6 x 40
• M6 x 50
• M6 x 60
• M6 x 65

Key features

• Diameter: M6
• Material and finish: A4/316 stainless steel, plain finish
• Thread: standard coarse M6 x 1.0mm pitch
• Standards: DIN 912, ISO 4762

Specifications

• Head diameter: 10.2mm
• Head height: 6mm
• Allen key size: 5mm
• Bolt lengths do not include the head

Sizing

• M6 x 10
• M6 x 12
• M6 x 16
• M6 x 20
• M6 x 25
• M6 x 30
• M6 x 35
• M6 x 40
• M6 x 50
• M6 x 60
• M6 x 65

Rackhams Reference : U9Z5SR1LD3
