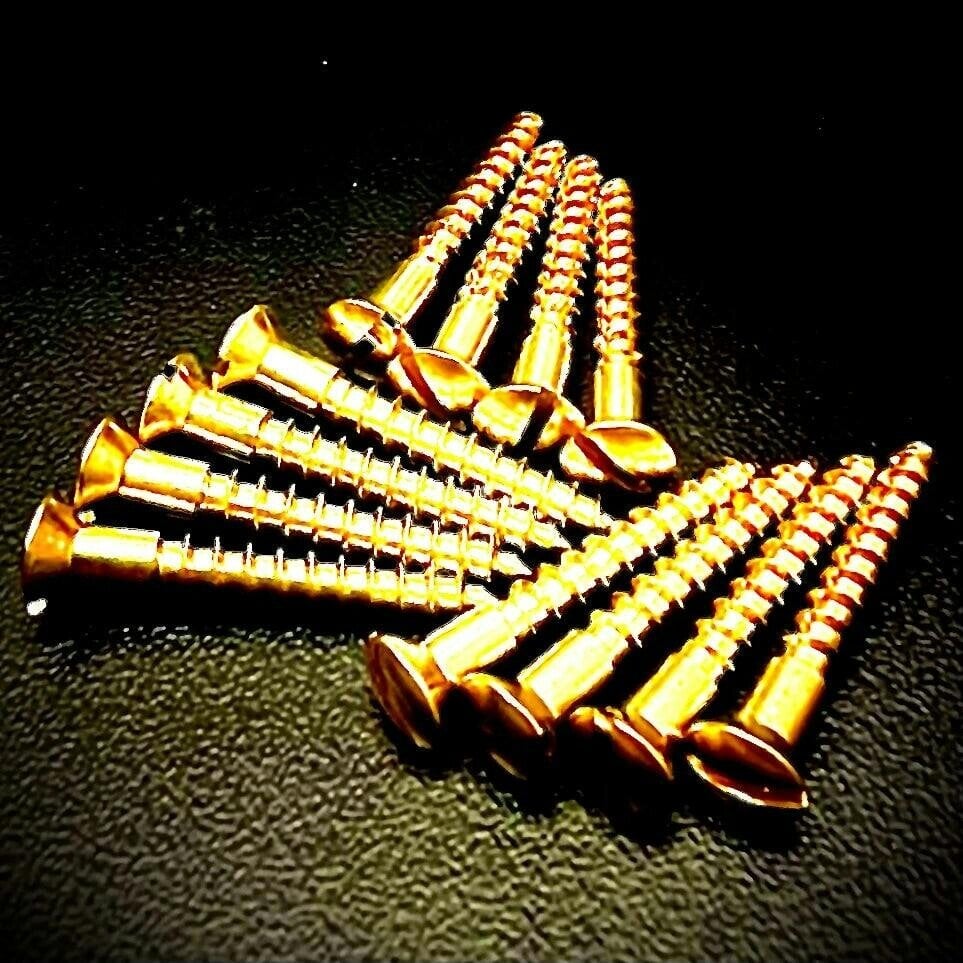

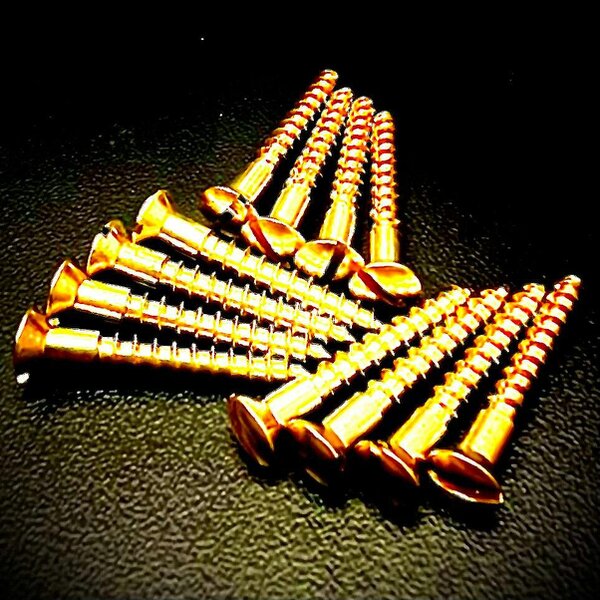

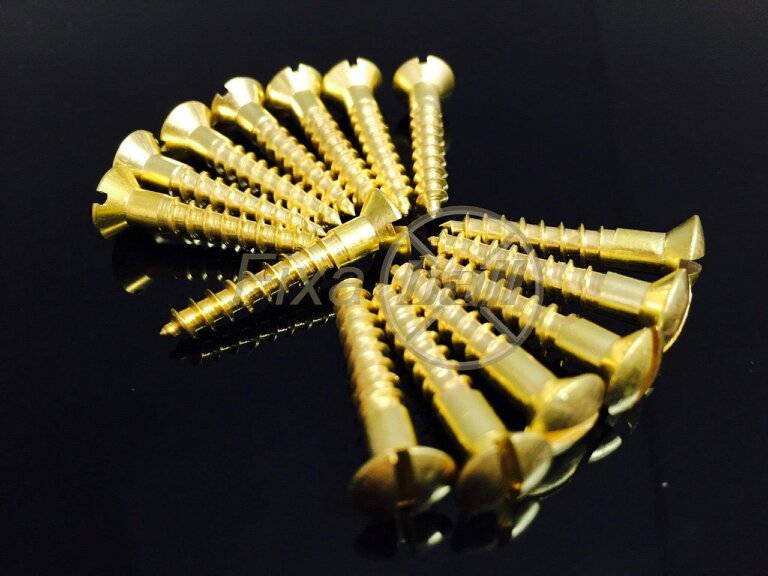

Fixaball Brass Raised Countersunk Slotted Woodscrews

For joinery and general wood fixing where a traditional brass finish is required, these Fixaball solid brass wood screws combine a raised countersunk head with a slotted drive. They are manufactured from solid brass rather than brass plated brass.

Available in No. 4, No. 6 and No. 8 gauges, each size has its own stated thread and head diameter. Lengths are measured from the rim of the head to the tip, making selection clearer across the available size range.

Key features

• Solid brass construction
• Raised countersunk head
• Slotted head
• Available in No. 4, No. 6 and No. 8 gauges

Available options

• 4g x 1/2" (3. 0 x 12mm)
• 4g x 5/8" (3. 0 x 16mm)
• 4g x 3/4" (3. 0 x 20mm)
• 6g x 5/8" (3. 5 x 16mm)
• 6g x 3/4" (3. 5 x 20mm)
• 6g x 1" (3. 5 x 25mm)
• 6g x 1. 1/4" (3. 5 x 30mm)
• 6g x 1. 1/2" (3. 5 x 40mm)
• 8g x 3/4" (4. 0 x 20mm)
• 8g x 1" (4. 0 x 25mm)
• 8g x 1. 1/4" (4. 0 x 30mm)
• 8g x 1. 1/2" (4. 0 x 40mm)
• 8g x 2" (4. 0 x 50mm)

Specifications

• No. 4 = 2. 8mm thread diameter; 5. 3mm head diameter
• No. 6 = 3. 5mm thread diameter; 6. 5mm head diameter
• No. 8 = 4mm thread diameter; 8mm head diameter

Sizing

Screw lengths are measured from the rim of the head to the tip.

Rackhams Reference : BM7VBHDH1E
