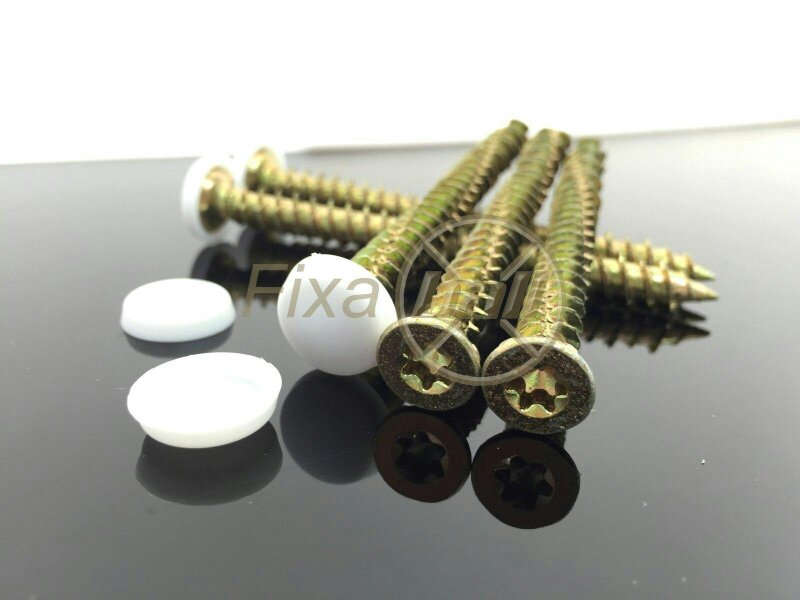

Fixaball Masonry Frame Staircase Screw Plus Cap Countersunk ZYP

For fixing window, door and staircase frames, these Fixaball countersunk concrete and masonry frame screws combine a 7.5mm diameter with a T30 Torx drive. They are made from hardened steel with a zinc yellow passivated finish and cut their own thread into a pre-drilled hole, removing the need for a plug or sleeve.

Suitable for concrete, brickwork and other masonry substrates, they are used for baton, window and door frame fixing. The through-fixing design helps avoid marking and repositioning, while the low-stress fixing action supports close-to-edge applications. White caps are included.

Available options

• 7.5 x 50mm
• 7.5 x 60mm
• 7.5 x 80mm
• 7.5 x 90mm
• 7.5 x 100mm
• 7.5 x 120mm
• 7.5 x 150mm
• 7.5 x 180mm

Key features

• 7.5mm diameter
• Hardened steel, self-tapping
• Zinc yellow passivated finish
• Countersunk frame screw with T30 Torx drive
• No plug or sleeve required
• Suitable for concrete, brickwork and most masonry substrates
• Drill size: 6mm

Specifications

• Insert bit size: T30
• Drill size: 6mm
• Min. hole depth: 45mm

Sizing

• 7.5 x 40mm
• 7.5 x 50mm
• 7.5 x 60mm
• 7.5 x 70mm
• 7.5 x 80mm
• 7.5 x 90mm
• 7.5 x 100mm
• 7.5 x 112mm
• 7.5 x 122mm
• 7.5 x 132mm
• 7.5 x 152mm
• 7.5 x 182mm
• 7.5 x 202mm

What's included

T30 bit

Rackhams Reference : DPPXMWXUJQ
