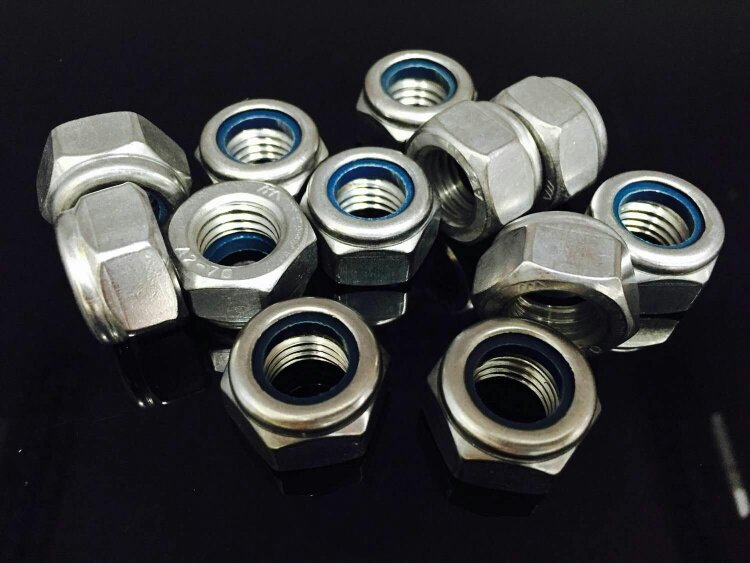

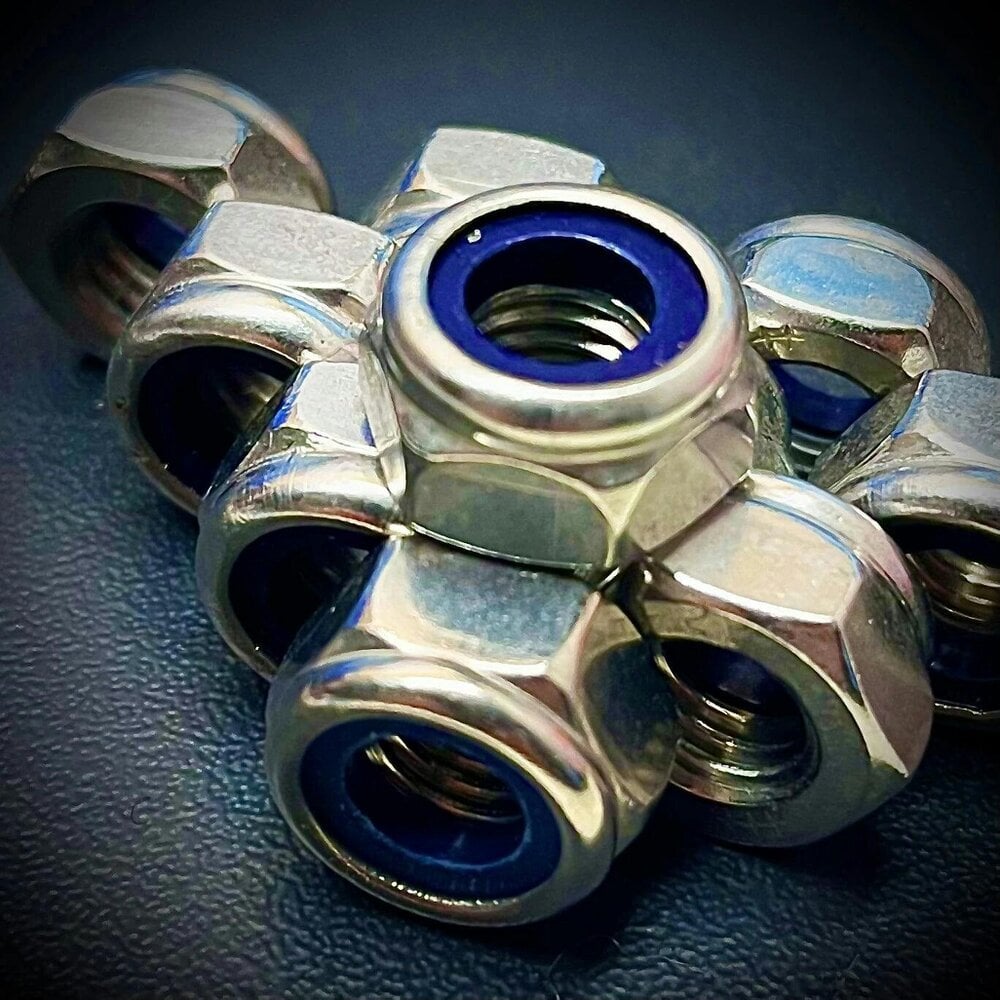

Fixaball Metric Hex Nyloc Nut A2 304 Stainless Steel T-Type DIN 985

For vibration-prone threaded assemblies, the Fixaball Type-T Nyloc Nut provides a locking nut in A2/304 stainless steel. Manufactured to DIN 985, this thin-pattern nylon insert nut uses a nylon insert with a smaller internal diameter, allowing the mating fastener to cut into the insert and increase compression around the thread.

Suitable where a more secure threaded connection is required, it is available in a wide range of metric sizes and thread pitches. The nylon insert is effective up to 121C.

Available options

• M3-0.50
• M4-0.70
• M5-0.80
• M6-1.00
• M8-1.25
• M10-1.50
• M12-1.75
• M14-2.00
• M16-2.00
• M18-2.50
• M20-2.50
• M22-2.50
• M24-3.00

Key features

• A2/304 stainless steel
• Type-T thin pattern nylon insert nut
• DIN 985
• Stainless steel grade: A2-70
• Metric sizes available from M3-0.50 to M24-3.00

Specifications

• Nylon insert effective up to 121C
• Thread form: metric
• Nut type: nylon insert locking nut

Rackhams Reference : MGANRJM7TN
