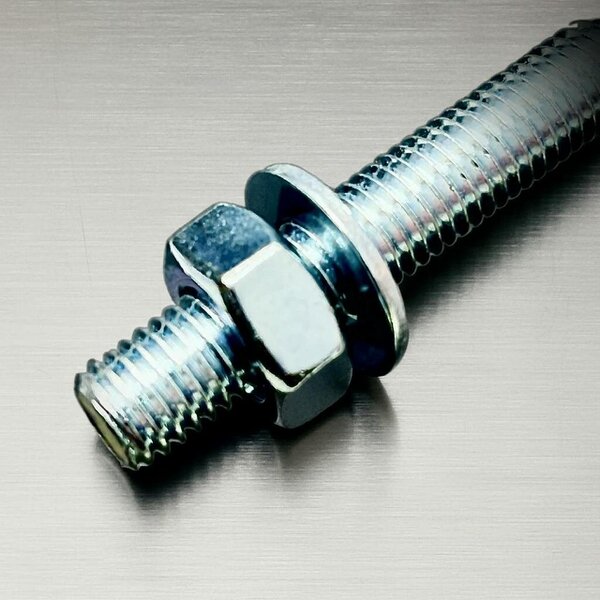

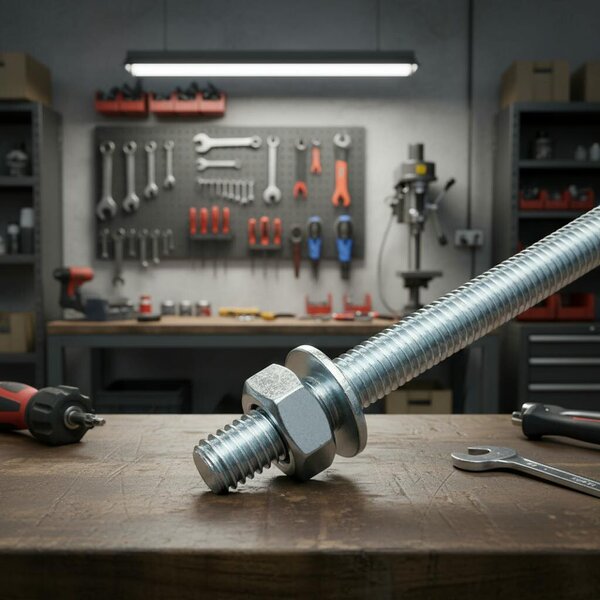

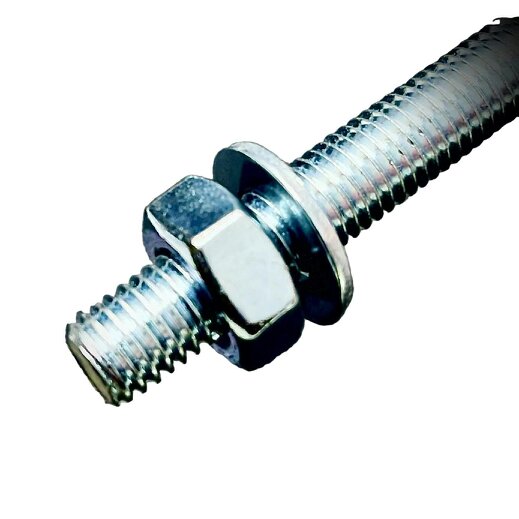

Fixaball Chemical Anchor Resin Studs Plain End Chisel Tip Grade 5.8 Zinc BZP

For resin-based anchoring in structural and industrial settings, these Fixaball JCP chemical anchor studs are CE Approved and made from Grade 5.8 steel with a zinc finish. Each stud has a plain end and chisel tip, and is approved for use with both capsules and injection resin for flexible installation across a range of fixing applications.

Suitable for steelwork constructions, façades, guard rails, staircases, masts, steel consoles, silo installations, skirting protection and anchoring heavy machines, this range covers multiple metric sizes and lengths.

Key features

• CE Approved chemical anchor studs
• Grade 5.8 steel
• Zinc plated and clear passivated finish

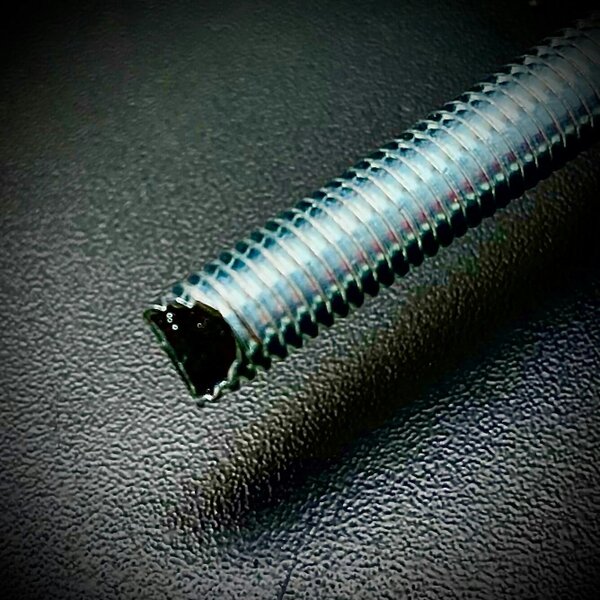

• Plain end with chisel tip
• Suitable for use with capsules and injection resin

Available options

• 8 x 150
• 10 x 130
• 12 x 160
• 16 x 190
• 20 x 260
• 24 x 300
• 30 x 380

Specifications

• 8 x 150: anchor hole diameter 10, maximum fixture thickness 30mm, anchor length 110mm
• 10 x 130: anchor hole diameter 12, maximum fixture thickness 25mm, anchor length 130mm
• 12 x 160: anchor hole diameter 14, maximum fixture thickness 34mm, anchor length 160mm
• 16 x 190: anchor hole diameter 18, maximum fixture thickness 45mm, anchor length 190mm
• 20 x 260: anchor hole diameter 25, maximum fixture thickness 55mm, anchor length 260mm
• 24 x 300: anchor hole diameter 28, maximum fixture thickness 67mm, anchor length 300mm
• 30 x 380: anchor hole diameter 35, maximum fixture thickness 78mm, anchor length 380mm

Safety information

• Check that the substrate is stable before fixing.
• Use the correct drill bit size for the selected stud.
• Drill holes square to a minimum depth of the anchor length - maximum fixture thickness + 10mm.
• Clean the hole with the correct sized brush and blow out dust before installation.
• Use a suitable chemical resin.
• Turn the stud gently while depressing it downwards, sitting around 10mm from the bottom of the hole.
• Missing installation details will impair the performance of the stud and may make it unsafe.
