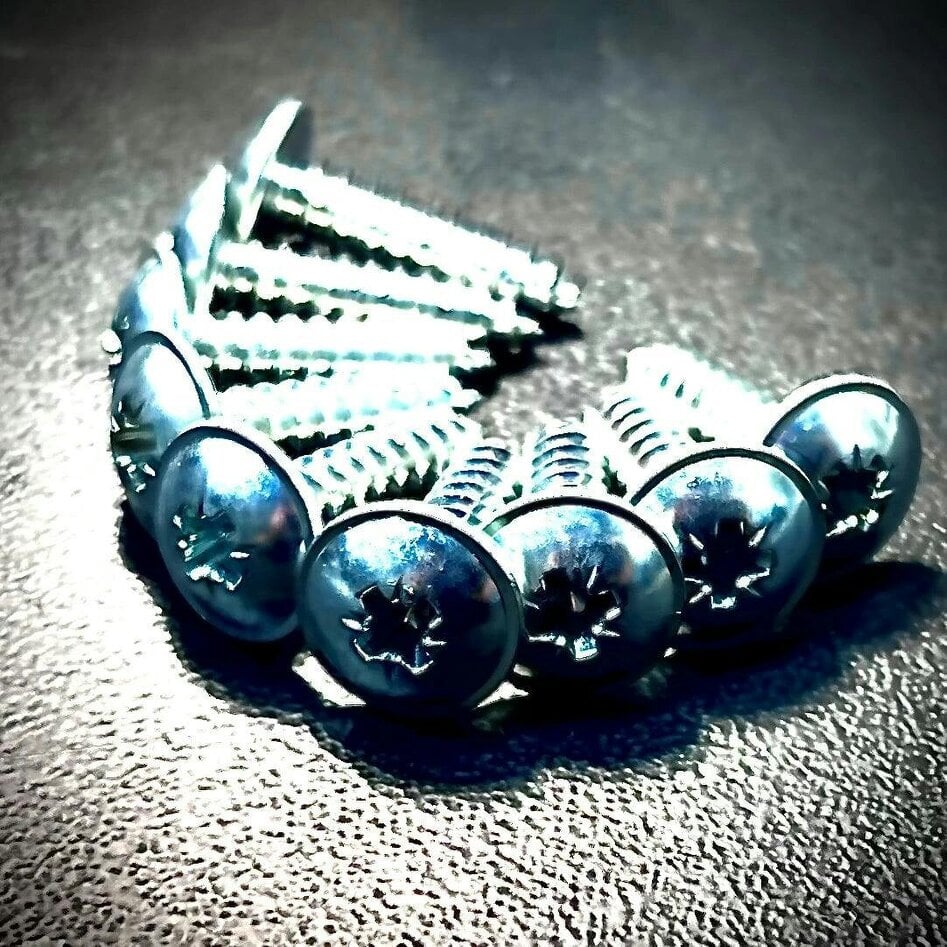

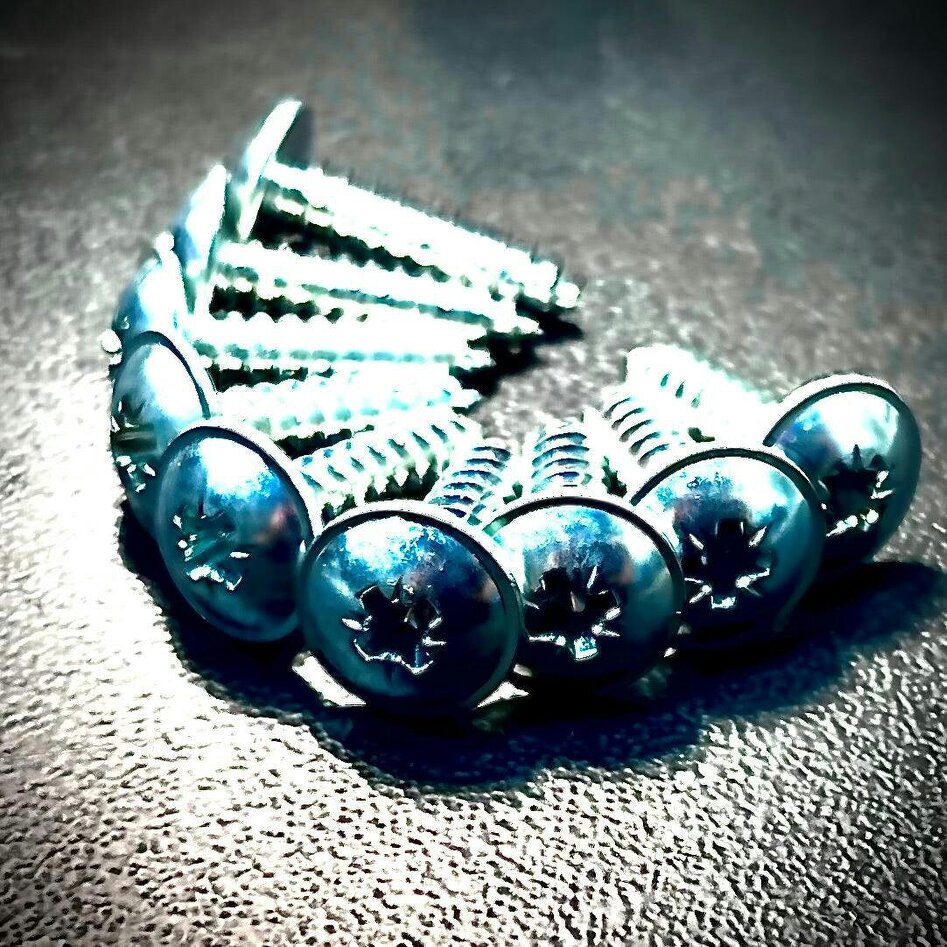

Fixaball No. 10 Pozi Flange Self Tapping Screws AB Point BZP

For sheet metal and hard plastics, these Fixaball No. 10 self-tapping screws combine a Pozi recessed drive with a flange head and AB point. Finished in zinc plating, they are made to BS 4174 and sit proud of the material, while the flange head helps spread the load.

Each screw has a No. 10 size with a 4.8mm screw diameter, an 11.2mm head diameter and a 3mm head height. Length options are available from 3/8 to 1, with all lengths measured from the underside of the head.

Available options

• 10 x 3/8 (4.1mm x 9.5mm)
• 10 x ½ (4.1mm x 13mm)
• 10 x 5/8 (4.1mm x 15.9mm)
• 10 x ¾ (4.1mm x 19mm)
• 10 x 1 (4.1mm x 25.4mm)

Key features

• No. 10 self-tapping screws
• Pozi recessed drive
• Flange head
• AB point
• Zinc plated finish
• BS 4174

Sizing

• Screw dia. 4.8mm
• Head dia. 11.2mm
• Head height 3mm
• All screw lengths are measured from the underside of the head

Rackhams Reference : TKPYLCW3BI
