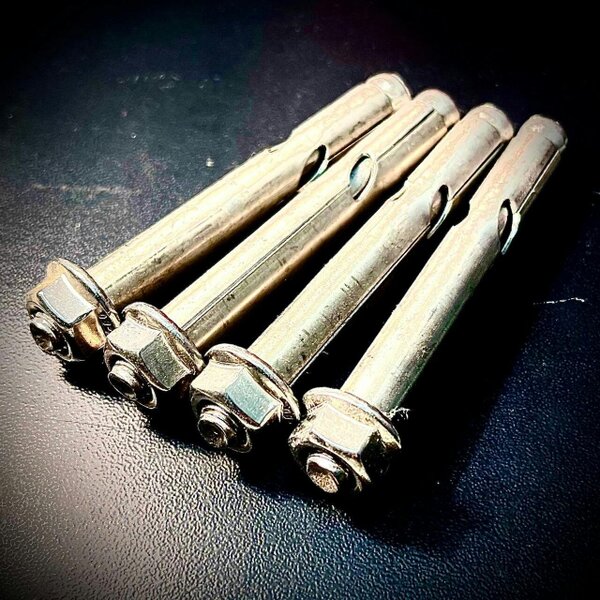

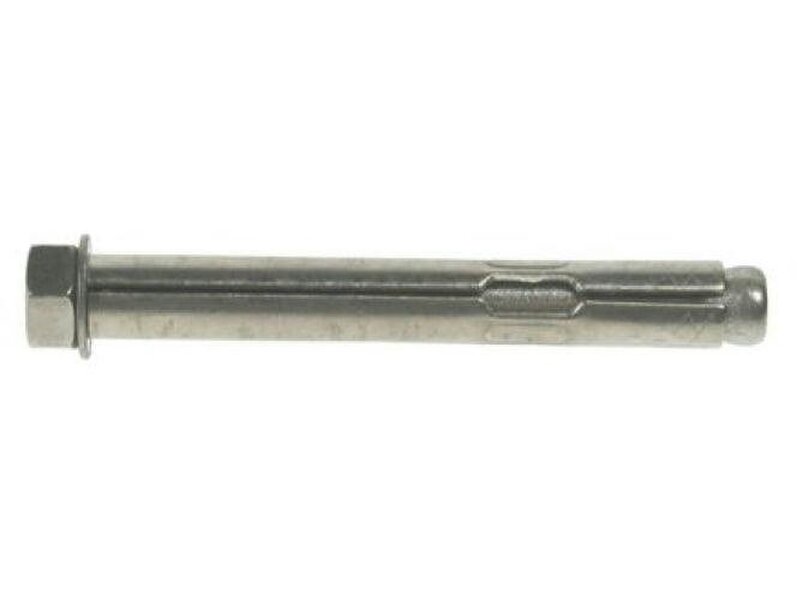

Fixaball Sleeve Anchors Nut Type A4 Stainless Steel

For masonry and concrete fixings, Fixaball sleeve anchors in A4/316 stainless steel provide a nut-type expansion anchor for brick, block, concrete and stone. The thin-walled sleeve suits use in concrete, stone, brickwork, perforated bricks and dense concrete blocks, with a diagonal slot that pulls small gaps down to apply clamping force through the fixture.

A4/316 stainless steel is suitable where the fixing depends on resistance to constant weathering and chemical attack. This marine grade material resists corrosion and degradation under continuous, mild chemical exposure, including salt spray.

Available options

• 6mm anchor hole size, 60mm anchor length
• 8mm anchor hole size, 40mm anchor length
• 8mm anchor hole size, 65mm anchor length
• 10mm anchor hole size, 50mm anchor length
• 10mm anchor hole size, 75mm anchor length
• 10mm anchor hole size, 100mm anchor length
• 12mm anchor hole size, 60mm anchor length
• 12mm anchor hole size, 75mm anchor length
• 12mm anchor hole size, 100mm anchor length

Key features

• Material: A4/316 stainless steel
• Nut-type sleeve anchor
• Suitable for concrete, stone, brickwork, perforated bricks and dense concrete blocks
• Diagonal slot pulls down small gaps to exert clamping force through the fixture

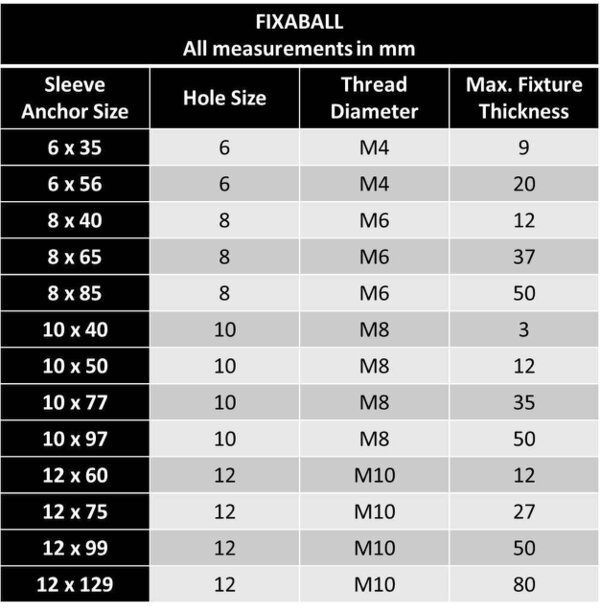

Specifications

• 6 x 35: hole size 6, thread diameter M4, max. fixture thickness 9
• 6 x 56: hole size 6, thread diameter M4, max. fixture thickness 20
• 8 x 40: hole size 8, thread diameter M6, max. fixture thickness 12
• 8 x 65: hole size 8, thread diameter M6, max. fixture thickness 37
• 8 x 85: hole size 8, thread diameter M6, max. fixture thickness 50
• 10 x 40: hole size 10, thread diameter M8, max. fixture thickness 3
• 10 x 50: hole size 10, thread diameter M8, max. fixture thickness 12
• 10 x 77: hole size 10, thread diameter M8, max. fixture thickness 35
• 10 x 97: hole size 10, thread diameter M8, max. fixture thickness 50
• 12 x 60: hole size 12, thread diameter M10, max. fixture thickness 12
• 12 x 75: hole size 12, thread diameter M10, max. fixture thickness 27
• 12 x 99: hole size 12, thread diameter M10, max. fixture thickness 50
• 12 x 129: hole size 12, thread diameter M10, max. fixture thickness 80

Care and maintenance

• Drill the correct size hole.
• Clear and clean the hole before installation.
• Place the anchor in the hole and tighten the nut to set it.

Rackhams Reference : BUC9YEANAL
