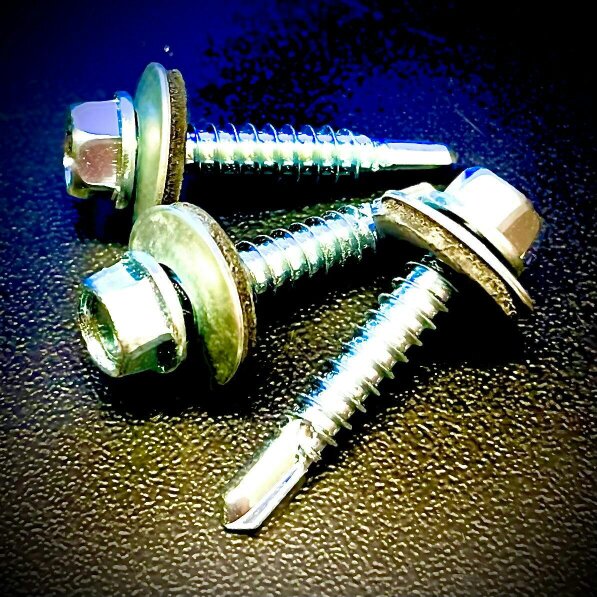

Fixaball Tech Cladding Self Drilling Screw EPDM Washer Light

For steel-to-steel fixing in thin light section material, JCP Metalfix self-drilling cladding and roofing screws are supplied with a 16mm EPDM washer and zinc plated finish. This light section fixing suits steel thicknesses from 1.2mm to 3.6mm and is used in the construction of industrial units.

Each screw features a hexagon head for an 8mm socket. The 16mm washer combines an aluminium flange with an EPDM rubber seal, which expands under pressure to form a permanent weather seal and help prevent water ingress.

Key features

• Suitable for fixing steel to steel
• Light section application for 1.2mm to 3.6mm thick steel
• 16mm washer with EPDM rubber seal
• Zinc plated finish
• Hexagon head with 8mm socket
• Manufactured from C1022 steel case hardened
• DIN 7504K
• Minimum 8µm

Specifications

• Application: constructing industrial units
• High-clamping action
• Permanent weather seal
• EPDM washer helps prevent water ingress

Available options

• 5.5 x 25mm
• 5.5 x 32mm
• 5.5 x 38mm
• 5.5 x 43mm
• 5.5 x 50mm
• 5.5 x 57mm
• 5.5 x 70mm
• 5.5 x 75mm

Rackhams Reference : P4AVEWGFNI
