Fixaball Tech Cladding Stitcher EPDM washers

For steel sheet roofing and cladding, these Metalfix self-drilling stitcher screws are supplied with either a 16mm or 19mm EPDM sealing washer. Suitable for steel sheet to steel sheet fixing, they are used for up to 3 sheets at 0.7mm thick, with a total thickness of 2.1mm, and are specified for constructing industrial units.

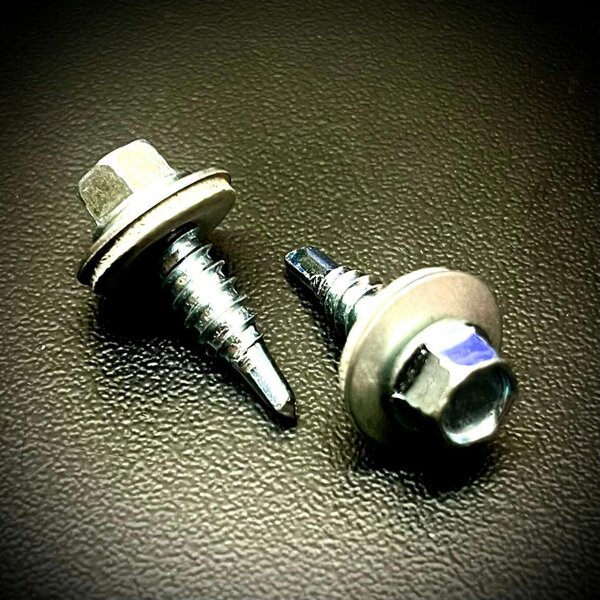

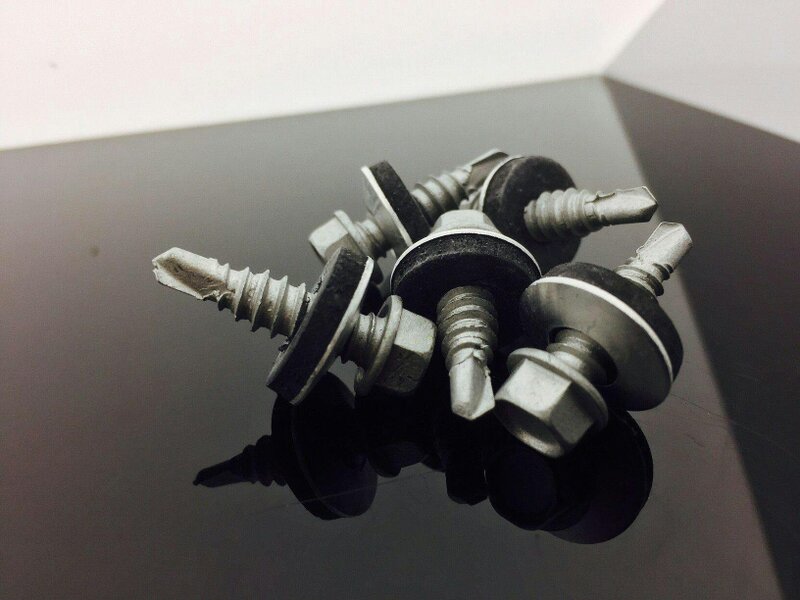

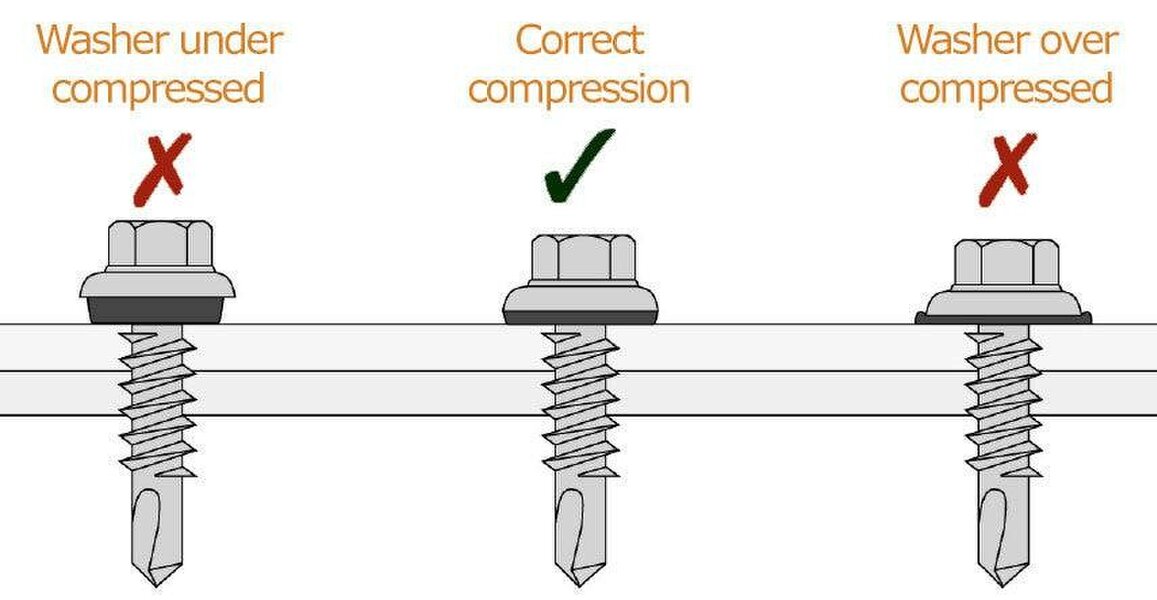

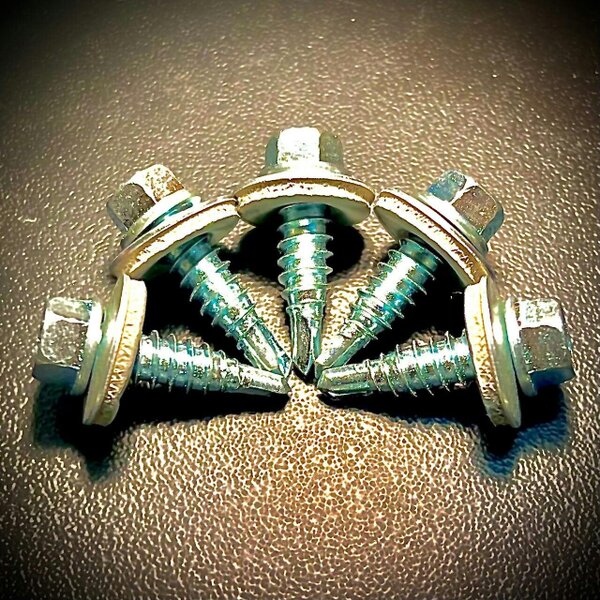

Each screw has a hexagon head for an 8mm socket. The EPDM rubber seal sits beneath an aluminium flange and expands under pressure to create a permanent weather-seal. Selected variants are finished with zinc plating, while A2-304 stainless steel options are also available.

Available options

• DIN 7504K BZP, 16mm washer, 6.3 x 22mm
• DIN 7504K BZP, 19mm washer, 6.3 x 22mm
• DIN 7504K BZP, 16mm washer, 6.3 x 25mm
• DIN 7504K BZP, 19mm washer, 6.3 x 25mm
• A2-304 stainless steel, 16mm washer, 6.3 x 25mm
• A2-304 stainless steel, 16mm washer, 6.3 x 35mm

Key features

• Thread diameter: 6.3mm
• Material and finish options: zinc plated steel or A2-304 stainless steel
• Washer options: 16mm or 19mm EPDM sealing washer
• Hexagon head with 8mm socket
• Steel sheet to steel sheet fixing
• DIN 7504K on BZP variants

Specifications

• Steel sheet to steel sheet: up to 3 sheets 0.7mm thick (2.1mm total thickness)

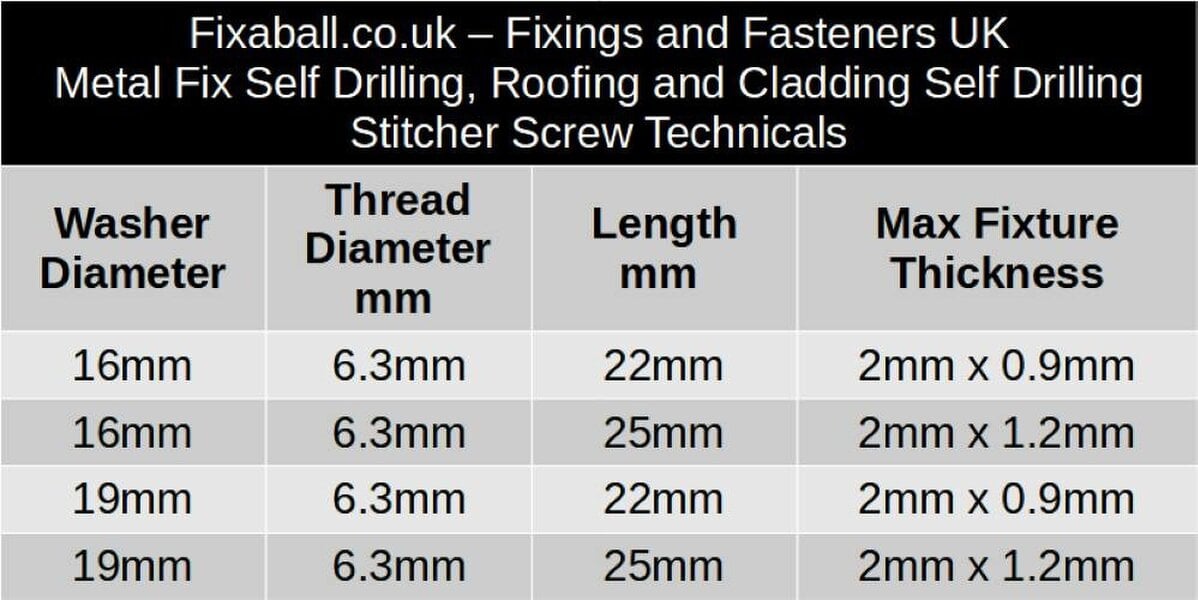

• 16mm washer, 6.3mm thread diameter, 22mm length, max fixture thickness 2mm x 0.9mm
• 16mm washer, 6.3mm thread diameter, 25mm length, max fixture thickness 2mm x 1.2mm
• 19mm washer, 6.3mm thread diameter, 22mm length, max fixture thickness 2mm x 0.9mm
• 19mm washer, 6.3mm thread diameter, 25mm length, max fixture thickness 2mm x 1.2mm

Sizing

• 6.3 x 22mm
• 6.3 x 25mm
• 6.3 x 35mm

Rackhams Reference : WFCCA7RP84
