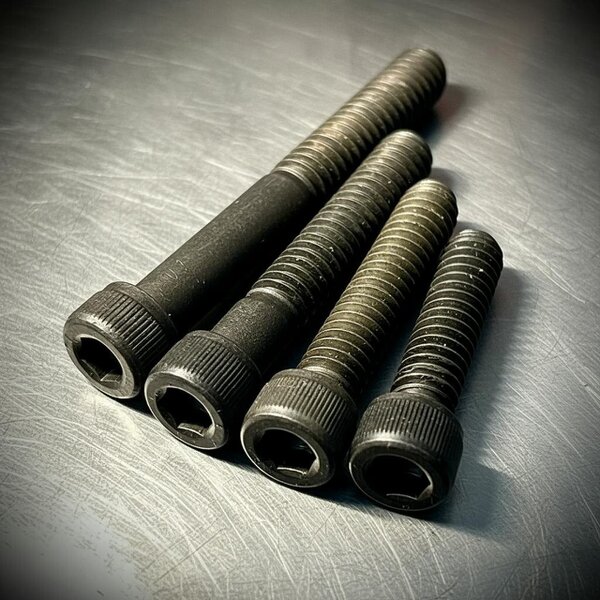

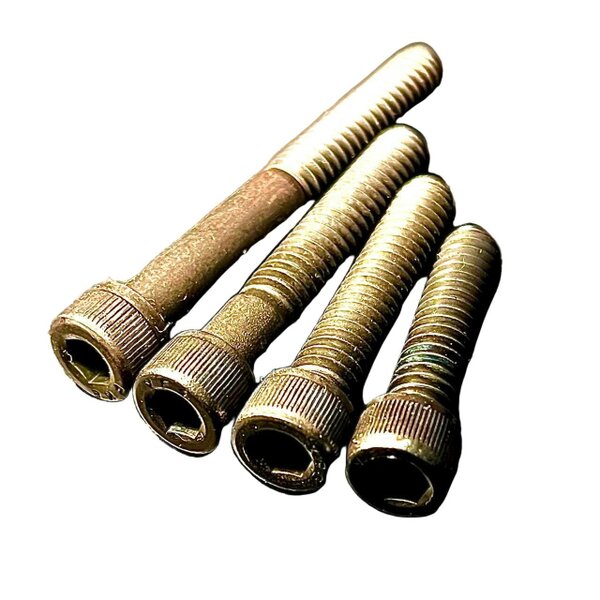

Fixaball UNC 1" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

For heavy-duty fastening applications, this Fixaball socket cap screw features a 1" UNC coarse thread with 8 TPI and a high tensile 12.9 grade. It has a self colour finish and conforms to DIN 912, ISO 4762 and BS 2470.

Produced in high tensile steel with no surface treatment, the finish is black in appearance and offers low corrosion resistance without further treatment. It is suited to conditions with no exposure to moisture and where greasing or oiling is used.

Available options

• 1"-8 x 1 1/2" (FT)
• 1"-8 x 1 3/4" (FT)
• 1"-8 x 2 1/4" (FT)
• 1"-8 x 2 1/2" (FT)
• 1"-8 x 2 3/4" (FT)
• 1"-8 x 3" (FT)
• 1"-8 x 4" (PT)
• 1"-8 x 5" (PT)
• 1"-8 x 5 1/2" (PT)
• 1"-8 x 6" (PT)

Key features

• 1" UNC coarse pitch thread
• 8 TPI
• High tensile steel
• Self colour finish
• Grade 12.9
• Allen hex socket cap head
• Conforms to DIN 912, ISO 4762 and BS 2470

Specifications

• Conforming to ASME/ ANSI B18. 3 1960 Series
• UNC pitch: 8
• UNF pitch: 12
• a max: 1. 31
• ds max: 1. 00
• h max: 1. 00
• j nom: 5/8

Safety information

Low corrosion resistance without further surface treatment.

Rackhams Reference : IRD2SE8P2C
