Fixaball Tech Cladding Self Drilling Screw EPDM Washer Heavy

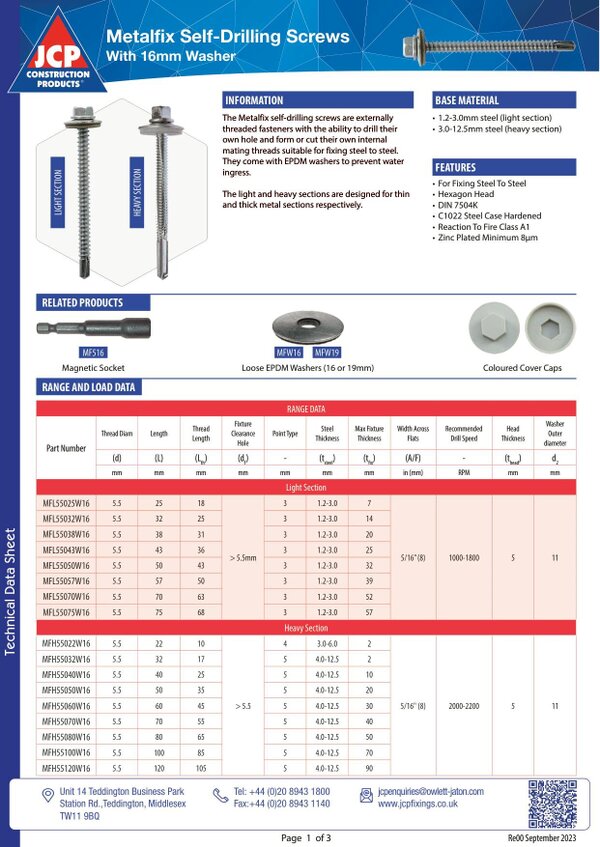

For steel-to-steel fixing in heavier sections, these JCP Metalfix self-drilling cladding and roofing screws are finished in zinc plated steel and made from C1022 steel case hardened. They are suitable for steel thicknesses from 4mm to 12.5mm and are used in the construction of industrial units.

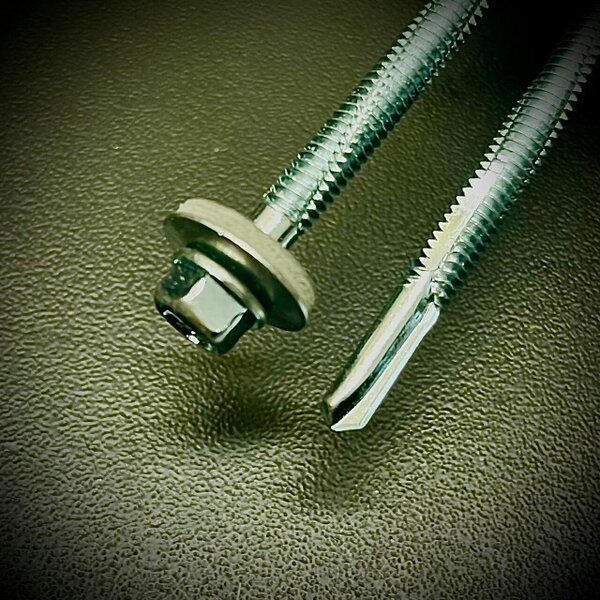

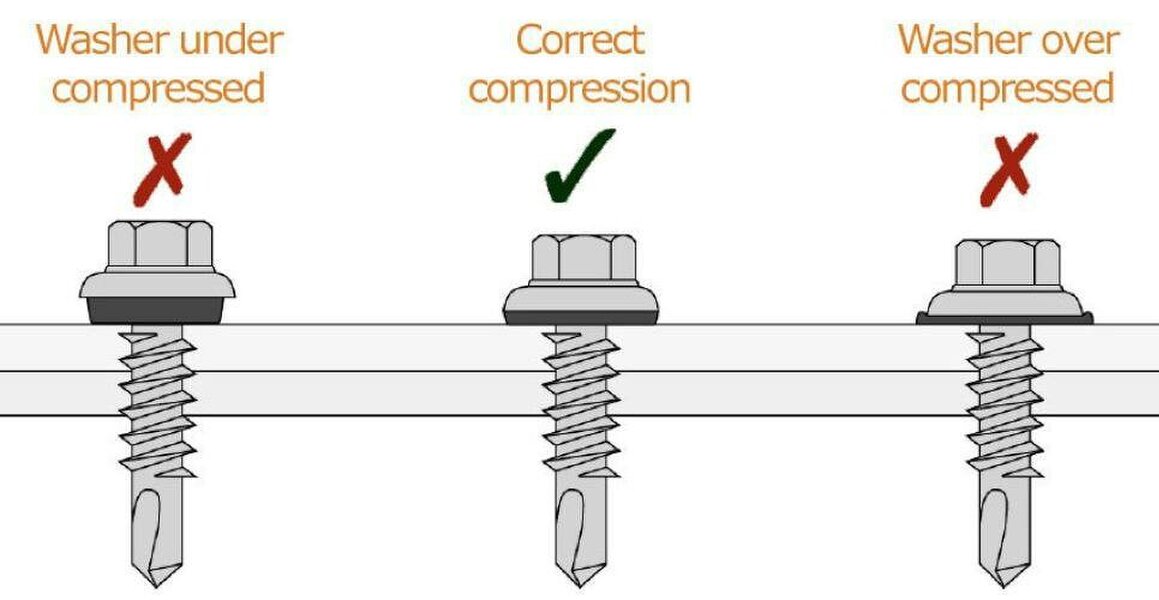

Each screw is supplied with a 16mm washer and EPDM seal. Beneath the aluminium flange, the rubber washer expands under pressure to form a permanent weather seal. The hexagon head suits an 8mm socket.

Available options

• 5.5 x 22mm
• 5.5 x 32mm
• 5.5 x 40mm
• 5.5 x 50mm
• 5.5 x 60mm
• 5.5 x 70mm
• 5.5 x 80mm
• 5.5 x 100mm
• 5.5 x 120mm

Key features

• Suitable for fixing steel to steel
• Heavy section fixing for thick steel from 4mm to 12.5mm thick
• Zinc plated finish
• 16mm washer with EPDM seal
• Hexagon head with 8mm socket
• DIN 7504K
• C1022 steel case hardened
• Minimum 8µm

Specifications

• Application: constructing industrial units
• EPDM washer helps prevent water ingress
• High-clamping action
• Permanent weather seal formed under pressure

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : BJ5P3UWUNB
