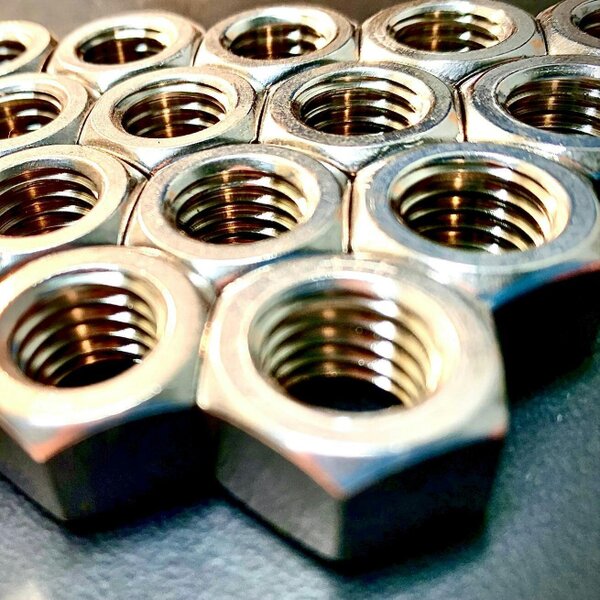

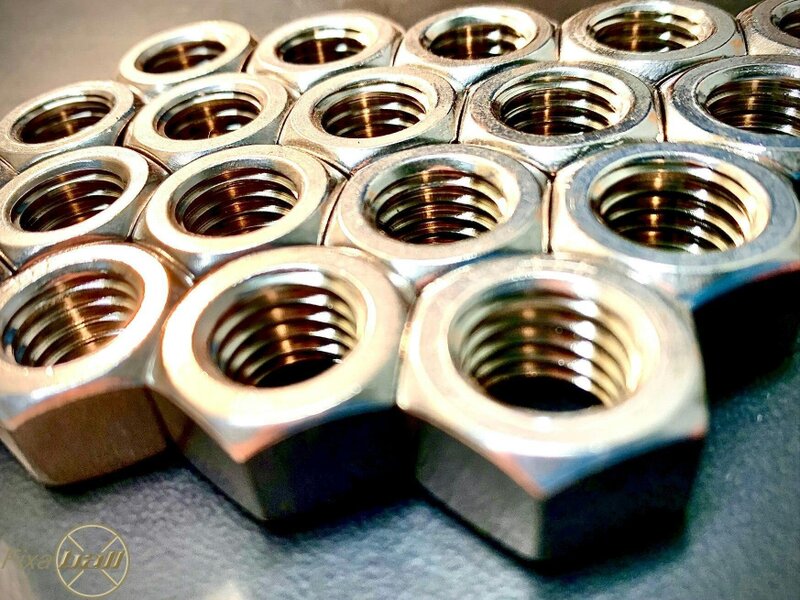

Fixaball UNC Full Hex Nut A2-70/ 304 Stainless Steel DIN 934

For imperial fastening applications, this Fixaball UNC full hex nut is manufactured from A2-70 / 304 stainless steel. It is produced to DIN 934 and BS 1768, with Unified Coarse thread sizes available from 1/4" to 1".

The hexagonal form suits use with matching UNC threaded bolts across a range of assembly and fixing tasks where imperial thread standards are required.

Available options

• 1/4"-20 UNC
• 5/16"-18 UNC
• 3/8"-16 UNC
• 7/16"-14 UNC
• 1/2"-13 UNC
• 9/16"-12 UNC
• 5/8"-11 UNC
• 3/4"-10 UNC
• 7/8"-9 UNC
• 1"-8 UNC

Key features

• A2-70 / 304 stainless steel
• UNC full hex nut
• Standards: DIN 934, BS 1768, ASME B18. 2. 2
• Imperial thread sizes from 1/4" to 1"

Specifications

Thread data

• 1/4: T. P. I UNC 20, T. P. I UNF 28, f (max) 0. 438, h (max) 0. 226
• 5/16: T. P. I UNC 18, T. P. I UNF 24, f (max) 0. 500, h (max) 0. 273
• 3/8: T. P. I UNC 16, T. P. I UNF 24, f (max) 0. 562, h (max) 0. 337
• 7/16: T. P. I UNC 14, T. P. I UNF 20, f (max) 0. 688, h (max) 0. 385
• 1/2: T. P. I UNC 13, T. P. I UNF 20, f (max) 0. 750, h (max) 0. 448
• 9/16: T. P. I UNC 12, T. P. I UNF 18, f (max) 0. 875, h (max) 0. 496
• 5/8: T. P. I UNC 11, T. P. I UNF 18, f (max) 0. 938, h (max) 0. 559
• 3/4: T. P. I UNC 10, T. P. I UNF 16, f (max) 1. 125, h (max) 0. 665
• 7/8: T. P. I UNC 9, T. P. I UNF 14, f (max) 1. 312, h (max) 0. 776
• 1: T. P. I UNC 8, T. P. I UNF 12, f (max) 1. 500, h (max) 0. 887

Rackhams Reference : 93DPTDPNEH
