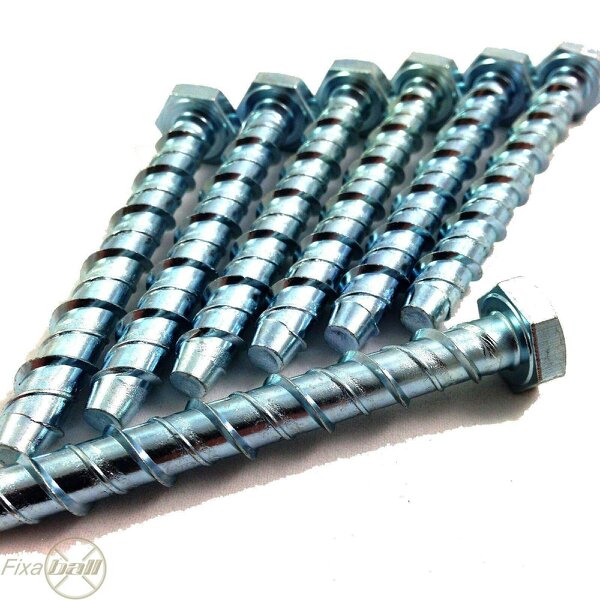

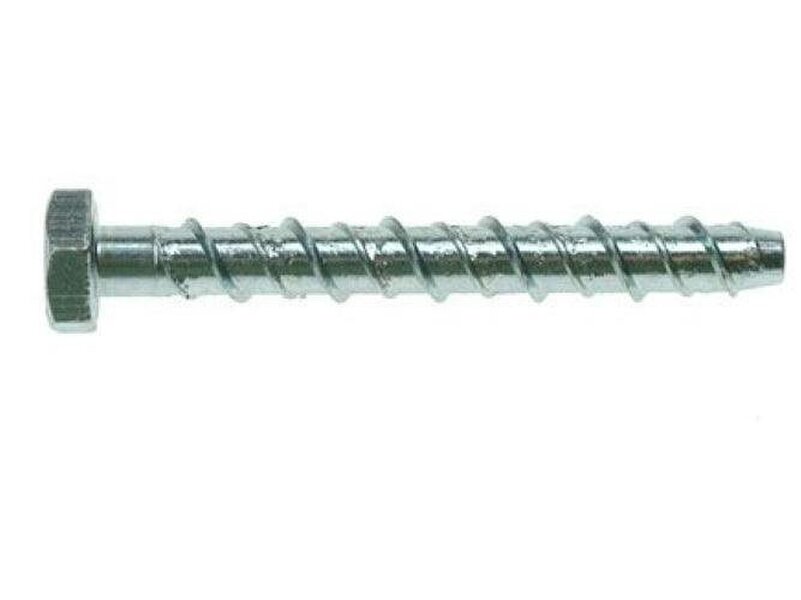

Fixaball M12 Hex Concrete Anchor Screw Self Tapping High Tensile BZP

For medium-duty anchoring in masonry materials, the Fixaball M12 JCP Anker concrete anchor screw uses a self-tapping thread and hexagon head for direct fixing into concrete, brick, stone, wood and concrete block. This zinc plated anchor is a non-expansion fixing, helping to avoid stress in the base material during installation.

The concave thread form creates its own thread in the substrate for low torque installation and pull-out resistance, while also allowing adjustment or removal after fitting. A 12mm shank fits a 12mm hole, with a total thread diameter of 14mm. Available in a choice of lengths, it is installed using a 12mm masonry drill bit and a 19mm socket.

Available options

• 12mm x 60mm
• 12mm x 75mm
• 12mm x 100mm
• 12mm x 130mm
• 12mm x 150mm

Key features

• Diameter: 12mm shank with 14mm self-tapping thread
• Material and finish: zinc plated
• Hexagon head
• Self-tapping concave thread
• Non-expansion through fixing
• Suitable for concrete, brick, stone, wood and concrete block

Specifications

• Masonry drill bit size: 12mm
• Socket size: 19mm
• Over-drill hole depth by 10/20mm

Sizing

• 12mm x 60mm
• 12mm x 75mm
• 12mm x 100mm
• 12mm x 130mm
• 12mm x 150mm

Safety information

• Do not apply stress or load to the concrete screws until the concrete has fully cured.
• Use an additional washer to spread the load of the fixing.

Rackhams Reference : YRIIR3ZYT1
