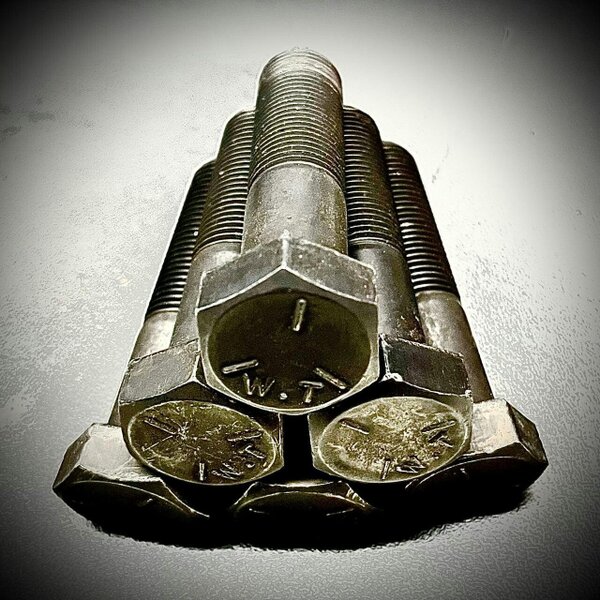

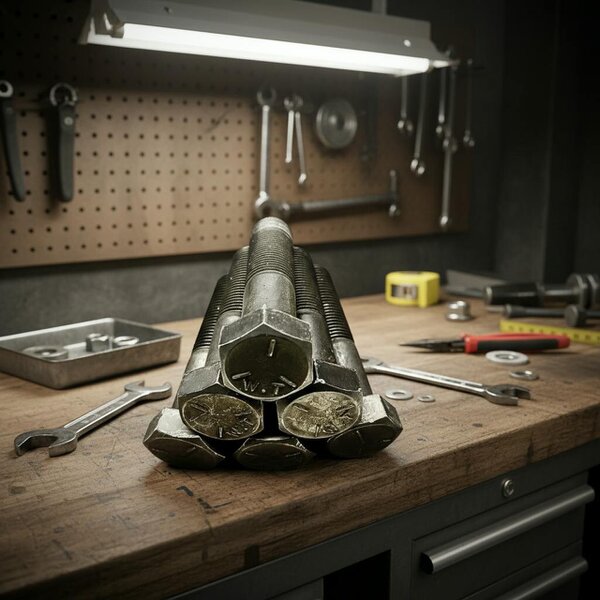

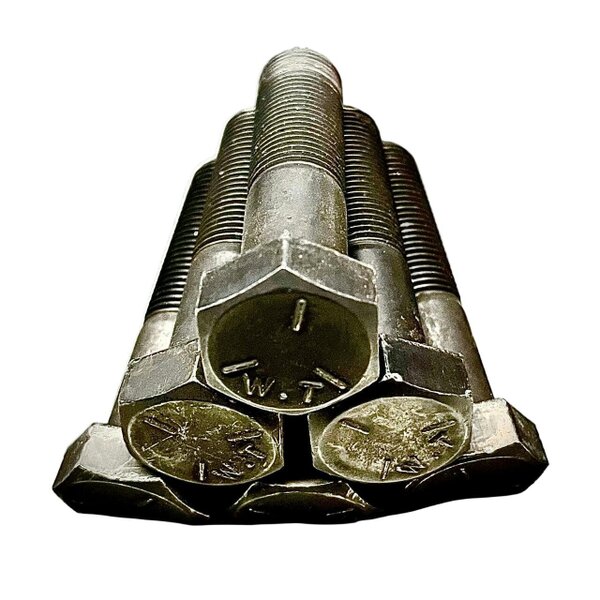

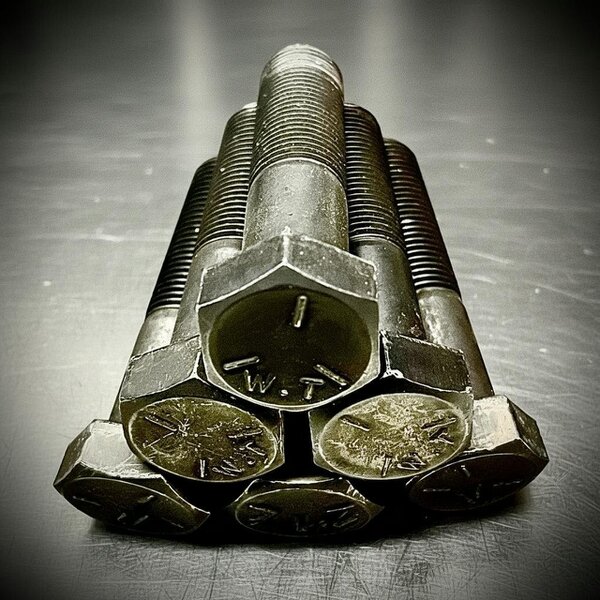

Fixaball UNF 3/4" Hex Bolt Set Screw High Tensile Self Colour Black Under 7"

For UNF fastening applications, this Fixaball range covers 3/4" hex sets and hex bolts in self-colour black high tensile grade 5, comparable with metric 8.8. All options feature a 3/4" UNF thread with 16 T.P.I and are offered in both fully threaded and partially threaded forms.

Fully threaded hex set screws are available up to and including 2 1/2", while partially threaded hex bolts are available from 2 3/4" up to and including 7". These fasteners are intended for use with a nut and washer where a hexagon head fixing is required.

Key features

• Thread size: 3/4" UNF
• Thread pitch: 16 T.P.I
• Finish: self-colour black
• Grade 5 high tensile, comparable with metric 8.8
• Available as fully threaded hex set screws and partially threaded hex bolts

Available options

• 3/4"-16 x 1 1/2" fully threaded hex set screw
• 3/4"-16 x 1 3/4" fully threaded hex set screw
• 3/4"-16 x 2" fully threaded hex set screw
• 3/4"-16 x 2 1/4" fully threaded hex set screw
• 3/4"-16 x 2 1/2" fully threaded hex set screw
• 3/4"-16 x 2 3/4" partially threaded hex bolt
• 3/4"-16 x 3" partially threaded hex bolt
• 3/4"-16 x 3 1/2" partially threaded hex bolt
• 3/4"-16 x 4" partially threaded hex bolt
• 3/4"-16 x 4 1/2" partially threaded hex bolt
• 3/4"-16 x 5" partially threaded hex bolt
• 3/4"-16 x 5 1/2" partially threaded hex bolt
• 3/4"-16 x 6" partially threaded hex bolt
• 3/4"-16 x 7" partially threaded hex bolt

Specifications

• Thread form: Unified National Fine (UNF)
• Thread angle: 60 degree flank angle
• Thread profile: rounded roots and flat crests
• Unified thread standards agreed by standard bodies of Canada, the United Kingdom, and the United States

Rackhams Reference : NMF931SURM
