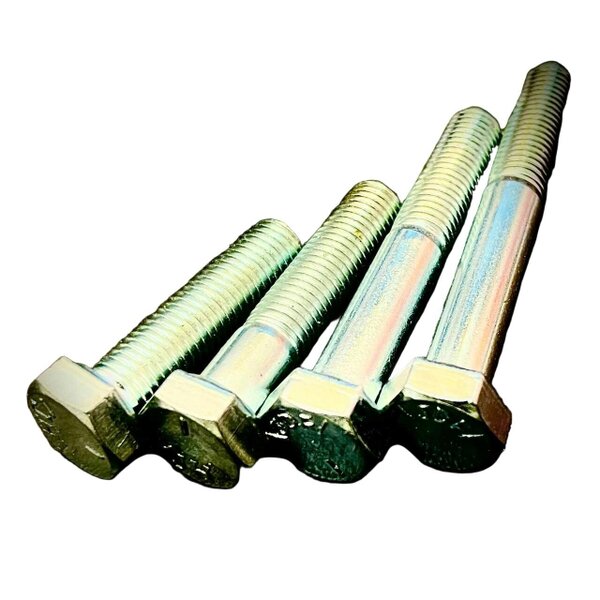

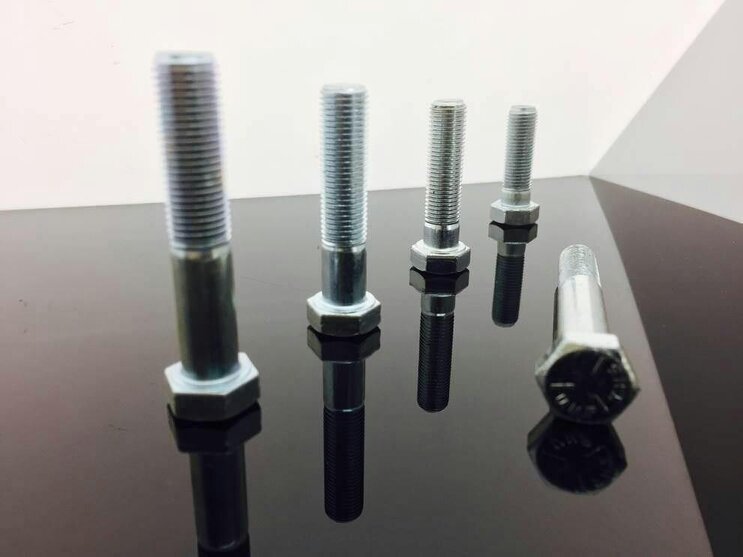

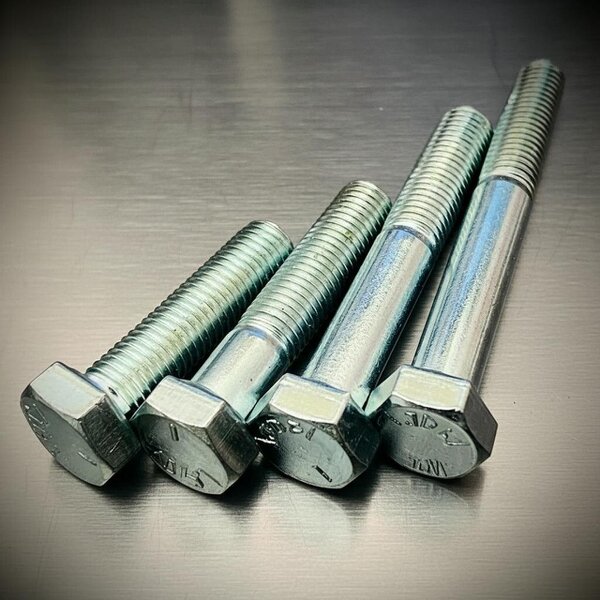

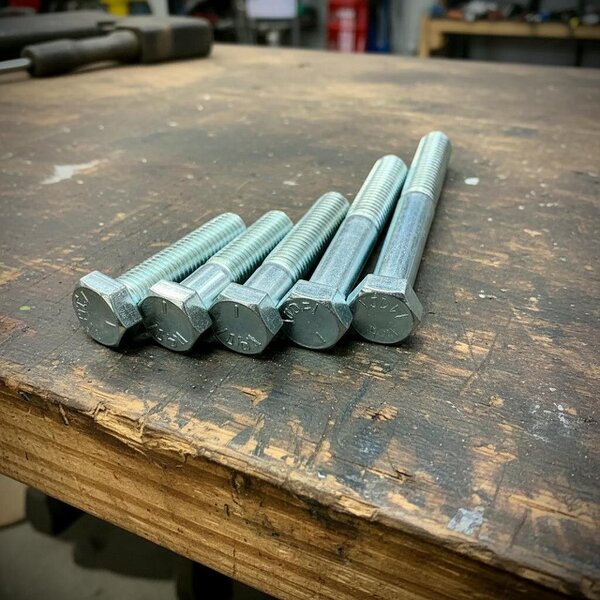

Fixaball UNF 3/4" Hex Bolt Set Screws High Tensile 8.8 Zinc BZP

For UNF fastening applications, these Fixaball 3/4" hexagon head bolts and set screws are produced in high tensile grade 5 steel, comparable with 8.8, with a zinc/BZP/Cr3 finish and DIN 931 specification. The range includes both fully threaded set screws and partially threaded bolts in 3/4", 16 T.P.I.

Fully threaded options are supplied in shorter lengths, while longer sizes are partially threaded. UNF high tensile standard is marked with a "5".

Available options

• 3/4"-16 x 1 1/4" - fully threaded
• 3/4"-16 x 1 1/2" - fully threaded
• 3/4"-16 x 1 3/4" - fully threaded
• 3/4"-16 x 2" - fully threaded
• 3/4"-16 x 2 1/4" - fully threaded
• 3/4"-16 x 2 1/2" - fully threaded
• 3/4"-16 x 2 3/4" - partially threaded
• 3/4"-16 x 3" - partially threaded
• 3/4"-16 x 3 1/4" - partially threaded
• 3/4"-16 x 3 1/2" - partially threaded
• 3/4"-16 x 4" - partially threaded
• 3/4"-16 x 4 1/2" - partially threaded
• 3/4"-16 x 5" - partially threaded
• 3/4"-16 x 5 1/2" - partially threaded
• 3/4"-16 x 6" - partially threaded

Key features

• Thread size: 3/4", 16 T.P.I.
• High tensile grade 5 steel, comparable with 8.8
• Zinc / BZP / Cr3 finish
• DIN 931
• Hexagon head
• UNF thread form
• Available as fully threaded set screws or partially threaded bolts

Sizing

• 3/4"-16 x 1 1/4"
• 3/4"-16 x 1 1/2"
• 3/4"-16 x 1 3/4"
• 3/4"-16 x 2"
• 3/4"-16 x 2 1/4"
• 3/4"-16 x 2 1/2"
• 3/4"-16 x 2 3/4"
• 3/4"-16 x 3"
• 3/4"-16 x 3 1/4"
• 3/4"-16 x 3 1/2"
• 3/4"-16 x 4"
• 3/4"-16 x 4 1/2"
• 3/4"-16 x 5"
• 3/4"-16 x 5 1/2"
• 3/4"-16 x 6"

Rackhams Reference : C1C7MML4HZ
