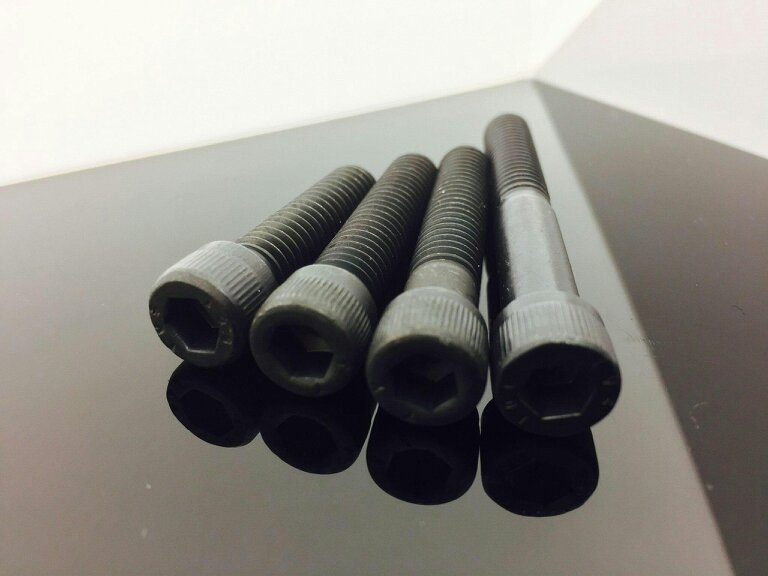

Fixaball UNF 3/4" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

For fine-pitch fastening applications, this Fixaball socket cap screw features a 3/4" UNF thread with 16 T. P. I. Manufactured in high tensile steel to grade 12.9, it has a self-colour finish and a hex socket cap head form.

It conforms to DIN 912, ISO 4762, BS 2470 and ASME/ ANSI B18. 3 1960 Series. The range includes fully threaded and partially threaded options across multiple lengths.

Key features

• 3/4" UNF thread
• 16 T. P. I. fine pitch
• High tensile steel
• Grade 12.9
• Self-colour finish
• Allen hex socket cap head
• Conforms to DIN 912, ISO 4762, BS 2470 and ASME/ ANSI B18. 3 1960 Series

Specifications

• Head diameter max: 1. 00
• Shank diameter max: 0. 75
• Head height max: 0. 75
• Hex key size nom: 9/16
• Unified National Fine (UNF) thread form
• 60 degree flank angle rounded roots and flat crests

Available options

• 3/4"-16x1 1/4", fully threaded
• 3/4"-16x1 1/2", fully threaded
• 3/4"-16x1 3/4", fully threaded
• 3/4"-16x2", fully threaded
• 3/4"-16x2 1/4", fully threaded
• 3/4"-16x2 1/2", fully threaded
• 3/4"-16x2 3/4", fully threaded
• 3/4"-16x3", partially threaded
• 3/4"-16x3 1/4", partially threaded
• 3/4"-16x3 1/2", partially threaded
• 3/4"-16x4", partially threaded
• 3/4"-16x4 1/2", partially threaded
• 3/4"-16x5", partially threaded
• 3/4"-16x5 1/2", partially threaded
• 3/4"-16x7", partially threaded
• 3/4"-16x8", partially threaded

Safety information

• Self-colour high tensile steel has low corrosion resistance without further surface treatment.
• Typical application: no exposure to moisture.
• Typical application: often greased or oiled.

Rackhams Reference : R49ZDKFDRT
