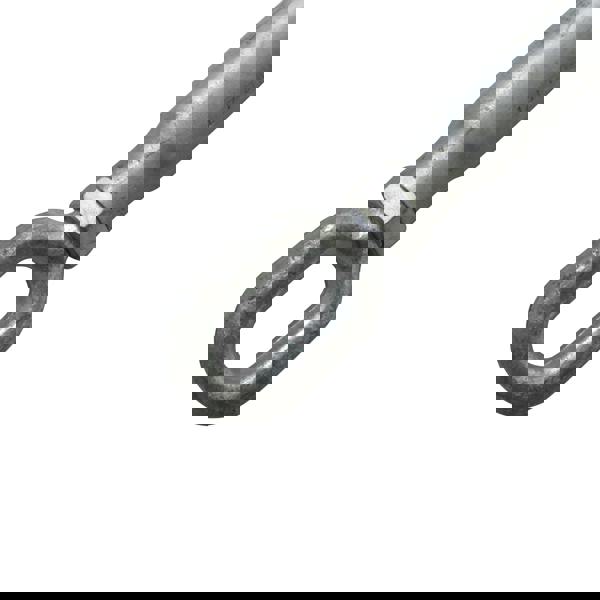

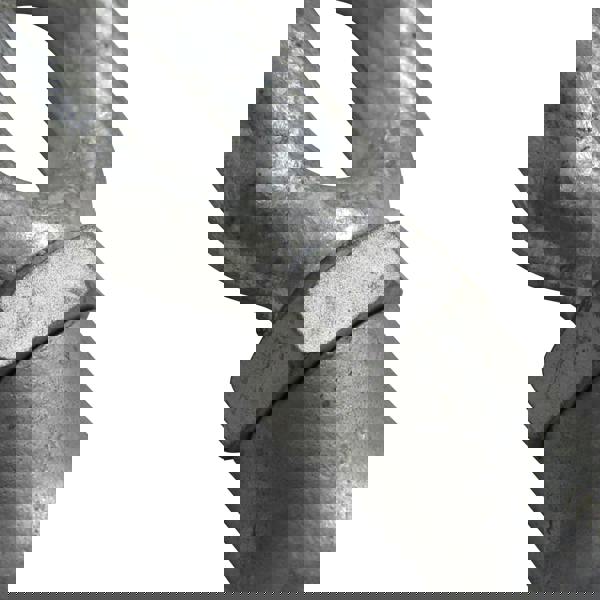

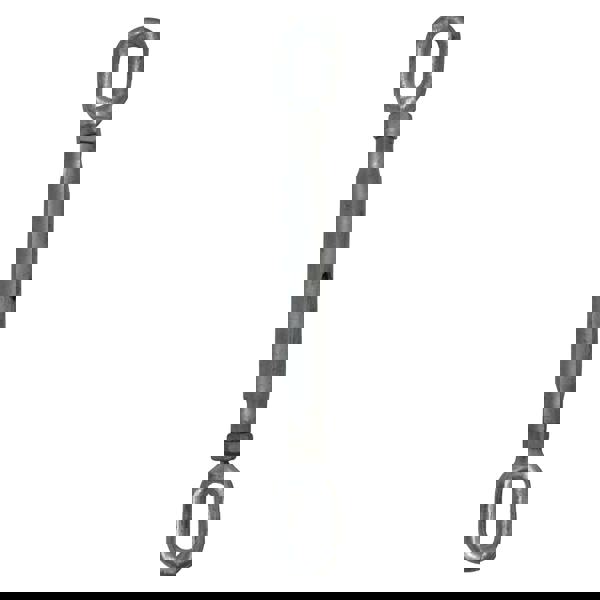

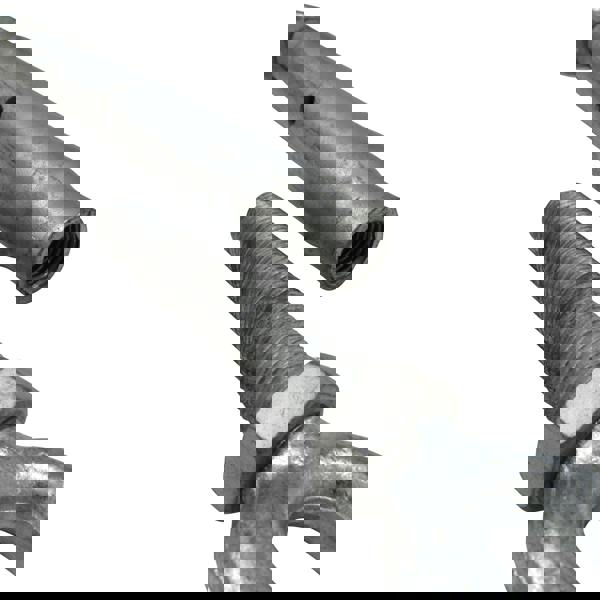

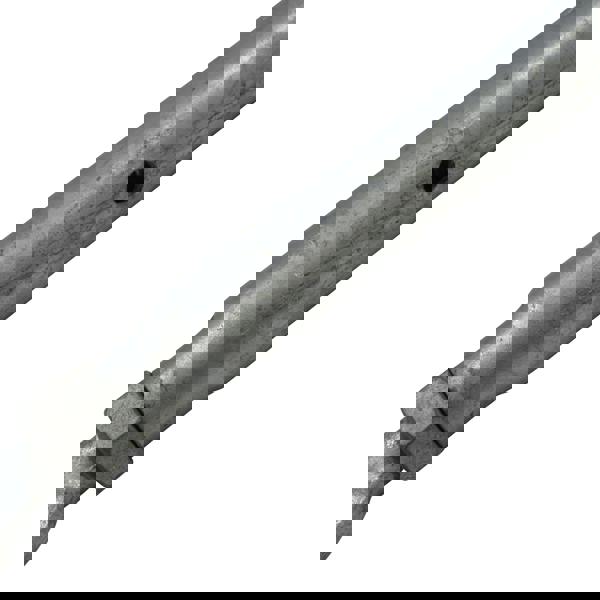

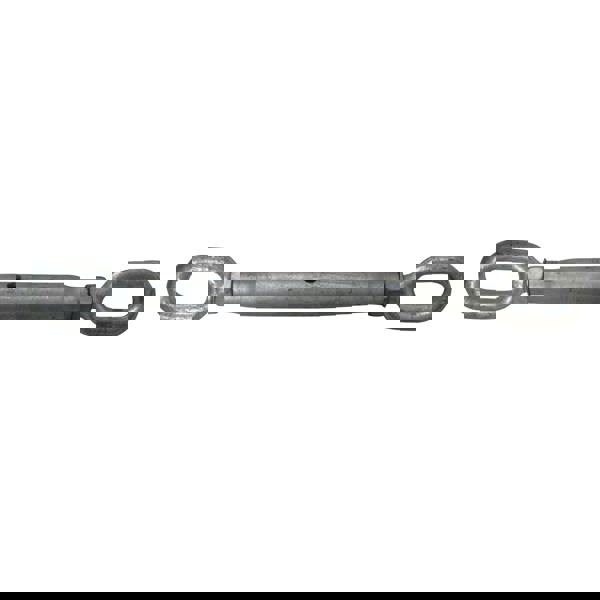

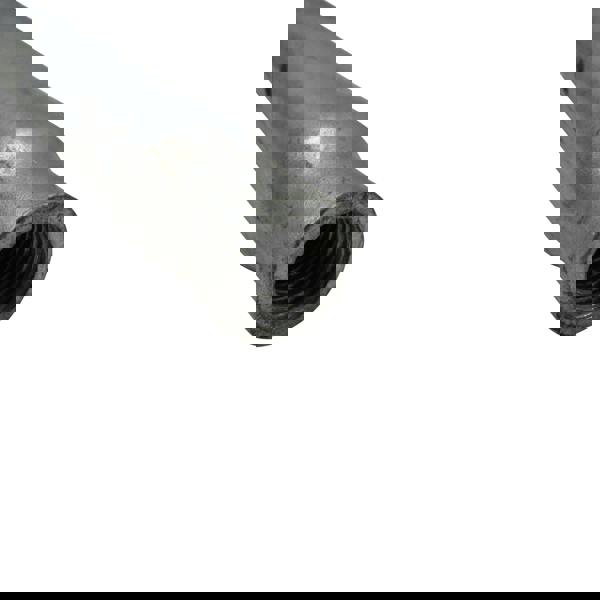

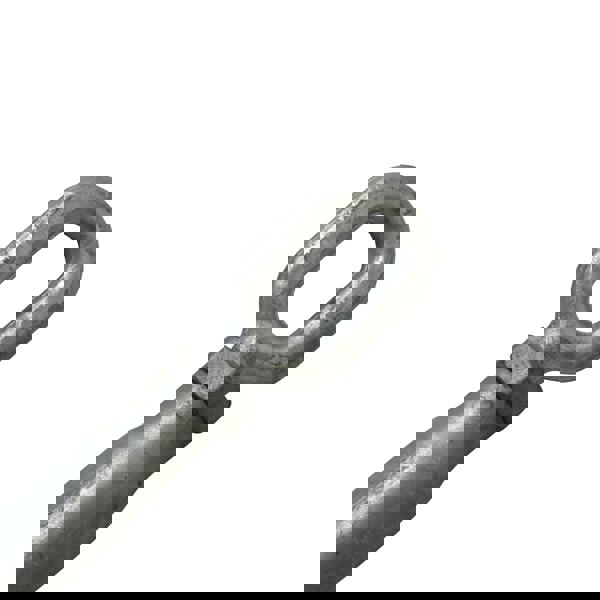

Galvanised Rigging Screw Turnbuckle Eye & Eye

Designed for controlled tensioning, the SecureFix Direct Eye and Eye Galvanised Rigging Screw is a closed body turnbuckle for wire rope setups where a secure, adjustable connection is required. Suitable for a wide range of applications, it can be used for projects such as creating handrails or supporting rigging on boats, helping you add tension quickly and efficiently.

Made from galvanised steel, this rigging screw is built for strength and durability, with a galvanised finish that offers protection against rusting and corrosion for a longer working life. Eyes at each end are designed to make attachment straightforward, allowing your wire rope to connect to a shackle or other connector with ease.

Key features

• Closed body turnbuckle design for adding tension to wire rope
• Eye and eye end fittings for quick attachment to a shackle or connector
• Material: galvanised steel
• Galvanised finish helps protect against rusting and corrosion
• Available in sizes from 1/4" up to 2 1/2" in diameter

Sizing

• 1 1/4" (6MM): Body length 102MM; Eye length 15MM; Eye width 8MM; Eye material thickness 6MM; Thread to eye shoulder length 59MM
• 5/16" (8MM): Body length 125MM; Eye length 19MM; Eye width 10MM; Eye material thickness 7MM; Thread to eye shoulder length 72MM
• 3/8" (10MM): Body length 152MM; Eye length 25MM; Eye width 11MM; Eye material thickness 8MM; Thread to eye shoulder length 86MM
• 1/2" (12MM): Body length 229MM; Eye length 30MM; Eye width 14MM; Eye material thickness 11MM; Thread to eye shoulder length 125MM
• 5/8" (16MM): Body length 229MM; Eye length 41MM; Eye width 16MM; Eye material thickness 14MM; Thread to eye shoulder length 125MM
• 3/4" (20MM): Body length 229MM; Eye length 51MM; Eye width 22MM; Eye material thickness 16MM; Thread to eye shoulder length 126MM
• 7/8" (22MM): Body length 305MM; Eye length 51MM; Eye width 22MM; Eye material thickness 16MM; Thread to eye shoulder length 164MM
• 1" (25MM): Body length 356MM; Eye length 57MM; Eye width 25MM; Eye material thickness 19MM; Thread to eye shoulder length 191MM
• 1 1/4" (32MM): Body length 381MM; Eye length 65MM; Eye width 32MM; Eye material thickness 22MM; Thread to eye shoulder length 204MM
• 1 1/2" (38MM): Body length 406MM; Eye length 75MM; Eye width 38MM; Eye material thickness 25MM; Thread to eye shoulder length 218MM
• 1 3/4" (44MM): Body length 406MM; Eye length 89MM; Eye width 41MM; Eye material thickness 28. 5MM; Thread to eye shoulder length 220MM
• 2" (52MM): Body length 406MM; Eye length 101MM; Eye width 44. 5MM; Eye material thickness 35MM; Thread to eye shoulder length 223MM

Please note: Colours may appear slightly different in person than on your screen.
