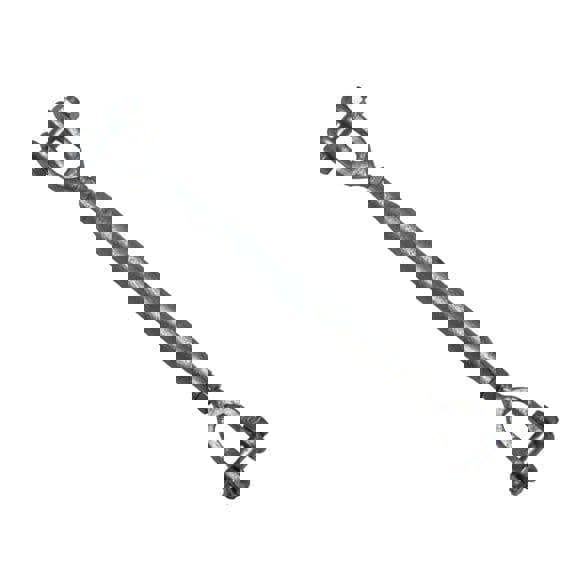

Galvanised Straining Rigging Screw Jaw Jaw 6MM (Closed Body Turnbuckle Wire Rope Tensioner)

Designed for practical tensioning tasks, the Galvanised Jaw & Jaw Rigging Screw is a jaw-ended rigging screw suited to adding tension to wire rope across a wide range of settings. It’s an ideal choice for engineering and construction projects where controlled adjustment is required, and it also lends itself to on-board boat use. Within the caravan industry, it can be used for tethering your vehicle.

Available in a broad selection of sizes from 6MM up to 64MM, this galvanised rigging screw offers flexibility for different applications and installation requirements.

Key features

• Galvanised rigging screw with jaw & jaw ends
• Suitable for adding tension to wire rope
• Ideal for engineering and construction applications
• Suitable for use on board boats
• Suitable for caravan industry vehicle tethering
• Sizes available from 6MM to 64MM

Sizing

• 6MM: A 6MM, B 105MM, C 144MM, D 5.7MM, E 8MM, F 225MM
• 8MM: A 8MM, B 118MM, C 168MM, D 8MM, E 11MM, F 250MM
• 10MM: A 10MM, B 137MM, C 192MM, D 9MM, E 12MM, F 300MM
• 12MM: A 12MM, B 167MM, C 245MM, D 12MM, E 14MM, F 375MM
• 16MM: A 16MM, B 213MM, C 325MM, D 16MM, E 17MM, F 480MM
• 20MM: A 20MM, B 235MM, C 435MM, D 24.5MM, E 25MM, F 655MM
• 22MM: A 22MM, B 300MM, C 510MM, D 24.5MM, E 25MM, F 790MM
• 25MM: A 25MM, B 310MM, C 540MM, D 31MM, E 31.5MM, F 800MM
• 32MM: A 32MM, B 380MM, C 725MM, D 37MM, E 39MM, F 1100MM
• 38MM: A 38MM, B 405MM, C 850MM, D 47MM, E 49MM, F 1200MM
• 44MM: A 44MM, B 405MM, C 875MM, D 54MM, E 54MM, F 1270MM
• 52MM: A 52MM, B 420MM, C 890MM, D 63MM, E 63MM, F 1350MM
• 64MM: A 64MM, B 410MM, C 910MM, D 64MM, E 64MM, F 1370MM

Rackhams Reference : VJF6CF452N
