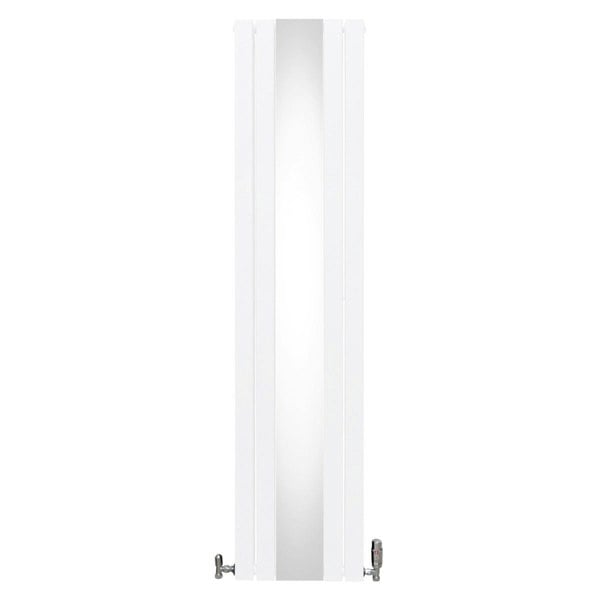

Monstershop Flat Mirror Radiator & Valves - 1800mm x 425mm - White

Bring a clean, contemporary look to your heating with the MonsterShop Flat Mirror Radiator & Valves. Finished in white with a central mirror, this vertical flat panel radiator pairs a streamlined profile with practical detailing for modern interiors.

Made from 1.5mm carbon steel and coated in a triple layered powder finish, it measures 1800mm high by 425mm wide, with a 4-column design and 60mm individual tube size. Heat output is rated at 6012 BTU @ 60 (4734 BTU @ 50). The mirror measures 1800mm x 145mm with a 5mm thickness, and is supported by a steel plate on the back. Supplied with a chrome-finished angled thermostatic valve set, temperature control runs from 6–28 degrees via a rotary knob, with lockshield functionality for water flow regulation.

Key features

• Vertical flat panel radiator with central mirror
• White finish with triple layered powder coating
• 4-column construction with 60mm individual tube size
• Heat output: 6012 BTU @ 60 (4734 BTU @ 50)
• Standard 0.5" BSP inlet/outlet size
• Compatible with all UK & EU heating systems

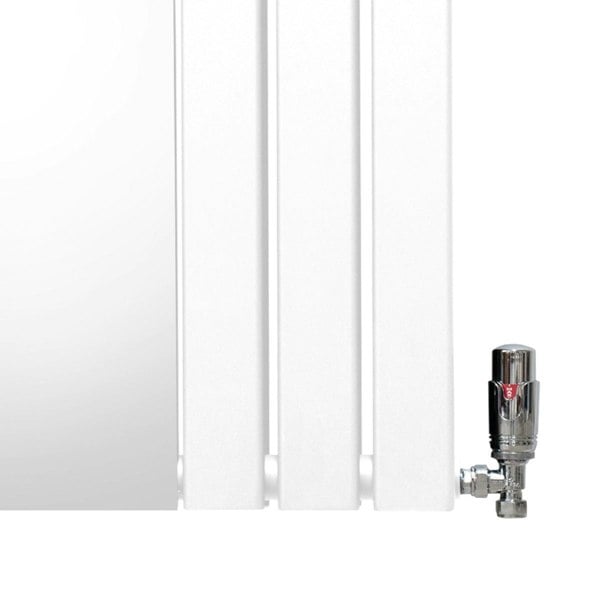

• Includes angled brass thermostatic valve set in polished chrome
• Supplied with brackets, fixing kit and flexible cleaning brush
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Colour: White
• Weight: 36.1kg
• Height: 1800mm / 180cm / 70.9”
• Width: 425mm / 42.5cm / 16.7”
• Radiator depth: 58mm / 5.8cm / 2.3”
• Depth with bracket: 93mm / 9.3cm / 3.7”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual tube size: 60mm / 6cm / 2.4”
• Number of columns: 4
• BTU rating @ 50: 4734
• BTU rating @ 60: 6012
• Inlets/outlets size: Standard 0.5" BSP bore
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Mirror

• Mirror dimensions: 1800mm x 145mm
• Mirror thickness: 5mm

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat panel mirror radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
